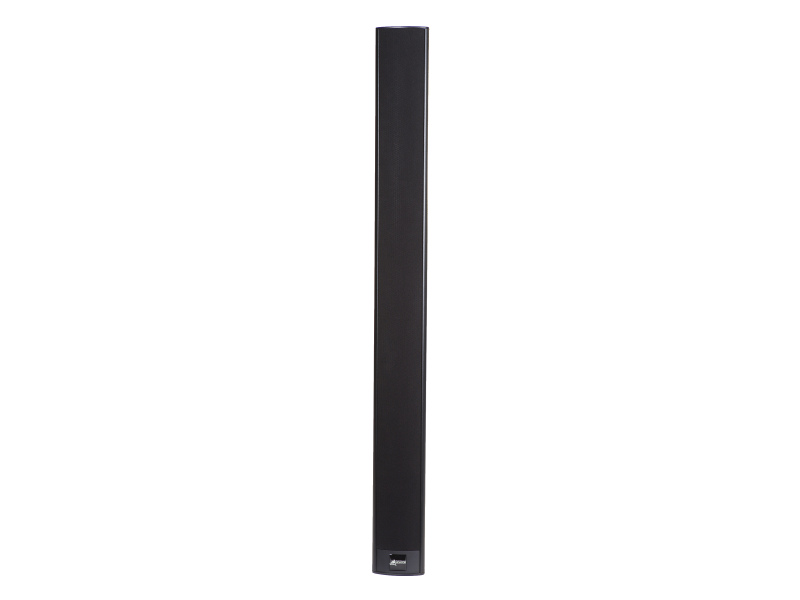

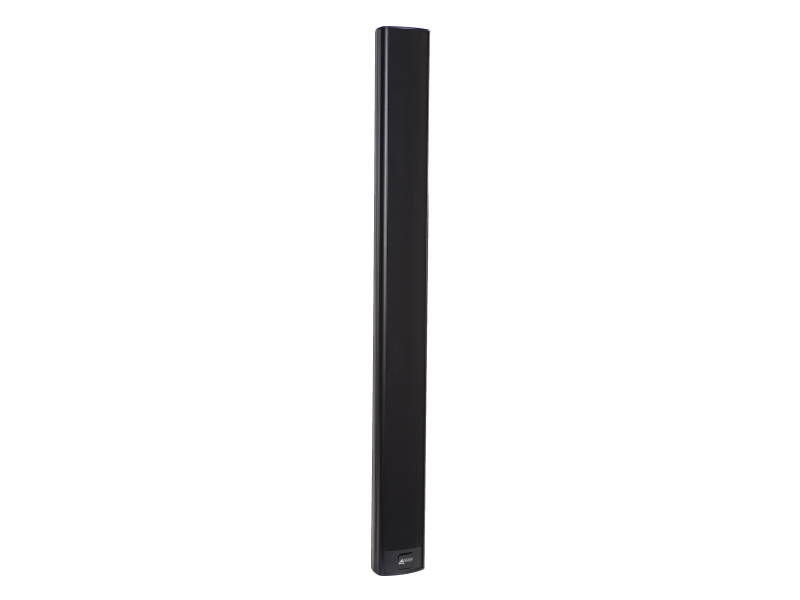

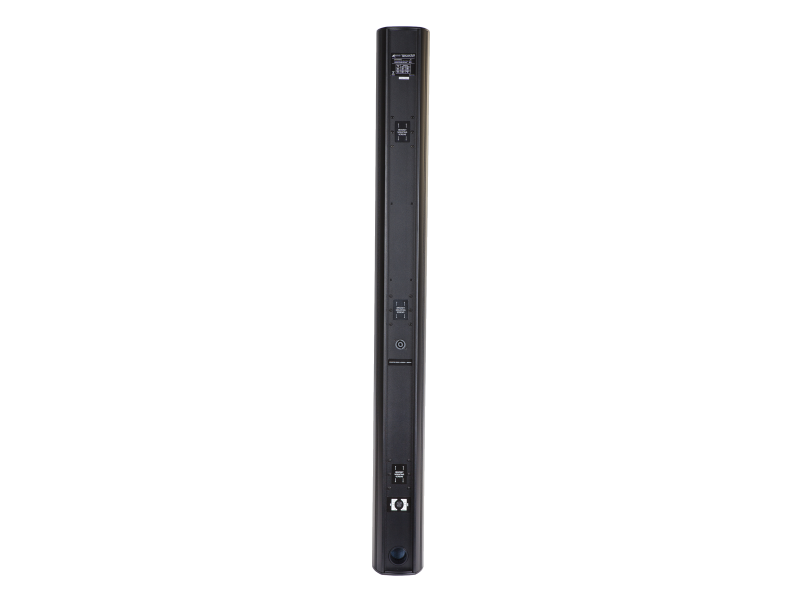

VL8B

Column Line Array
Black

The advantages of column array technology in challenging acoustic environments has recently become better understood. Issues of low speech intelligibility, the constant threat of feedback and fast diminishing SPL level have always been hampered by the traditional driver & horn box. The release of the Australian Monitor VL8 now allows you to address audio reinforcement in these difficult spaces.

Quantity must be 1 or more

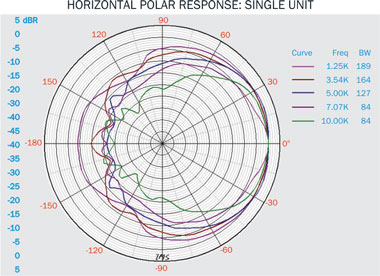

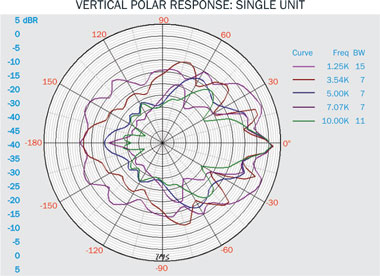

  • • 110°H x 20°V Dispersion pattern
    • Frequency response 180 Hz – 20 kHz
    • Crossover frequency 1800 Hz
    • Maximum SPL is 119 dB continuous , 125 dB peak.
    • Power tappings of 7.5W (70 Volt), 15 W, 30 W, 60W (100V) and 4 ohm
    • 300 watts RMS into 4 ohms

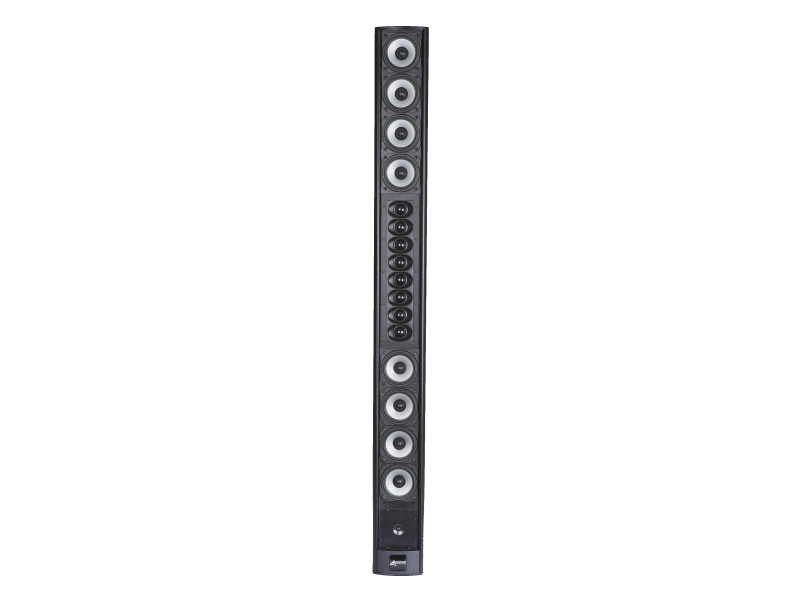

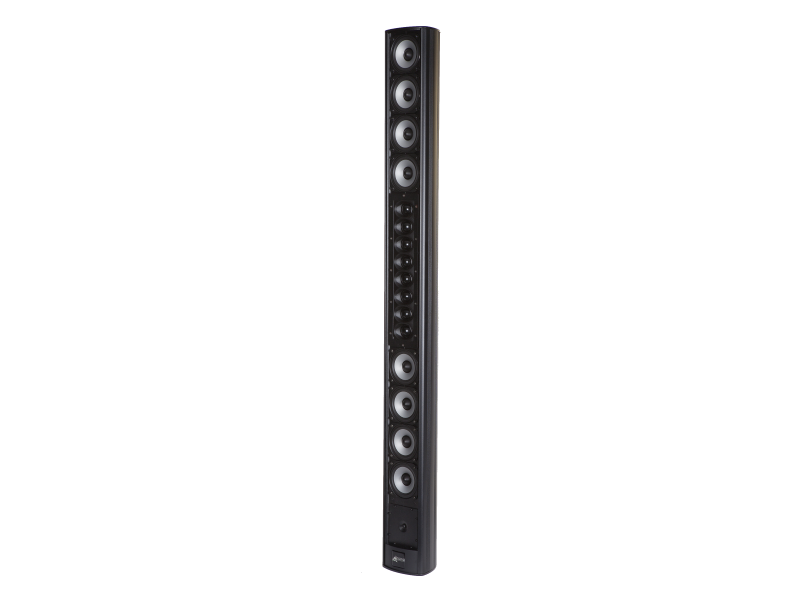

    • Innovative waveguide featuring 8 identical 1" tweeters
    • 8 robust 3" midrange drivers

  • Form Factor Column Max Continuous Power 300W
    Tappings 60W-30W-15W-7.5W-4 Ohm Max Program Power 600W
    IP Rating No Max Peak Power 1200W
    EASE Model No SPL 1W/1m 94dB
    Powered Passive Max SPL RMS 119dB
    Driver Diameter 3" x 8 & 1" x 8 Max SPL Peak 125dB
    Colour Black Frequency Response (-3dB) 180Hz - 20kHz
    Warranty 5 years Dispersion 110 x 20deg
    Product Dimensions
    (W x D x H)    		 125mm x 110mm x 1264mm Shipping Dimensions
    (W x D x H)    		 174mm x 174mm x 1325mm
    Net Weight 10.3 Kg Shipping Weight 12.2 Kg
    GTIN EAN 9323383013865
  • ​ VL8BUB
     VL8 Wall Mount U Bracket
    Black
    ​ VL8BAB
     VL8 Wall Mount Angle Bracket
    Black
    ​ VL8BPB
     VL8 Pole Mount Bracket
    Black

  • VL8B Manual

  • Speaker SPL and Power Calculator
