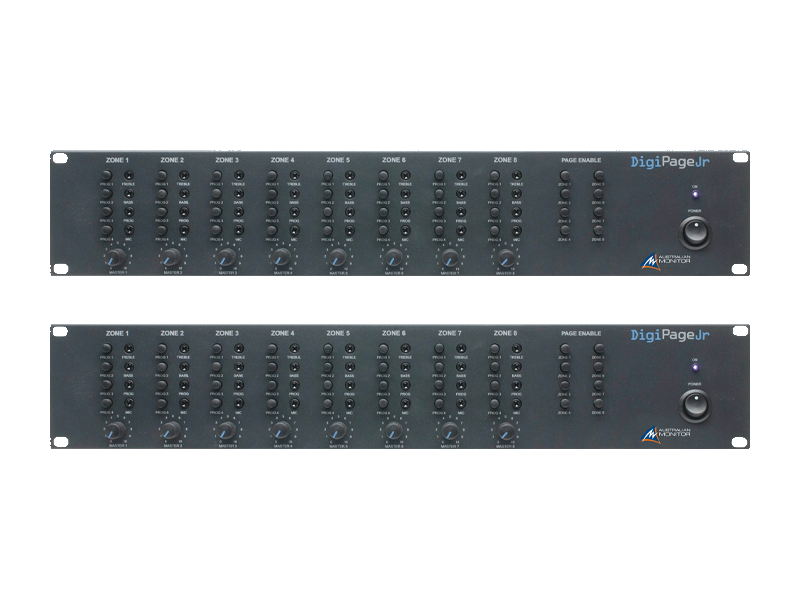

DPJR Dual Front
DPJR Rear

DIGIPAGE JUNIOR (DUAL)

Zone paging and BGM system
16 mono zone outputs

The DigiPage Junior starts as an 8 zone paging system and can be expanded to 16 zones.

The DigiPage Junior is packed with excellent features and is a very cost effective solution for those applications who have neither the budget or the need for the more elaborate features of the DigiPage.

Quantity must be 1 or more


  • • 8 balanced mic/ Dual RCA line inputs
    • Capacity for up to 32 remote paging microphones. (Can be increased using remote power supplies)
    • Emergency input
    • 4 CAT5 ports which are used to connect to remote zone paging microphones
    • Alert, Evacuation and Pre Announce Chimes
    • Priority Ducking Circuitry
    • Easy front panel input selection
    • Page ‘Enable’ per zone allows users to remove the ability to page into certain zones in case that zone does not want to be interrupted. This is generally due to a conference or seminar being held in that zone
    • One paging microphone can be set to have ultimate priority over other paging microphones
  • Zones 16 Mono Paging Stations Connected 32 (minimum)
    Program Inputs 8 MIC or Line Paging Station P/N DPJR8M or DPJR16M
    Local Inputs No Remote Source Control No
    Tones Yes Mounting 4RU
    Input Voltage 100-240Vac 50-60Hz Warranty 5 years
    Product Dimensions
    (W x D x H)
    482mm x 205.5mm x 88mm Shipping Dimensions
    (W x D x H)
    550mm x 290mm x 197mm
    Net Weight 4.5 Kg Shipping Weight 5.7Kg
    GTIN EAN 9323383010901
  • DPJR8M
    Paging Microphone
    8 zone control
    DPJR16M
    Paging Microphone
    16 zone control
  • DIGIPAGE JUNIOR Brochure

    DIGIPAGE JUNIOR Manual

    DIGIPAGE Paging Extension Application Note
