30W Mixer Amplifier
Small Form Factor, Bluetooth

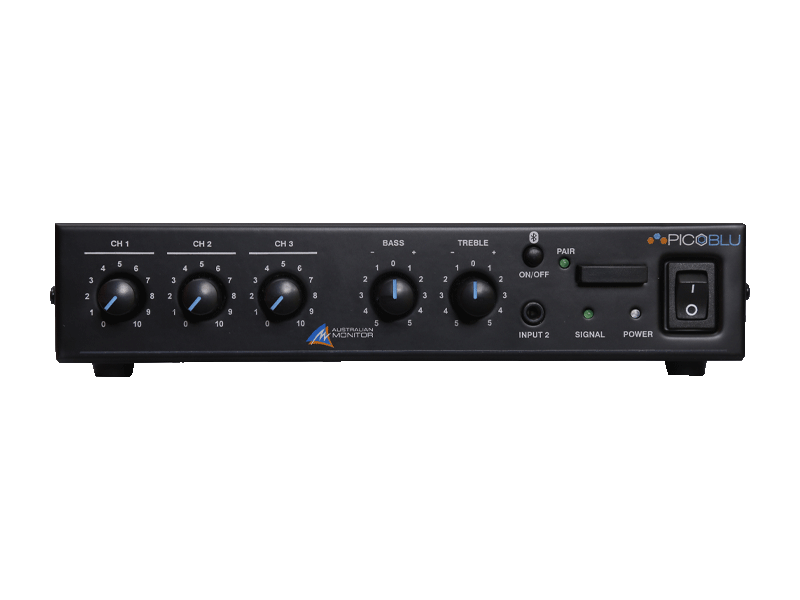

The Australian Monitor PICOBLU® is a small form factor 30W Mixer Amplifier specifically designed for small space applications such as cafes, restaurants, small retail and classrooms.

The PICOBLU® features 3 inputs channels, including microphone, Bluetooth® and 3.5mm input jack options. The 30W integrated power amplifier operates in 4Ω and 100V outputs allowing flexible speaker configurations.

Capable of standalone, rack or under desk mounting, using optional kits, the PICOBLU® can fit any application space with ease.

Quantity must be 1 or more

  • • 30W mixer amplifier
    • 100 volt or 4 ohm output
    • 3 Channel Mixer. Input 1 - MIC/Line, Input 2 - 3.5mm/Line, Input 3 - Bluetooth/Line
    • Bluetooth® 3.0+EDR audio receiver supporting advanced audio distribution profile (A2DP)
    • 3.5mm TRS jack line input
    • External mute contact closure
    • Small form factor
    • Rack or desk mounting kits options. PICO-RMK and PICO-DMK.

    Small Form Factor

    The PICOBLU® is a small form factor mixer amplifier designed to fit in tight spaces or to be concealed under tables or fitted on walls.
    Measuring just 217mm wide, 44mm high and 287mm depth the PICOBLU® can go where it is needed.

    3 Channel Mixer - 6 Input Sources

    The PICOBLU® is a 3 channel mixer but features the flexibility to use up to 6 different input standards.
    Mixer Input 1 can be either a microphone input using the rear XLR input or a line level input using the rear RCA inputs.
    Mixer Input 2 can be either a rear RCA line level input or a front panel 3.5mm input jack.
    Mixer Input 3 can be a rear line level input or a Bluetooth® audio input.

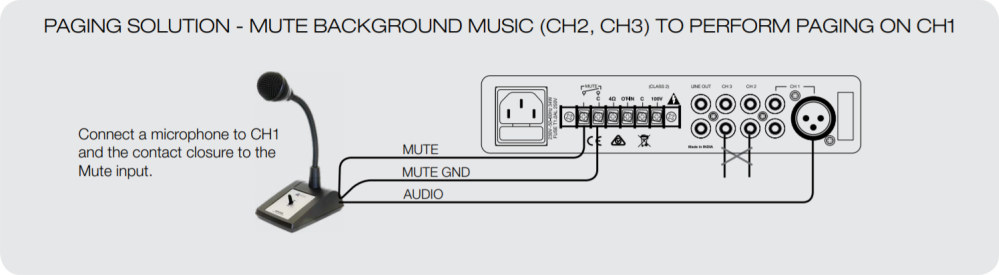

    Mute Contact Closure

    The PICOBLU® features a rear screw terminal contact closure input.
    Simply connect to a paging station/fire panel or other control device to mute input 2 and 3 to make paging or emergency announcements.

    Racking Options

    The PICOBLU® can be rack or desk mounted using the optional PICO-RMK or PICO-DMK mounting kits .

  • Output Power per Channel 30W Frequency Response 104Hz - 20kHz
    Output Mode 4 Ohm-100V THD+N < 0.2%
    Input Channels 1 MIC/Line and 2 Line Signal to Noise Ratio > 85dB
    Input Voltage 230Vac 50Hz Input Sensitivity MIC: 3mV - Line: 405mV
    Mounting 1RU Cooling Fan-assisted
    Warranty 5 years
    Product Dimensions
    (W x D x H)
    217mm x 287mm x 44mm Shipping Dimensions
    (W x D x H)
    315mm x 365mm x 105mm
    Net Weight 3.75 Kg Shipping Weight 4.7 Kg
    GTIN EAN 9323383020030

  • The PIN number is 2626
    Unfortunately no.
    However, once connected to the PICOBLU you can typically rename the connection on the device such as a mobile phone.
    The minimum guaranteed range is 10m.
    Check that the MUTE contact closure is not active.
