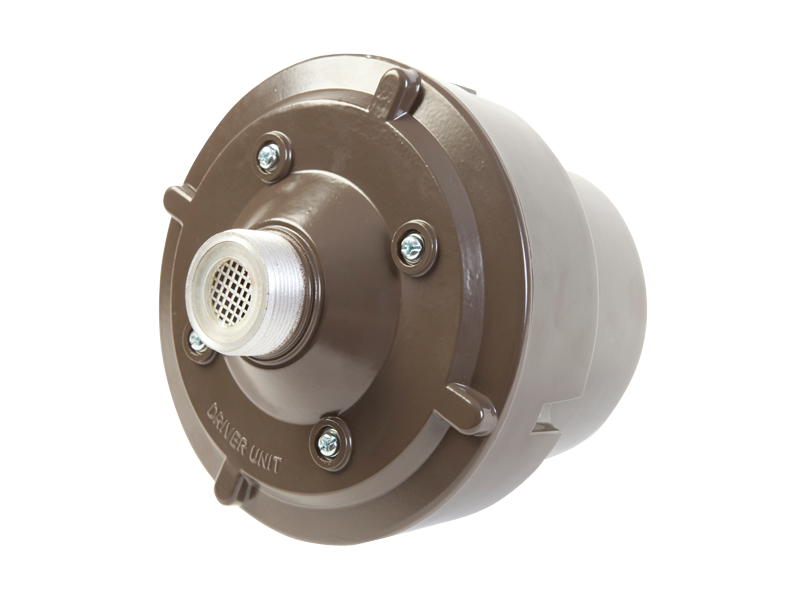

HDT35

Horn Driver
35W, IP66 Rated

Constant voltage 35 watt high output horn driver.

Features
Specifications
Accessories
Downloads
Calculators

• For use with H16 and HK16 horn flares
• 35 watts @ 100V
• Power taps at 4.5, 9, 18 and 35 watts
• 280 Hz – 6800 Hz frequency response
• 108dB SPL (1w/1m)
• ABS and Aluminium construction
• IP66 Rated
• 2.3 kg

Form Factor	Horn	Max Continuous Power	35W
Tappings	35W-18W-9W-4.5W-2.25W	Max Program Power	Unspecified
IP Rating	IP66	Max Peak Power	40W
EASE Model	No	SPL 1W/1m	108dB
Powered	Passive	Max SPL RMS	123.5dB
Driver Diameter	N/A	Max SPL Peak	124dB
Colour	Grey	Frequency Response (-3dB)	280Hz - 6.8kHz
Warranty	5 years	Dispersion	N/A

Product Dimensions (W x D x H)		Shipping Dimensions (W x D x H)
Net Weight	2.3 Kg	Shipping Weight
		GTIN EAN	9323383010987

	H16 Horn Flare Round flare for use with HDT35 or HDT60 horn drivers
	HK16 Horn Flare Rectangular flare for use with HDT35 or HDT60 horn drivers

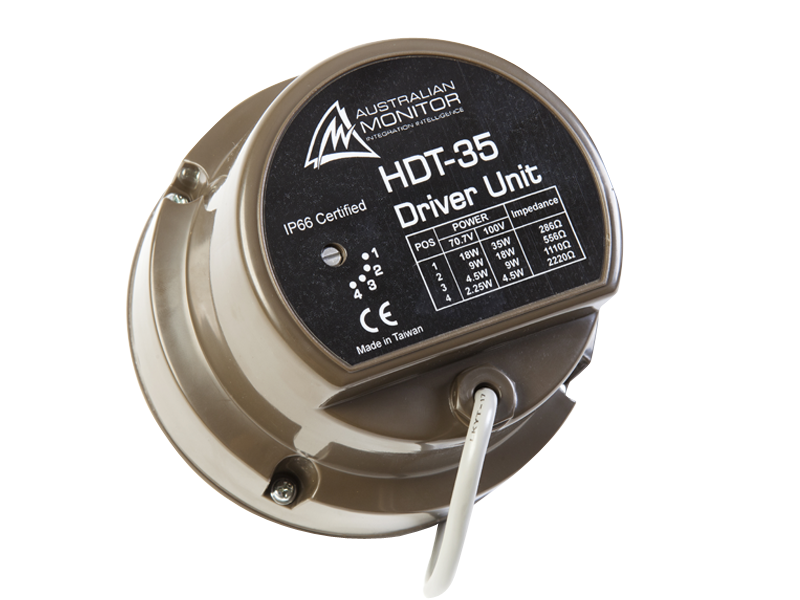

HDT35 Rear Panel
Speaker SPL and Power Calculator
