HDT60

Horn Driver
60W, IP66 Rated

Constant voltage 60 watt high output horn driver.

Features
Specifications
Accessories
Downloads
Calculators

• For use with H16 and HK16 horn flares
• 60 watts @ 100v
• Power taps at 7.5, 15, 30 and 60 watts
• 200 Hz – 6800 Hz frequency response
• 110dB SPL (1w/1m)
• ABS and Aluminium construction
• IP66 Rated
• 2.4 kg

Form Factor	Horn	Max Continuous Power	60W
Tappings	60W-30W-15W-7.5W-3.75W	Max Program Power	Unspecified
IP Rating	IP66	Max Peak Power	69W
EASE Model	No	SPL 1W/1m	110dB
Powered	Passive	Max SPL RMS	128dB
Driver Diameter	N/A	Max SPL Peak	128.5dB
Colour	Grey	Frequency Response (-3dB)	200Hz - 6.8kHz
Warranty	5 years	Dispersion	N/A

Product Dimensions (W x D x H)		Shipping Dimensions (W x D x H)
Net Weight	2.4 Kg	Shipping Weight
		GTIN EAN	9323383012189

	H16 Horn Flare Round flare for use with HDT35 or HDT60 horn drivers
	HK16 Horn Flare Rectangular flare for use with HDT35 or HDT60 horn drivers

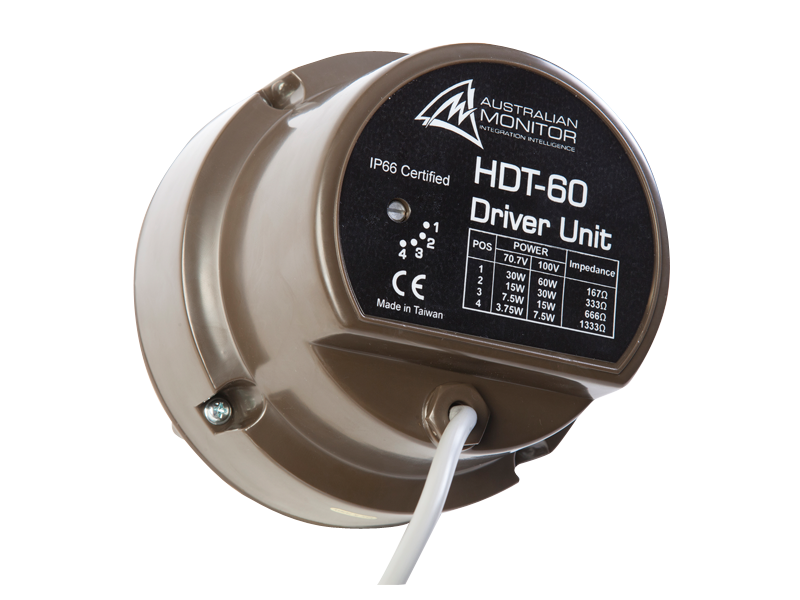

HDT60 Rear Panel
