QF8CS

Ceiling Speaker
15W 8 inch dual cone

The Australian Monitor QuickFit range of ceiling speakers has been an industry staple for over a decade. This refreshed series of QuickFit dual cone flush mount ceiling speakers are now better than ever. Offering improved voicing of these great products, refined toggle mounting system, and including all the information you need at your fingertips with a new cut out template providing wiring, wattage tapping and cut out information. Together these new and improved features provide an even better installation experience.

The QuickFit dual cone series QF5CS, QF6CS, QF6WRC, QF8CS and QF8CSB provide cost effective solutions for a myriad of commercial audio applications such as education, shopping centres, common areas, RSLs, clubs, restaurants, fire evacuation systems and many more applications that requires a reliable high quality affordable commercial ceiling speaker product. Each model also features a supervisory capacitor as standard to allow for evacuation system integration.

EASE® GLL files simulation files are available for QuickFit ceiling speakers. EASE® is a registered trademark of AFMG Technologies GmbH

Quantity must be 1 or more


  • • 8 inch dual cone driver
    • QuickFit white ABS plastic baffle and powder coated steel grill
    • 1.87, 3.75, 7.5, 15 watt taps @ 100V
    • Evac. capacitor as standard


  • Form Factor Ceiling Max Continuous Power 15W
    Tappings 15W-7.5W-3.75W-1.87W-0.93W Max Program Power 30W
    IP Rating No Max Peak Power 60W
    EASE Model Yes SPL 1W/1m 90dB
    Powered Passive Max SPL RMS 102dB
    Driver Diameter 8" Max SPL Peak 108dB

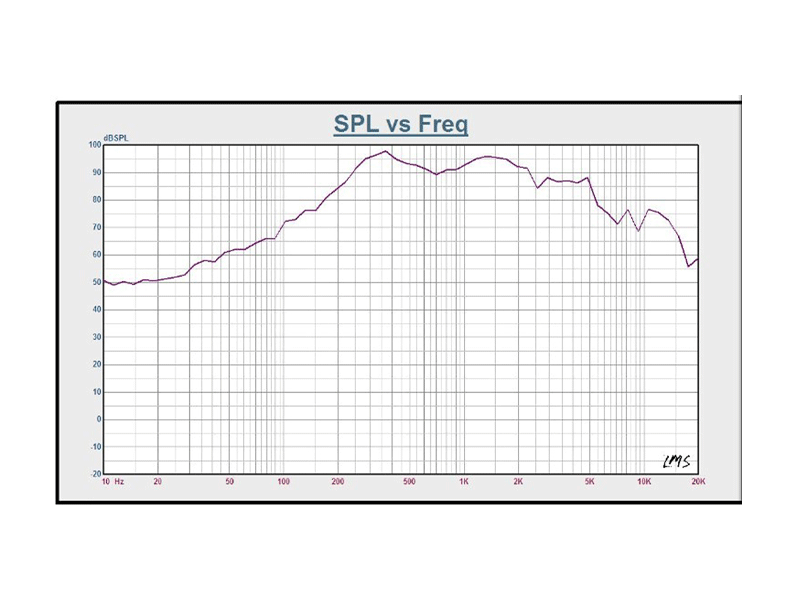

    Colour White (RAL 9010) Frequency Response (-3dB) 80Hz - 20kHz

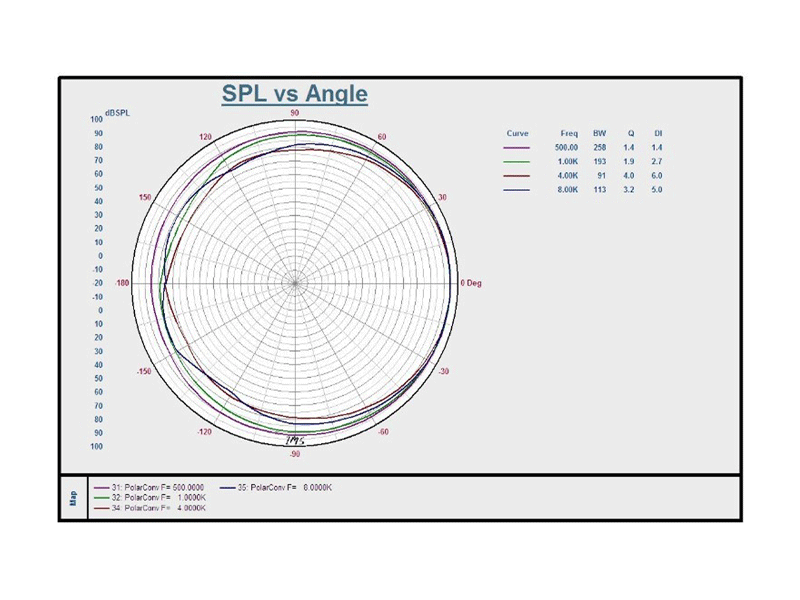

    Warranty 5 years Dispersion 100deg
    Product Dimensions
    (W x D x H)
    280mm x 80mm Shipping Dimensions
    (W x D x H)
    105mm x 280mm x 285mm
    Net Weight 1.4 Kg Shipping Weight 1.5 Kg
    GTIN EAN 9323383019409
