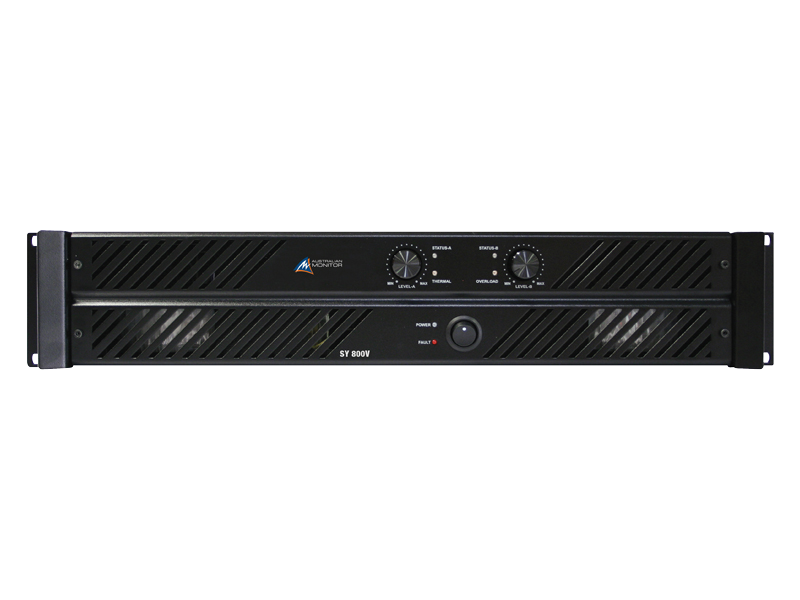

SY800V Front

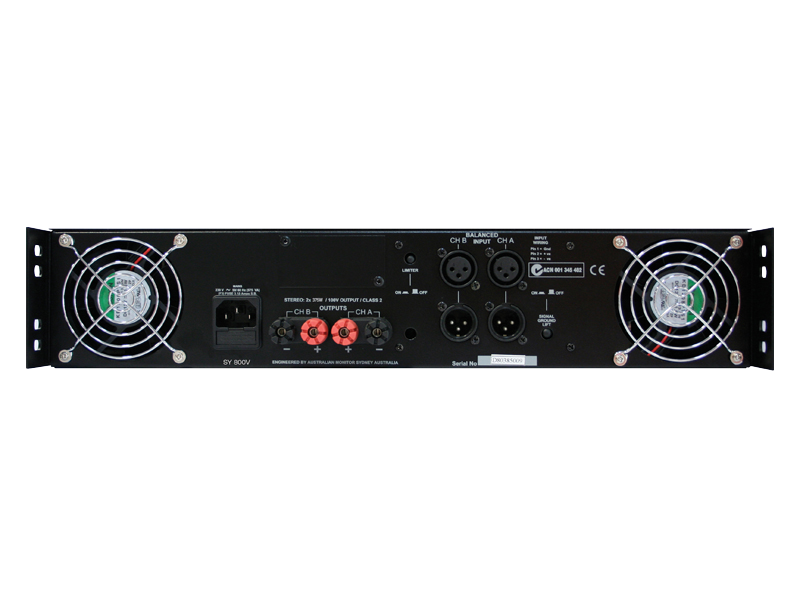

SY800V Rear

SY800V

2 x 400W Power Amplifier
100V High Impedance Amplifier

The Australian Monitor Synergy Series SY800V offers contractors a host of practical features and delivers 400 watts @ 100V of power per channel in a space-saving high performance package.

The SY800V is ideally suited to today’s complex multi-zone 100v line systems.

Quantity must be 1 or more


  • • 2 x 400W 100V high impedance power amplifier
    • Symmetrical layout - even weight distribution
    • High efficiency toroidal mains transformer
    • Balanced inputs and buffered attenuators
    • 1 dB below output clip indication
    • Dual, twin speed axial fans
    • Multi-role output fault indication
    • Signal ground lift switch
    • Built in limiter circuit
    • High-quality, close-tolerance components throughout
  • Output Power per Channel 400W Frequency Response 50Hz - 20kHz
    Output Channels 2 THD+N < 0.5%
    Output Mode 100V Signal to Noise Ratio > 97dB
    Input Voltage 230Vac 50-60Hz Input Sensitivity 1Vrms
    Mounting 2RU Cooling Fan-assisted
    Warranty 5 years
    Product Dimensions
    (W x D x H)
    482mm x 400mm x 87mm Shipping Dimensions
    (W x D x H)
    540mm x 520mm x 210mm
    Net Weight 20 Kg Shipping Weight 22 Kg
    GTIN EAN 9323383012547
  • AM15250W
    Speaker Cable - Figure 8
    250m roll, 2 x 1.5mm², Meter marked, White
    ATC7000
    Microphone Lead - XLR-3F to XLR-3M (3ft - 0.9m)
  • SY800V Brochure

    SY800V Manual
