WPBT-EU-W
Bluetooth® Audio Receiver
White
White

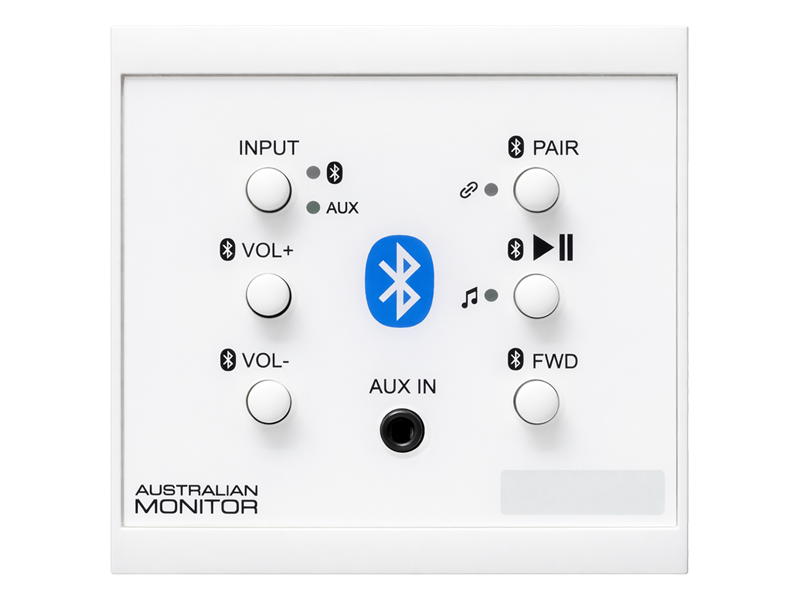

The WPBT is a programmable Bluetooth® audio receiver and auxiliary input wall panel. Featuring Bluetooth pairing and media controls as well as a source selector.
Audio can be configured to output either stereo or mono balanced audio which can be integrated into any audio system.
The WPBT can be programmed via a USB-C connector and Bluetooth PC Control Software. The software allows the customisation of broadcast name, PIN number, security features and output mode.
An optional WP-BREAKOUT box can provide power to the WPBT and convert the audio to unbalanced audio.
-
• Bluetooth® v5.1 Audio Receiver
• Auxiliary 3.5mm Input Socket
• Programmable name, PIN and security features via Bluetooth PC Control Software
• USB-C programming connector
• Dedicated Bluetooth® media controls
• Stereo or mono balanced audio output

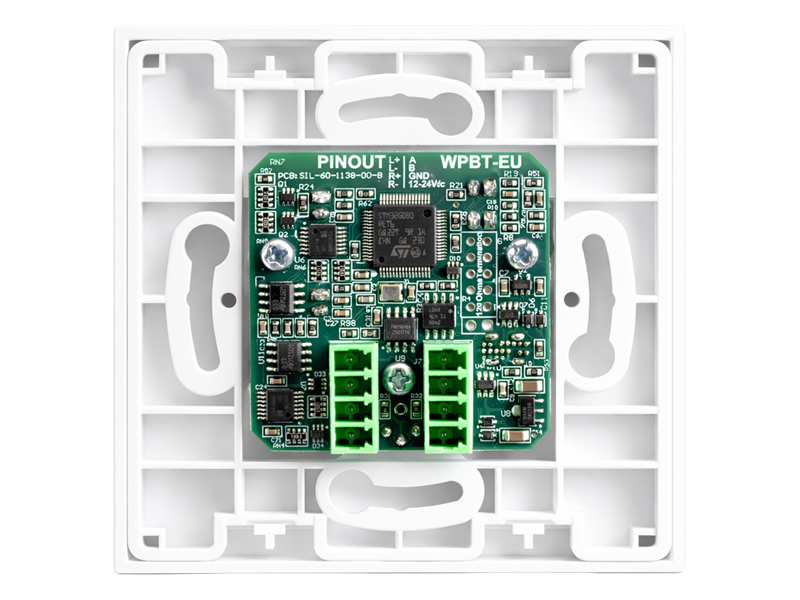

• Euroblock cable termination
• Also available in Black, WPBT-EU-B
• WPBACKBOX-EU-W flush-mount back box available as an optional accessory

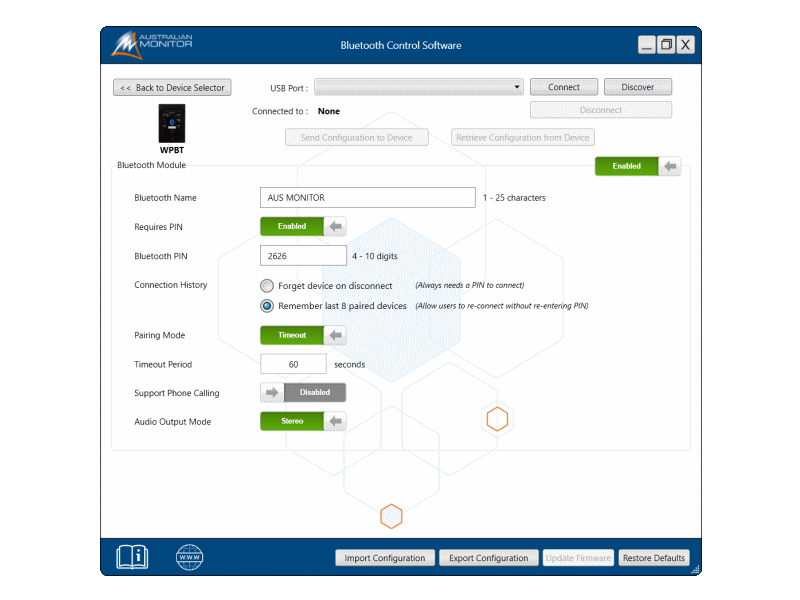

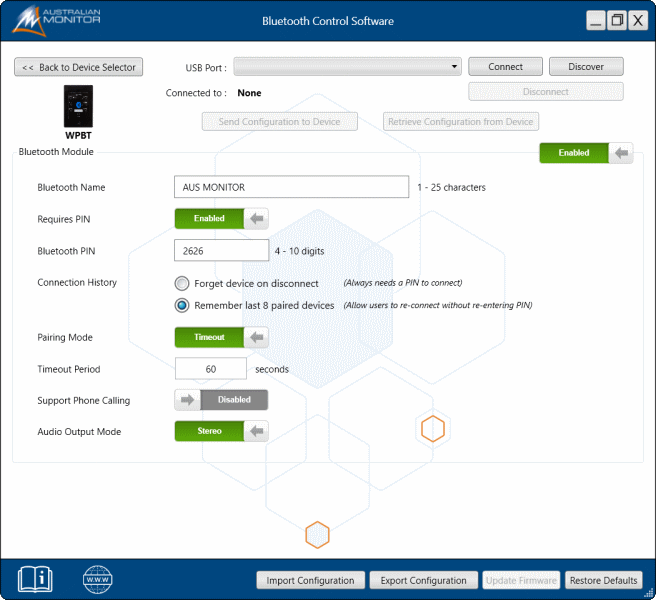

BLUETOOTH CONTROL SOFTWARE
The WPBT can be optionally programmed via the free Bluetooth PC Control Software. The following settings can be modified,
• Bluetooth broadcast name
• Bluetooth PIN
• Security features
• Allow phone call support
• Audio output mode

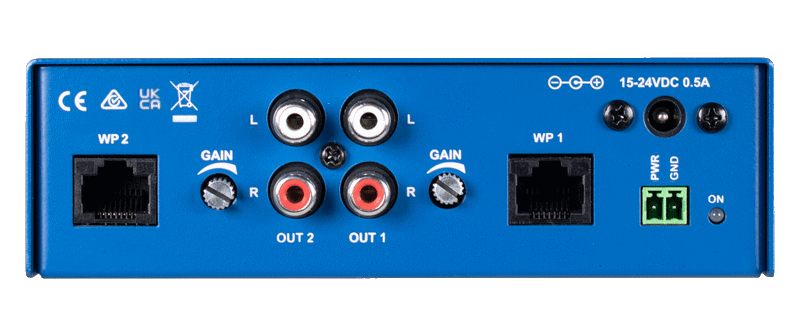

WP-BREAKOUT ACCESSORY
Pair the WPBT with the optional WP-BREAKOUT to easily provide power and break out the audio from up to two wall panels.
24V is provided to the WPBT wall panels and the balanced audio is converted into unbalanced audio for connection into any audio system.
Multiple WP-BREAKOUT units can be daisy chained from one power supply for a minimal installation footprint.
-
Output Channels Frequency Response Audio Formats THD+N < 0.1% Input Voltage 15-24Vdc Signal to Noise Ratio > 80dBA Mounting Warranty 5 years Product Dimensions
(W x D x H)86mm x 86mm x 36mm Shipping Dimensions
(W x D x H)156mm x 132mm x 101mm Net Weight 70g Shipping Weight 0.2 Kg GTIN EAN 9323383022768 -
-
-
200 metres direct line of site. Walls and obstacles will reduce this distance.
