WPML-W

Audio Input Wall Panel
White

The WPML is an active audio input wall panel with XLR, RCA and 3.5mm input connector options. The XLR input can be selected to operate as either a microphone or line level input, the RCA and 3.5mm input are fixed to line level.

The inputs are mixed and converted to a balanced line level stereo or mono output.

Rear selector switches allow,
• Selecting stereo or mono output mode
• Enable/Disable 24V phantom power in microphone mode
• Enable/Disable -6dB output attenuation

The WPML comes with two facia labels allowing installation in landscape or portrait view.

Additionally, the wall panel is compatible with HPM® VIVO™ cover plates allowing up to 13 additional colour options to be created. Simply replace the included cover plate with the alternative colour desired for a unique colour solution.

Quantity must be 1 or more


  • • XLR, RCA and 3.5mm input options
    • XLR Microphone or Line level input selector
    • 24V phantom power in microphone mode (defeatable)
    • Balanced euroblock audio output
    • Stereo or mono output mode
    • -6dB attenuator setting
    • Can be used with the WP-BREAKOUT for easy powering and audio conversion
    • Also available in black. WPML-B

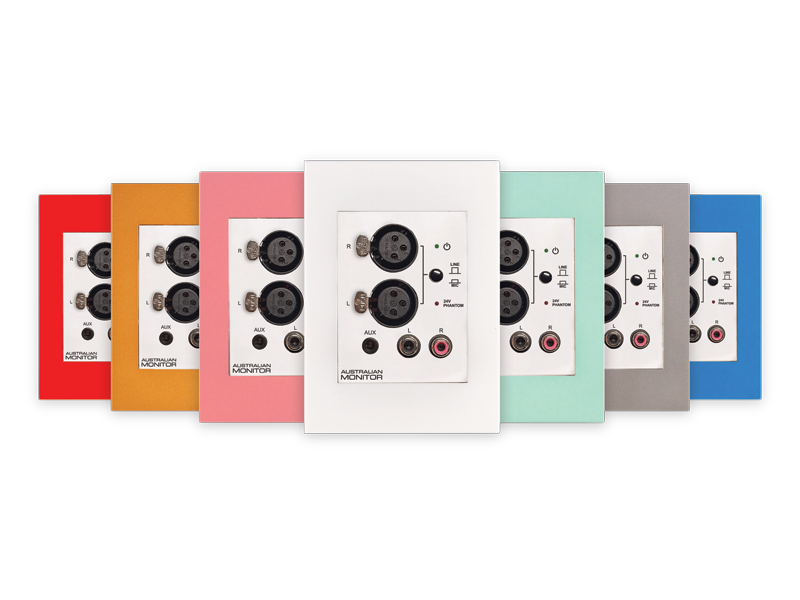

    CUSTOMISE THE LOOK WITH HPM® VIVO™ COVER PLATES

    The WPML is compatible with HPM® VIVO™ cover plates allowing up to 13 additional colour options to be created.

    Simply replace the included cover plate with the alternative colour desired for a unique colour solution.

  • Output Channels Stereo or Mono Frequency Response N/A
    Audio Formats Balanced Audio THD+N < 0.01%
    Input Voltage 15-24Vdc Signal to Noise Ratio > 85dBA
    Mounting Wall FM Frequencies N/A
    Warranty 5 years DAB+ Frequencies N/A
    Product Dimensions
    (W x D x H)
    121 mm x 82mm x 40mm Shipping Dimensions
    (W x D x H)
    156mm x 132mm x 101mm
    Net Weight 0.1 Kg Shipping Weight 0.25Kg
    GTIN EAN 9323383020962
