Z624PS

Paging Microphone
4 zone control

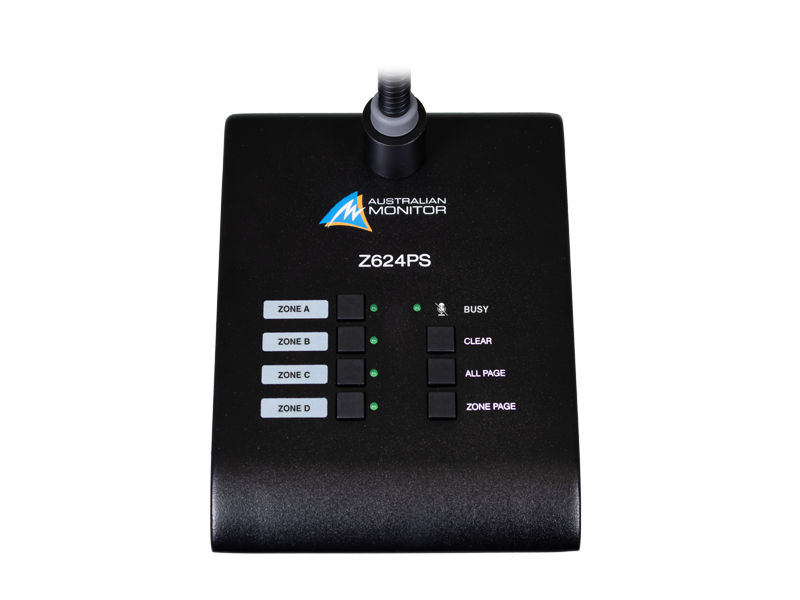

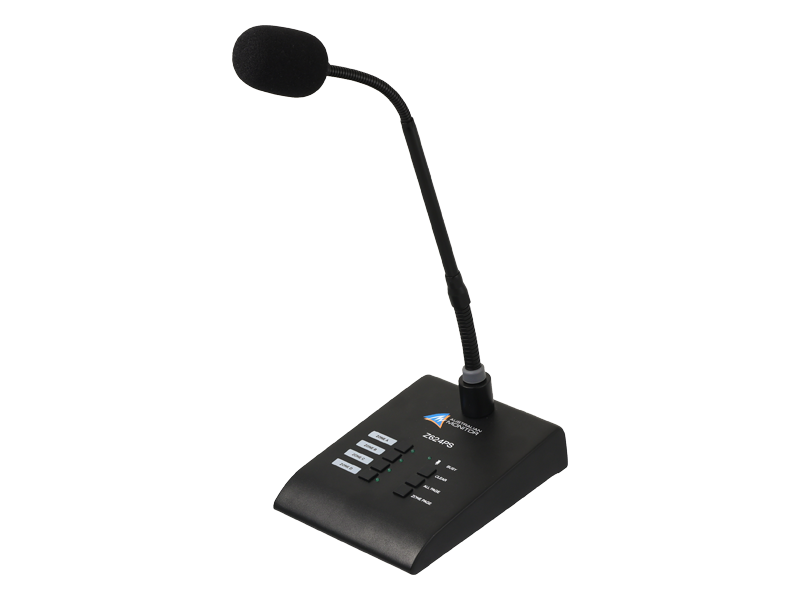

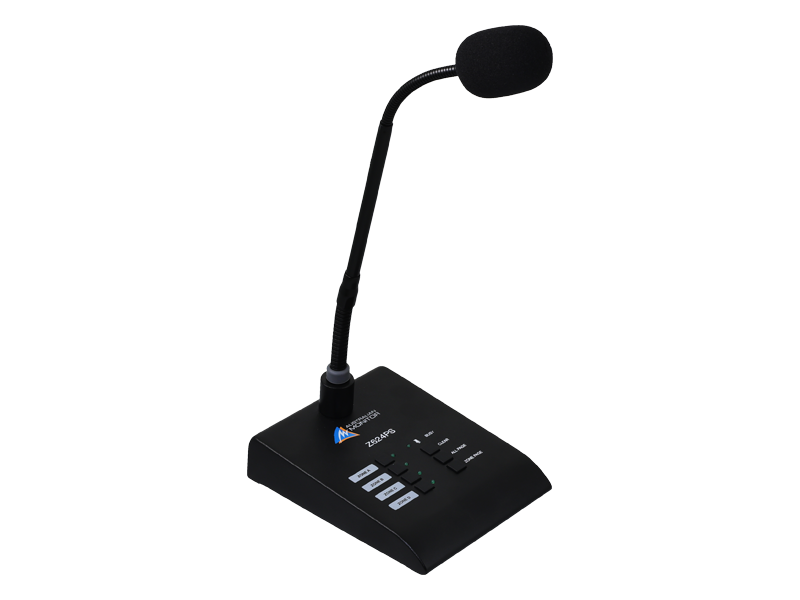

The Z624PS paging station is a paging front end for the Z624 system. Featuring a slimline gooseneck paging microphone and the ability to page any single zone, combination of zones or All Call.

LED indication provides the user with visual feedback of the zones being paged and if the system is busy.

The ZMPS also has ample button label space, a rear microphone gain control and is connected to the Z624 system via a low cost CAT5 cable.

Quantity must be 1 or more

  • • Slimline gooseneck microphone
    • Page any single zone, combination of zones or All Call.

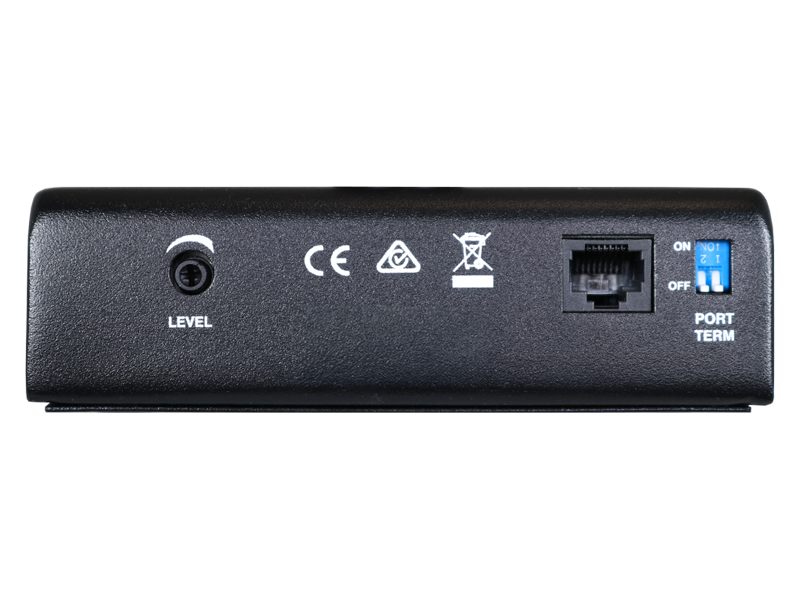

    • Rear panel gain adjustment
    • Connects via low cost Cat 5 cabling


  • Zones 4 Zones Paging Stations Connected 1
    Program Inputs N/A Paging Station P/N Z624PS
    Local Inputs N/A Remote Source Control N/A
    Tones N/A Mounting Table
    Input Voltage 24VDC Warranty 5 years
    Product Dimensions
    (W x D x H)    		 132mm x 174mm x 350mm Shipping Dimensions
    (W x D x H)    		 350mm x 200mm x 145mm
    Net Weight 1.0 Kg Shipping Weight 1.5 Kg
    GTIN EAN 9323383021617
  • ​ Z624

    Zone Mixer and Paging system
    4 mono zone outputs

  • Z624 Overview

    Z624 Brochure

    Z624PS Manual

    Z624 Wiring Guide


  • The Z624 system supports up to 1 Z624PS paging station.
    The maximum cable length for the Z624PS is 500 metres.
