WP10-W

Remote source and volume control
White

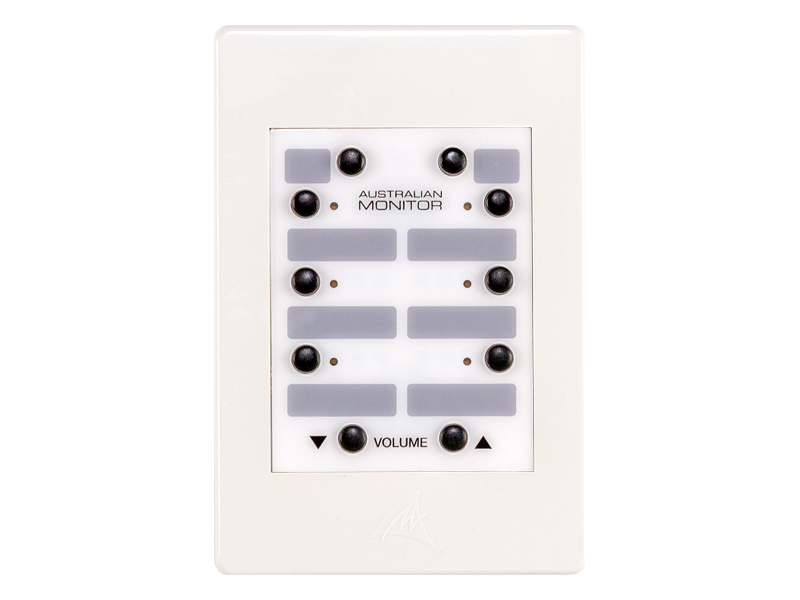

The WP10 wall panel is a 10 button controller featuring 8 programmable buttons, a dedicated volume control and 3 rear general purpose outputs for use with the ZONEMIX system.

Each button can be configured in software to provide a wide range of actions including source selection, volume control, muting, preset activation and more.

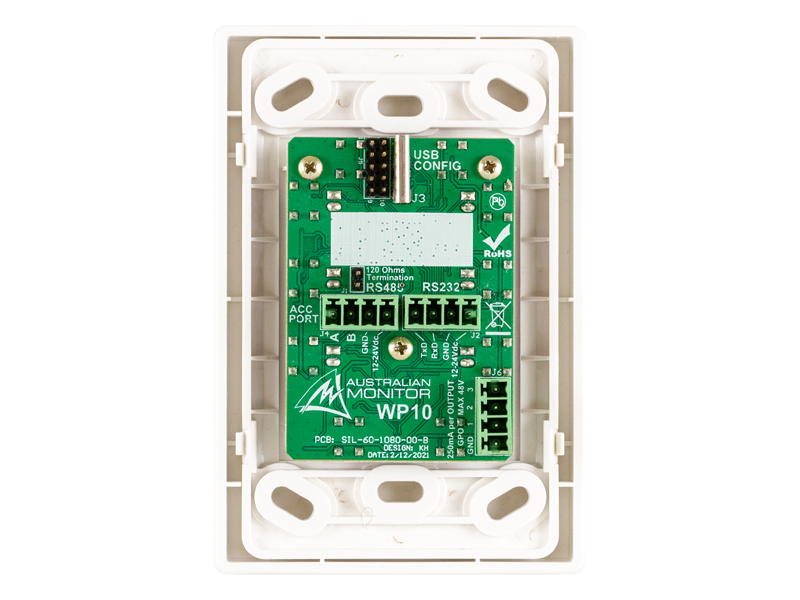

Three rear panel general purpose outputs can be connected to external systems requiring logic control, e.g. a projector screen.

The WP10 has LED button status indicators, ample button label space and is connected to the ZONEMIX system via Cat5 cabling.

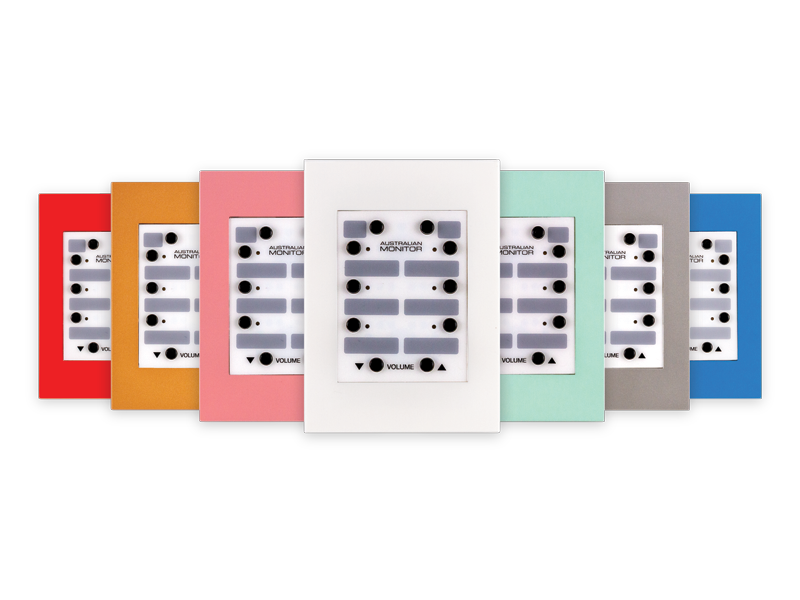

The wall panel can also be optionally colour customised using HPM® VIVO™ cover plates to create a unique look for each installation.

Quantity must be 1 or more


  • • 8 programmable buttons and dedicated volume control
    • 3 rear general purpose outputs
    • Euroblock cable termination
    • Customisable colour scheme using HPM® VIVO™ cover plates
    • Also available in Black, WP10-B

    GENERAL PURPOSE OUTPUTS

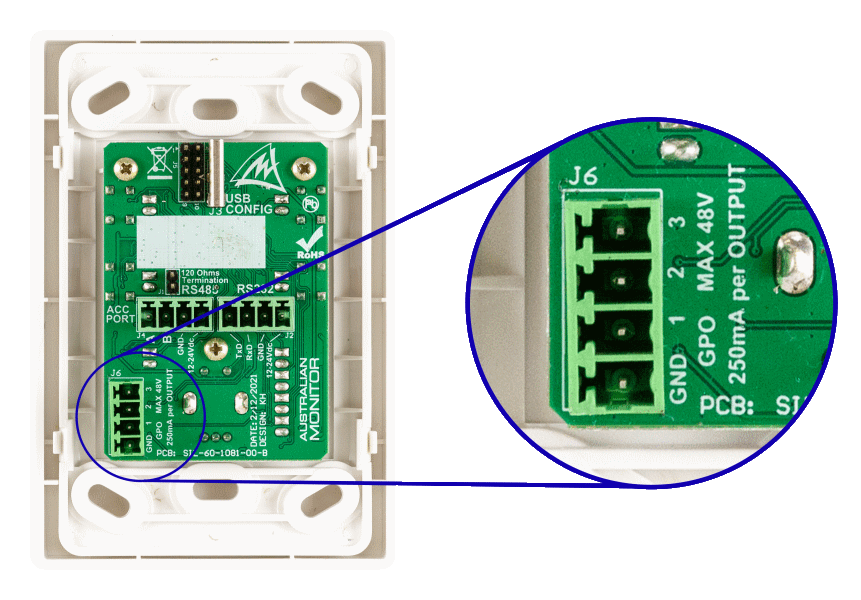

    The WP10 has 3 general purpose open collector outputs capable of sinking 250mA per output at a maximum of 48V.

    The outputs are activated by programming a wall panel button to trigger the output via the ZONEMIX PC Control Software.

    CUSTOMISE THE LOOK WITH HPM® VIVO™ COVER PLATES

    The WP10 is compatible with HPM® VIVO™ cover plates allowing up to 13 additional colour options to be created.

    Simply replace the included cover plate with the alternative colour desired for a unique colour solution.


  • Zones N/A Paging Stations Connected N/A
    Program Inputs N/A Paging Station P/N N/A
    Local Inputs N/A Remote Source Control N/A
    Tones N/A Mounting Wall
    Input Voltage 24VDC Warranty 5 years
    Product Dimensions
    (W x D x H)
    Shipping Dimensions
    (W x D x H)
    156mm x 132mm x 101mm
    Net Weight Shipping Weight 0.2 Kg
    GTIN EAN 9323383020351
