The AM10SUB, a dual coil 10 inch bandpass low frequency enclosure. The product is designed to work inclusively with our FLEX and QuickFit speaker series products as well as other 8 or 16 ohm low impedance products.

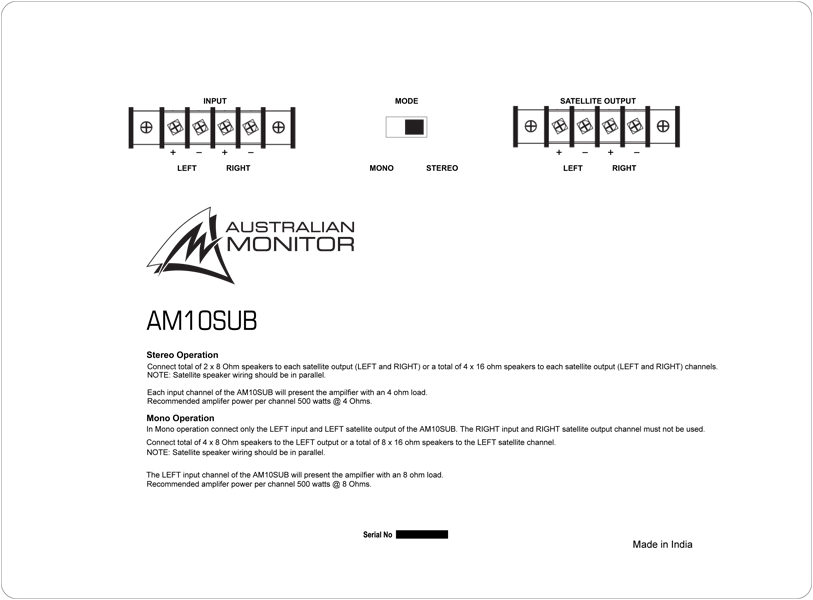

The AM10SUB features an internal crossover and simple wall mount bracket system which allows the cabinet to be wall mounted in horizontal or vertical orientations. Connection of the sub and satellite speakers is simple and cost effective via a single or dual channel low impedance amplifer. Add that all important punch to program material in Retail, Gyms, Cafes and many other commercial audio environments.
• Bandpass 15mm MDF cabinet
• 10 inch dual coil speaker drive
• Internal crossover 150Hz for satellite speakers
• Mono or Stereo operation
• Wall mountable in horizontal or vertical orientation
• 300 watts per voice coil
• 121dB peak SPL
Form Factor Subwoofer Max Continuous Power 300W Tappings 4 Ohm Max Program Power 600W IP Rating No Max Peak Power 1200W EASE Model No SPL 1W/1m 91dB Powered Passive Max SPL RMS 116dB Driver Diameter 10" x 2 Max SPL Peak 121dB Colour Black Frequency Response (-3dB) 49Hz - 200Hz Warranty 5 years Dispersion N/A Product Dimensions
(W x D x H)
580mm x 335mm x 325mm Shipping Dimensions
(W x D x H)
685mm x 513mm x 535mm Net Weight 19.9 Kg Shipping Weight 24.2 Kg GTIN EAN 9323383019874
