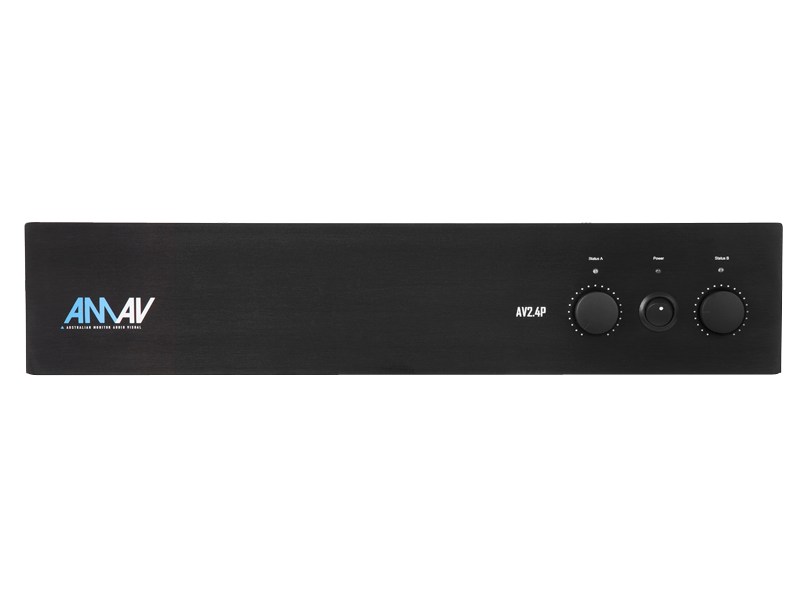

AV2 4P Front

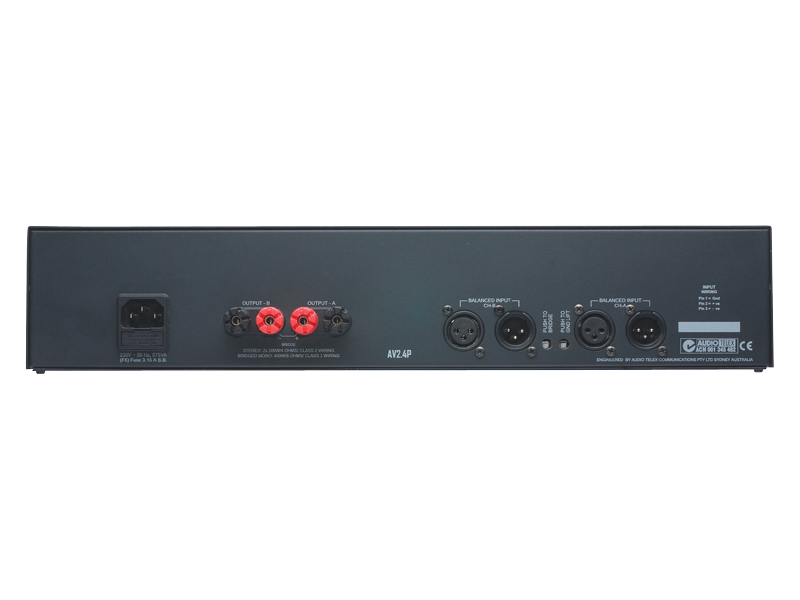

AV2 4P Rear

AV2-4P

2 x 200W Power Amplifier
Low Impedance, Fanless

The AV2.4P is a 2RU low impedance, convection cooled stereo power amplifier.

Designed for the demanding commercial audio-visual market, the AV2.4P delivers 200 Watts per channel at 4 Ohms from an elegant, slim line package.

The AV2.4P features front panel dual colour status LEDs, on board limiter, ground lift switch and the option of bridged operation delivering 400 Watts at 8 Ohms.

Quantity must be 1 or more


  • • 2 x 200 Watts @ 4 Ohm / 2 x 150 Watts @ 8 Ohm / 1 x 400 Watts @ 8 Ohm
    • 1 RU chassis
    • Convection cooled design for whisper quiet operation
    • Ground lift switch
    • Outstanding sonic performance
    • Perfect for boardrooms, lecture theatres and houses of worship
  • Output Power per Channel 200W Frequency Response 20Hz - 20kHz
    Output Channels 2 THD+N < 0.02%
    Output Mode 4 Ohm-8 Ohm Signal to Noise Ratio > 100dB
    Input Voltage 230Vac 50Hz Input Sensitivity 1Vrms
    Mounting 1RU Cooling Convection
    Warranty 5 years
    Product Dimensions
    (W x D x H)
    482mm x 300mm x 88mm Shipping Dimensions
    (W x D x H)
    544mm x 540mm x 220mm
    Net Weight Shipping Weight 15.4 Kg
    GTIN EAN 9323383012073
  • AM15250W
    Speaker Cable - Figure 8
    250m roll, 2 x 1.5mm², Meter marked, White
    ATC7000
    Microphone Lead - XLR-3F to XLR-3M (3ft - 0.9m)
  • AV2-4P Brochure

    AV2-4P Manual
