4 Input, 4 Output
Dante® expansion card for use with the IS series of power amplifiers.
Provides 4 inputs channels from a Dante network which can be routed to any amplifier output channel. In addition, 4 Dante® outputs channels are available to route any analogue inputs back on to the network.
Note: Due to restrictions in the Dante solution, the DM4x4 only supports 2 transmit and 2 receive flows (A flow can contain up to 4 audio channels). This means that the Dante audio connected must be in one of the following modes.
• 1 device containing 4 audio streams
• 2 devices containing 2 audio streams
It does not support 4 devices containing 1 audio stream (This would need 4 flows).
This restriction applies to both receive and transmit directions.
• 4 Input Channels
• 4 Output Channels
• AES67 Support
• Simple expansion slot install using a ribbon cable
• Dante® network setup is performed using the Dante® Controller software from Audinate.

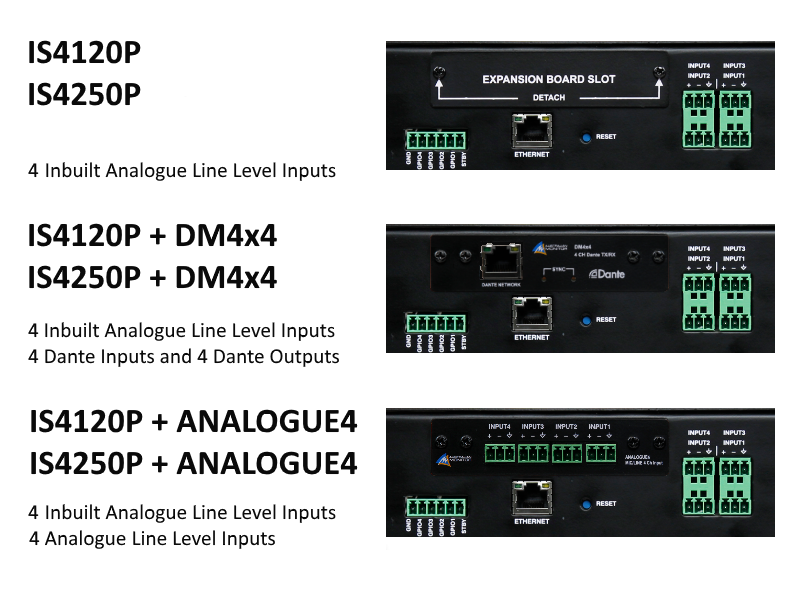

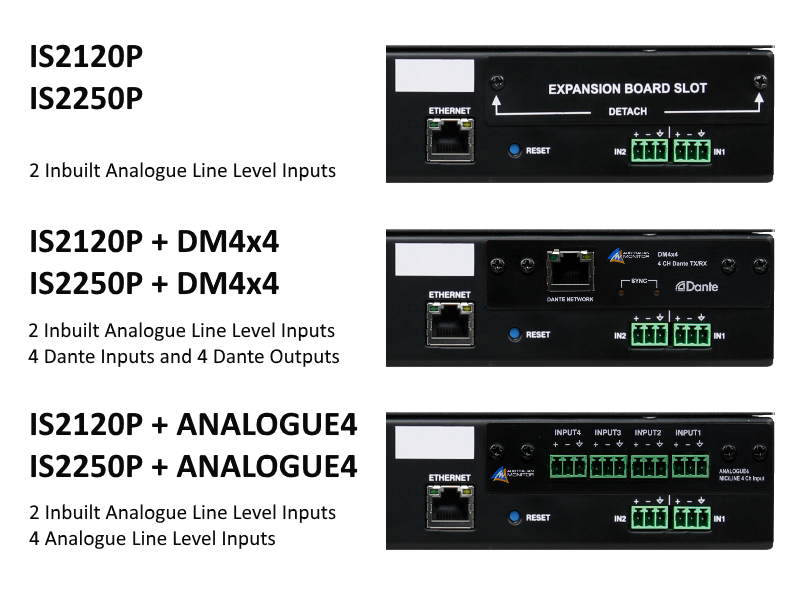

• Compatible with IS2120P, IS2250P, IS4120P, IS4250P

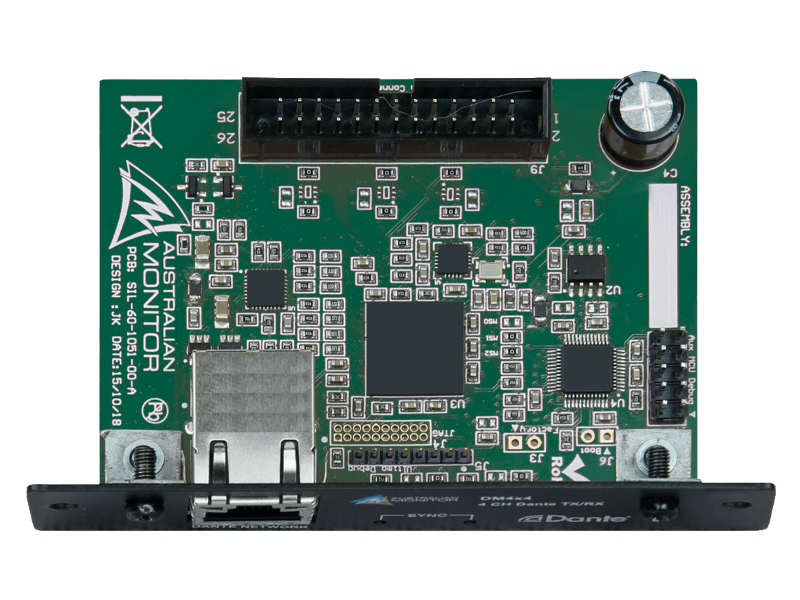

Expand the capabilities of ISP amplifiers with the optional DM4x4 Module.

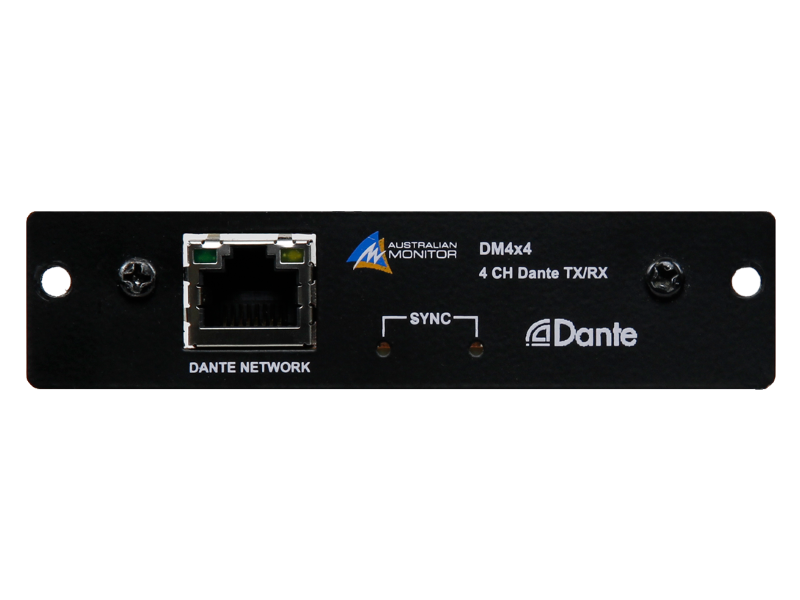

The DM4x4 provides 4 Dante™ Input channels and 4 output channels.
Easy InstallationThe DM4x4 module is very simply installed into a compatible product.

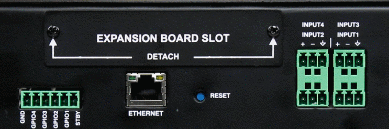

Simply remove the rear expansion slot blanking plate, connect the internal ribbon cable to the module and attach the two mounting screws.
Dante Output Channels4 Dante® output channels provide a powerful capability to transmit audio mixer channels to other Dante® enabled products on the network.

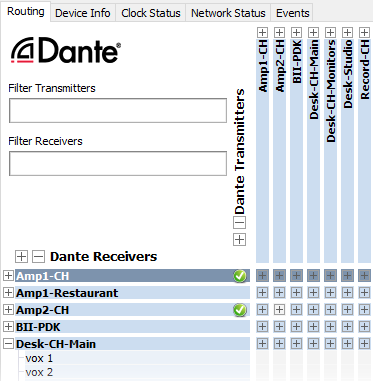

Dante® ControllerConfigure the Dante® network using the Dante® Controller software from Audinate.
Simply connect the DM4x4 module to the network and it will appear on the Dante® controller under available devices.
Using the controller software connect the ISP amplifier inputs and outputs to other available devices on the Dante® network.
Output Power per Channel N/A Frequency Response N/A Output Channels N/A THD+N N/A Output Mode N/A Signal to Noise Ratio N/A Input Voltage N/A Input Sensitivity N/A Mounting N/A Cooling N/A Warranty 5 years Product Dimensions
(W x D x H)
(W x D x H)
Net Weight Shipping Weight GTIN EAN 9323383020016
