Cost Effective, Basic Features
The Australian Monitor ES Series is the latest evolution of our Essentials series of Mixer Amplifiers, now featuring 2 channels of priority VOX muting, integrated tone generator (120/250 models) and a modern look and finish.
The ES mixer amplifiers maintain the core features you expect including four XLR mic/dual RCA line inputs, record and line outputs, low impedance or constant voltage outputs and 12V phantom power.
The ES series offers the latest features to meet projects requiring the most cost-effective solutions.
• 60W mixer amplifier
• 4 XLR microphone/dual RCA line inputs
• 100 volt or 4 ohm output
• Line and Record Level Outputs
• Input 1,2 vox muting priority
• 12VDC phantom power
• 1 RU rack mountable chassis

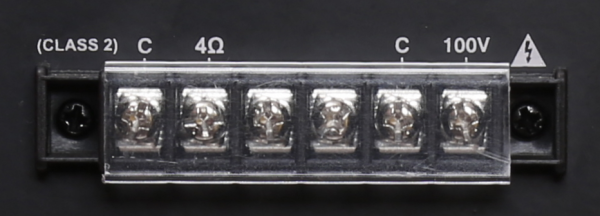

Power Amplifier StageThe ES mixer amplifiers all offer 100V and 4Ω output options so you can choose the required output for your speaker application.

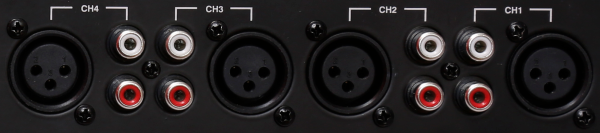

4 Input ChannelsThe ESMIX and Mixer Amplifiers all feature four inputs channels.
Each channel can be used as a Microphone input(XLR) or as a Line Level Input(RCA).

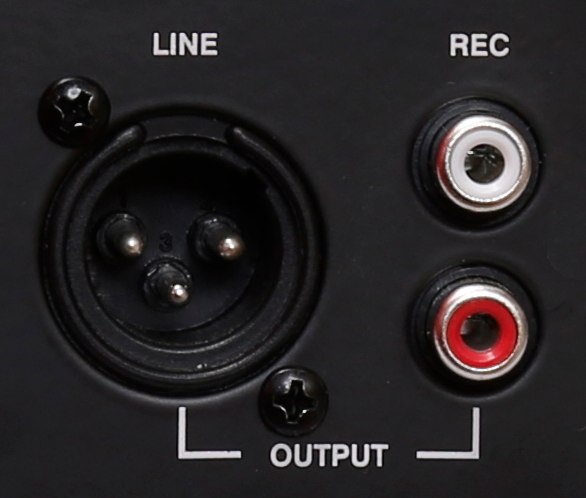

Line and Record OutputsThe ESMIX and ES Mixer Amplifiers feature both a Line and Record Output.
These outputs can be used to link additional power amplifiers to increase the required output channels or total power requirements.

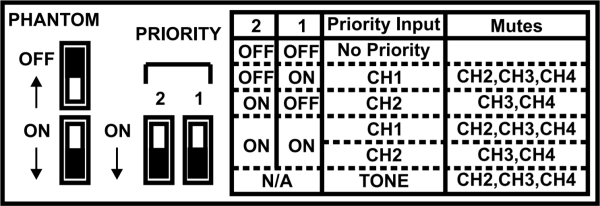

Priority Muting & Phantom PowerThe ES series offer two channels of priority muting control.
Using selectable DIP switches on the rear of the product, different configuration modes can be selected as shown in the table.
Use the priority muting to perform talk over functions which mute background music inputs when audio is detected on a priority input channel.
Phantom power is also provided which, when activated, provides 12 volts to condenser microphones on the XLR inputs.
Output Power per Channel 60W Frequency Response 65Hz - 19.5kHz Output Mode 4 Ohm-100V THD+N < 0.2% Input Channels 4 MIC or Line Signal to Noise Ratio > 82dB Input Voltage 230Vac 50Hz Input Sensitivity MIC: 1.2mV - Line: 160mV Mounting 1RU Cooling Fan-assisted Warranty 5 years Product Dimensions
(W x D x H)
484mm x 285mm x 44.5mm Shipping Dimensions
(W x D x H)
541mm x 376mm x 111mm Net Weight 5.0 Kg Shipping Weight 7.0 Kg GTIN EAN 9323383020047
