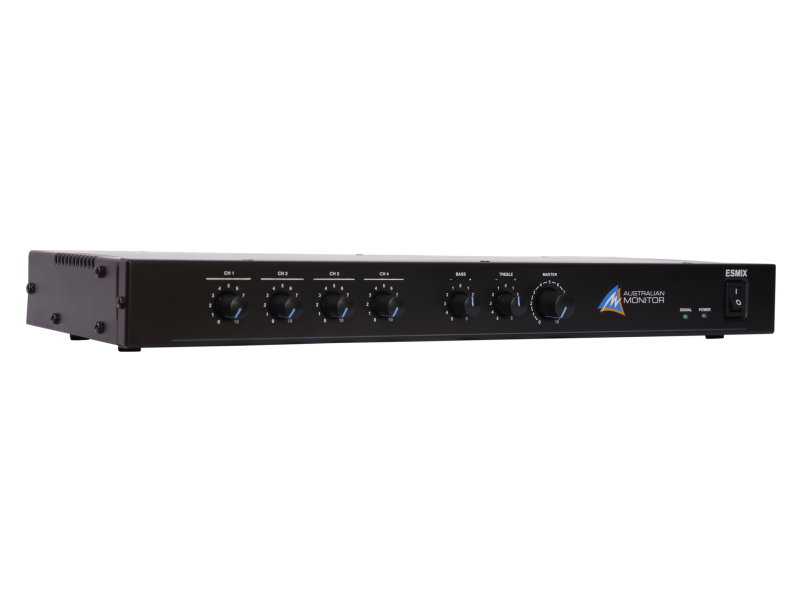

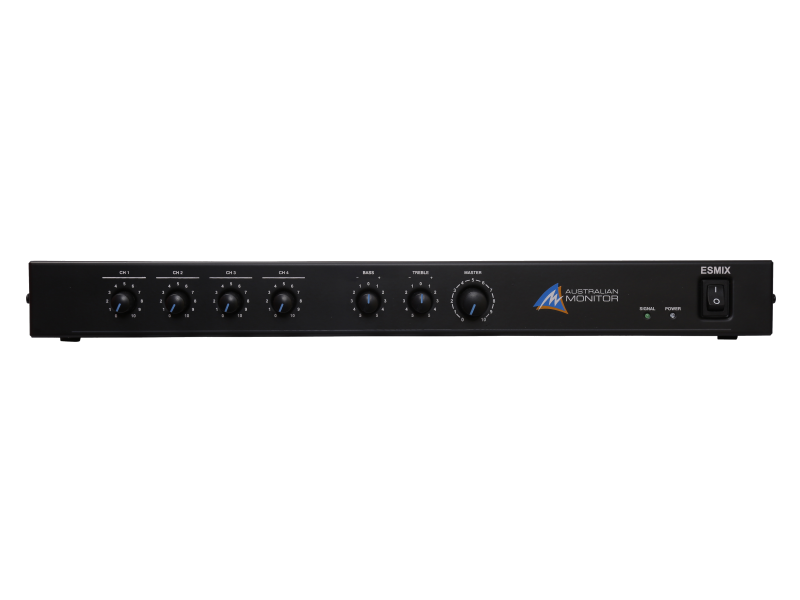

ESMIX

4 Channel Mono Mixer
Cost Effective, Basic Features



The Australian Monitor ESMIX is the latest evolution of our Essentials series of Mixers, now featuring 2 channels of priority VOX muting an integrated tone generator with a modern look and finish.

The mixer maintains the core features you expect including four XLR mic/dual RCA line inputs, record and line outputs and 12V phantom power.

The ESMIX offers the latest features to meet projects requiring the most cost-effective solutions.

Quantity must be 1 or more


  • • 4 microphone/line input mono mixer
    • Master volume, treble and bass controls
    • Line and Record Level Outputs
    • Input 1,2 vox muting priority
    • Integrated tone generator. Evac/Alert/Interuder/Bell/Chime tones
    • 12VDC phantom power
    • 1 RU rack mountable chassis

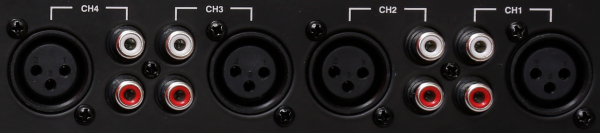

    4 Input Channels

    The ESMIX and Mixer Amplifiers all feature four inputs channels.
    Each channel can be used as a Microphone input(XLR) or as a Line Level Input(RCA).

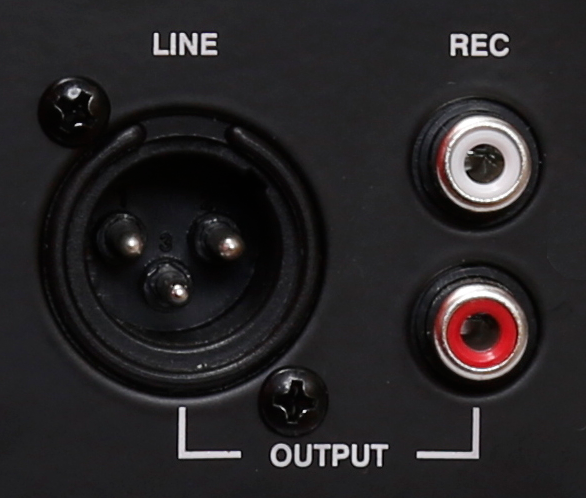

    Line and Record Outputs

    The ESMIX and ES Mixer Amplifiers feature both a Line and Record Output.
    These outputs can be used to link additional power amplifiers to increase the required output channels or total power requirements.

    Priority Muting & Phantom Power

    The ES series offer two channels of priority muting control.

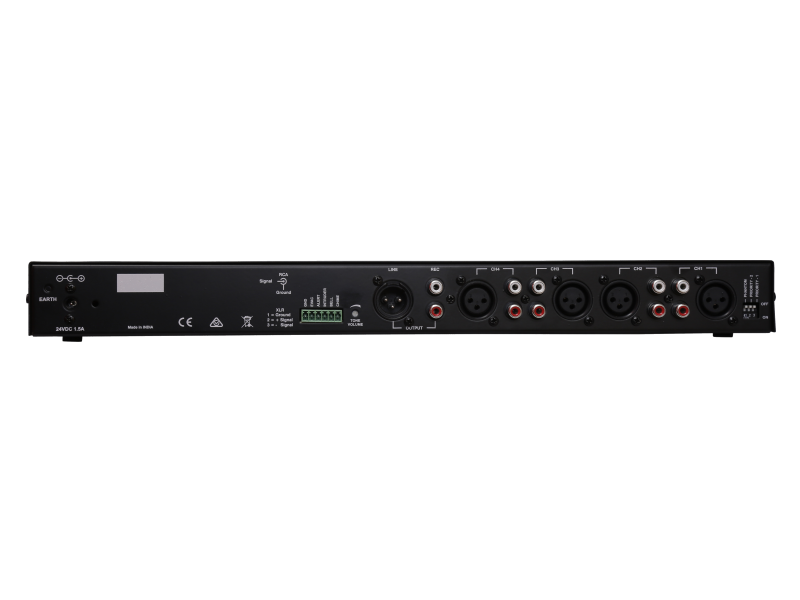

    Using selectable DIP switches on the rear of the product, different configuration modes can be selected as shown in the table.
    Use the priority muting to perform talk over functions which mute background music inputs when audio is detected on a priority input channel.

    Phantom power is also provided which, when activated, provides 12 volts to condenser microphones on the XLR inputs.

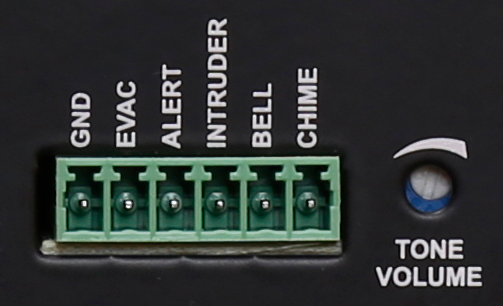

    Embedded Tone Generator

    The ES120, ES250 and ESMIX products embed a tone generator which can play 5 internal tones.
    A rear panel connector allows the tones to be played by connecting any of the pins to the ground terminal.
    A tone volume control is also provided to change the tone to the desired level.

    When a tone is playing Channels 2, 3 and 4 are muted. Channel 1 is not muted to allow, if required, microphone messaging over the tone.

  • Total Inputs 4 Frequency Response 20Hz - 20kHz
    Input Channels 4 MIC or Line THD+N < 0.5%
    Output Channels 1 Mono Signal to Noise Ratio > 84dB
    Mounting 1RU Input Sensitivity MIC: 1.2mV / Line: 160mV
    Warranty 5 years Input Voltage 100-240Vac 50-60Hz
    Product Dimensions
    (W x D x H)
    182mm x 192mm x 44mm Shipping Dimensions
    (W x D x H)
    500mm x 305mm x 134mm
    Net Weight 2.5 Kg Shipping Weight 3.5 Kg
    GTIN EAN 9323383020122
