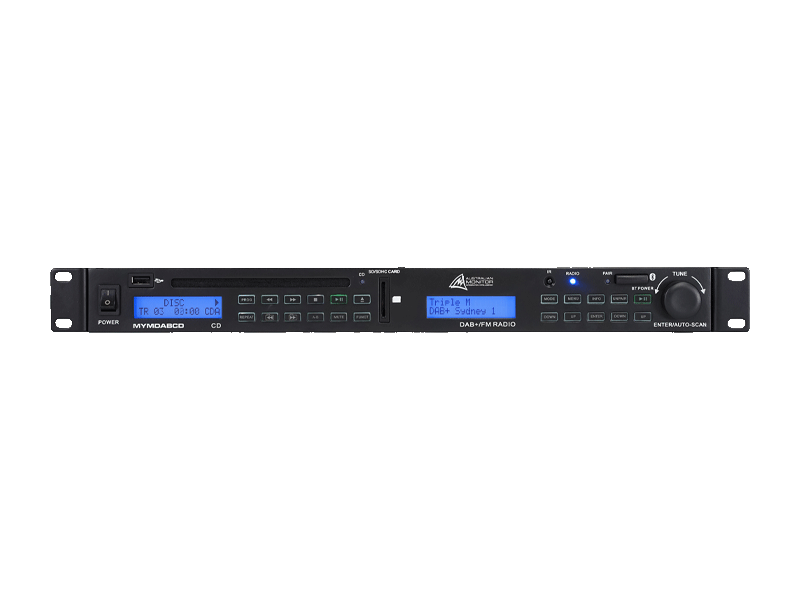

MYMDABCD Front

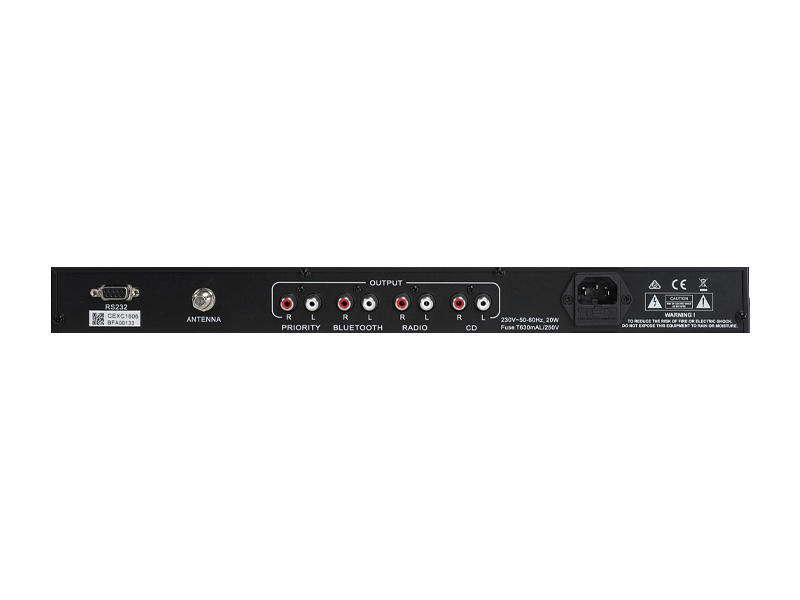

MYMDABCD Rear

MYMDABCD

DAB+FM Tuner and CD Player
USB, SD Card and Bluetooth

The MYMDABCD is a 1RU program source combining a programmable CD player, DAB+ / FM tuner and Bluetooth Module.

In addition, there is a USB and SD card input which supports MP2, MP3, WAV, WMA formats playback. The product contains a discrete stereo output for the CD, Radio and Bluetooth as well as a priority output.

The MYMDABCD can be controlled via IR or the RS-232 serial port for comprehensive third party control.

Quantity must be 1 or more

  • • 1RU dual program source
    • MP3-compatible CD player
    • Bluetooth audio receiver
    • USB and SD card playback
    • Up to 20 tracks programmable on CD player
    • DAB+ and FM tuner
    • Discrete stereo outputs for each module
    • Priority stereo output
    • IR control
    • RS-232 control
  • Output Channels 1 DAB+ / 1 CD / 1 Bluetooth / 1 Priority Frequency Response 20Hz - 20kHz
    Audio Formats PCM/MP2/MP3/WAV/WMA THD+N < 0.2%
    Input Voltage 230Vac 50-60Hz Signal to Noise Ratio CD > 94dB - DAB > 50dB - Bluetooth > 60dB
    Mounting 1RU FM Frequencies 87.5 - 108 MHz
    Warranty 5 years DAB+ Frequencies 174.928 - 239.2 MHz
    Product Dimensions
    (W x D x H)    		 482mm x 250mm x 44mm Shipping Dimensions
    (W x D x H)    		 531mm x 365mm x 111mm
    Net Weight 4 Kg Shipping Weight 5.5 Kg
    GTIN EAN 9323383019270
  • ​ ATC7070
     Signal Lead - Dual RCA Jacks to Dual RCA Jacks (10ft - 3m)

  • MYMDABCD Brochure

    MYMDABCD Manual

    MYM Serial Trigger Application
