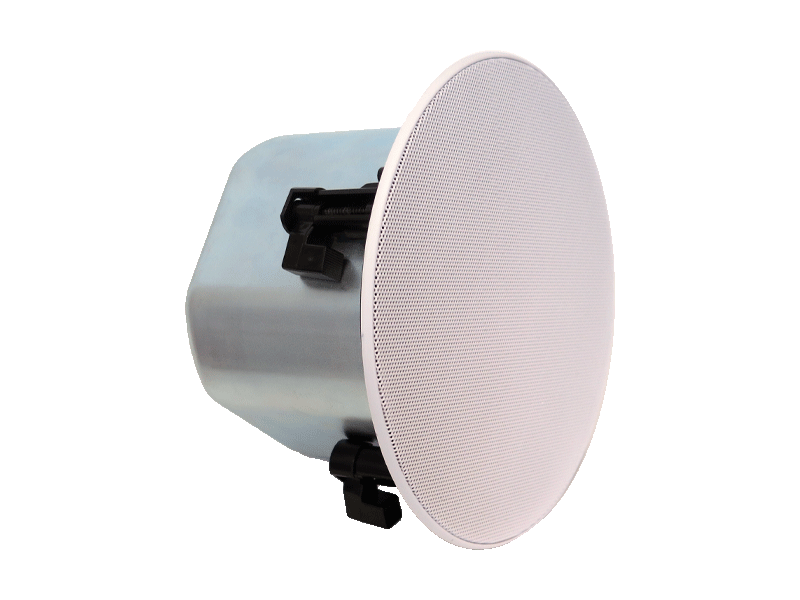

QF20CS
20W sealed back can
When you need more power and solid bass response the QuickFit premium coaxial series of ceiling speakers are sure to exceed expectations. This premium series features two way coaxial drivers producing high SPL and detailed audio reproduction. The frameless magnetic grills allows easy removal of the grill for tapping changes and quick installation. Porting through the front baffle improves bass response and ensures detailed bass definition. The sealed back-can provides isolation in the ceiling space ensuring spill in the ceiling cavity is kept to a minimum.
If you require a black ceiling speaker it’s as easy as changing the grill. A black grill for each model can be purchased separately as an accessory.
EASE® GLL files simulation files are available for QuickFit ceiling speakers. EASE® is a registered trademark of AFMG Technologies GmbH
-

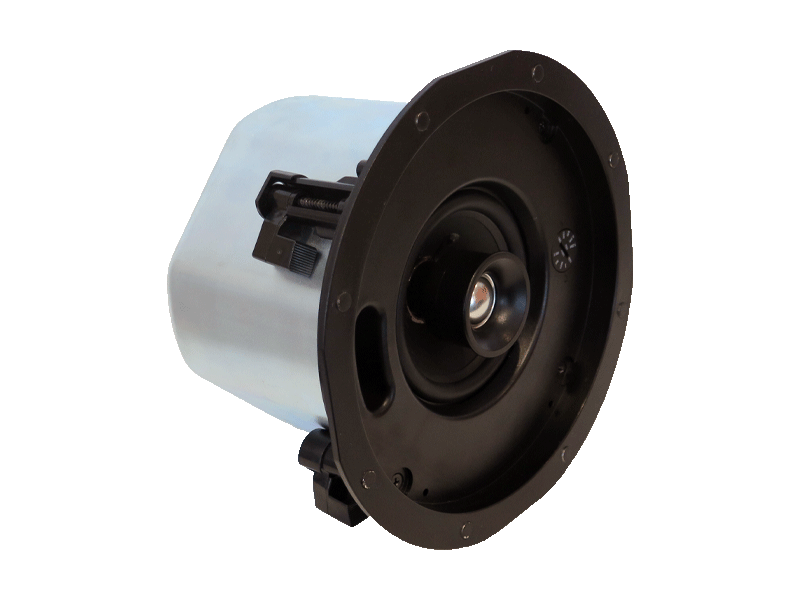

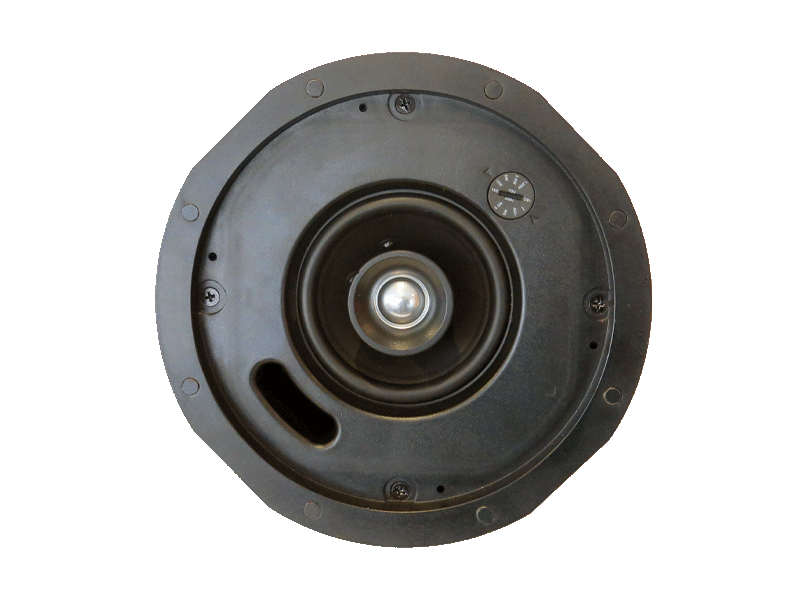

• 4 inch & 20mm coaxial high powered driver

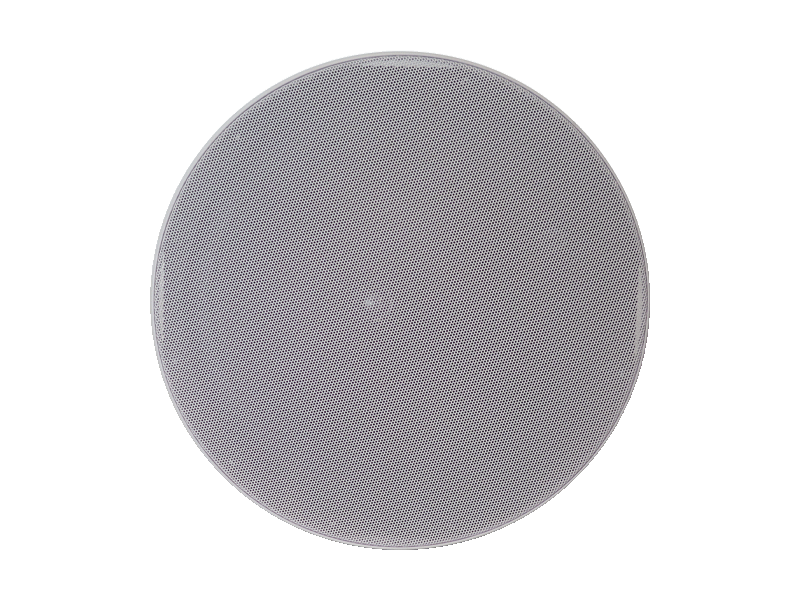

• QuickFit white frameless powder coated steel grill

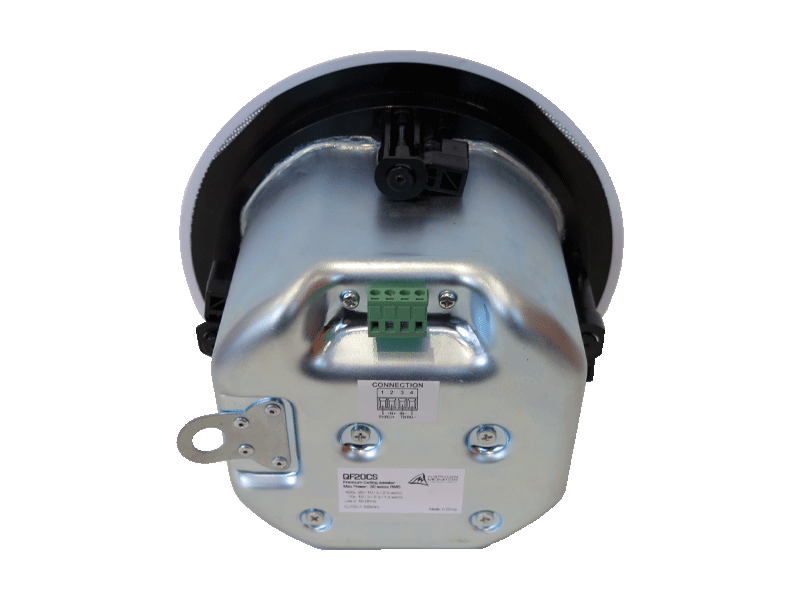

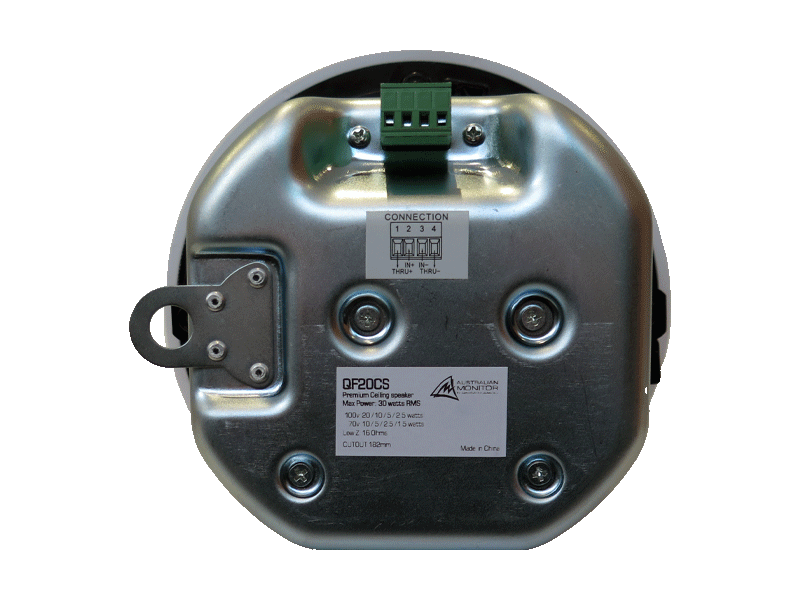

• Sealed steel back can
• 2.5, 5, 10, 20 watt taps @ 100V
• 30 Watts @ 16 Ohms
• Tile Bridge optional (QF20CSTB)
-

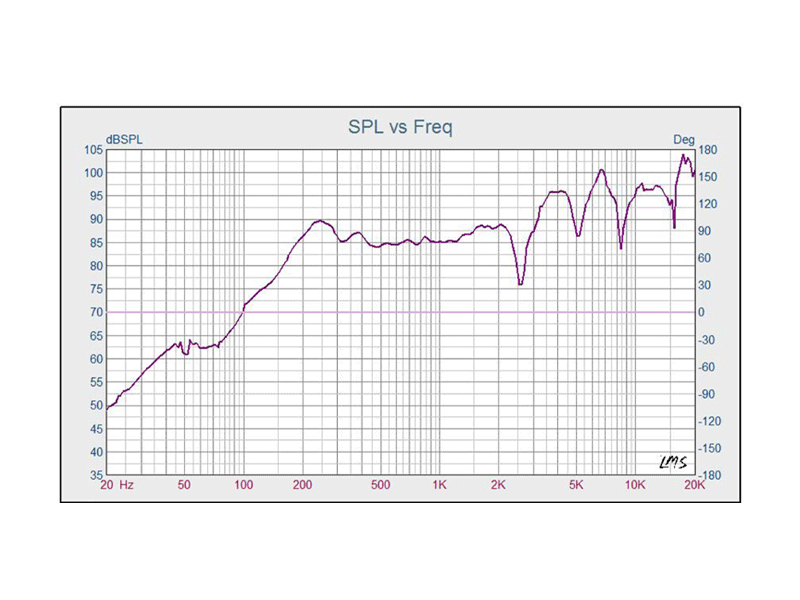

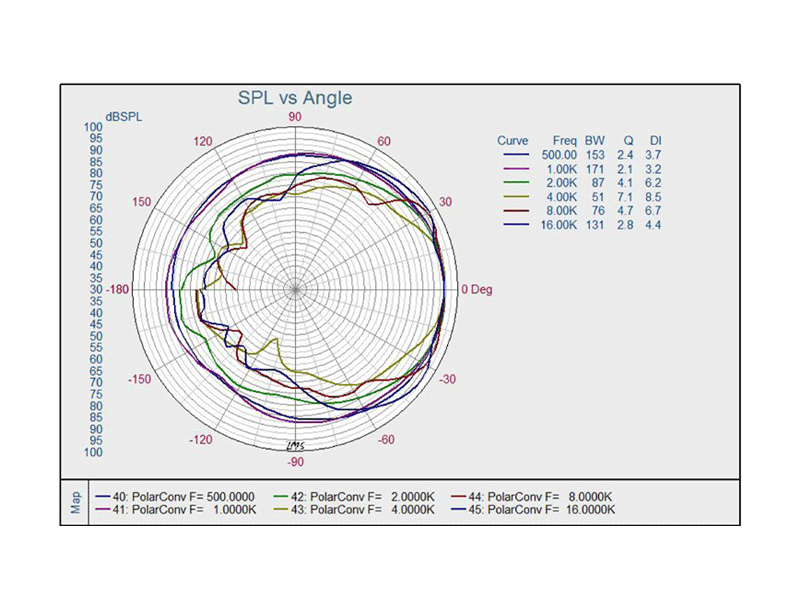

Form Factor Ceiling Max Continuous Power 30W Tappings 20W-10W-5W-2.5W-1.75W Max Program Power 60W IP Rating No Max Peak Power 90W EASE Model Yes SPL 1W/1m 89dB Powered Passive Max SPL RMS 102dB Driver Diameter 4.5" & 20mm Max SPL Peak 108dB Colour White Frequency Response (-3dB) 110Hz - 20kHz Warranty 5 years Dispersion 130deg Product Dimensions
(W x D x H)218mm x 125mm Shipping Dimensions
(W x D x H)248mm x 244mm x 115mm Net Weight 2.15 Kg Shipping Weight 3.5 Kg GTIN EAN 9323383019485 -
