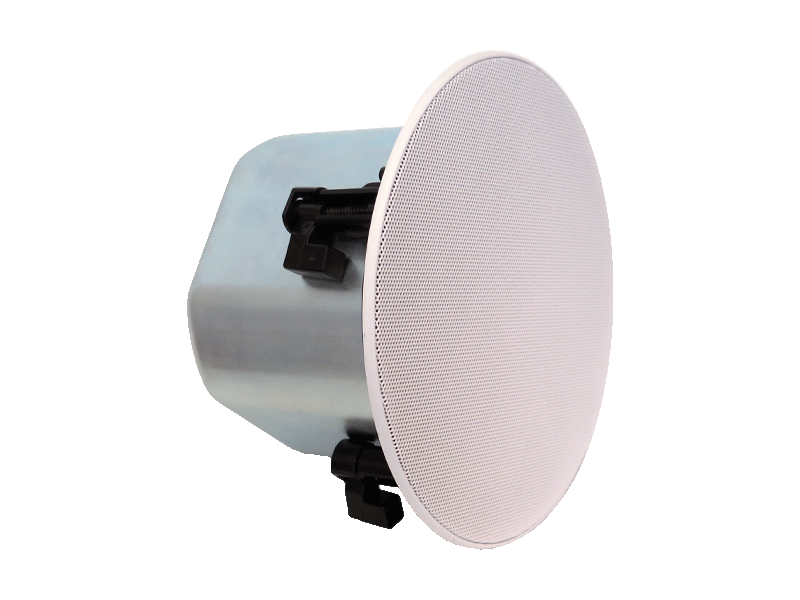

QF60CS Side

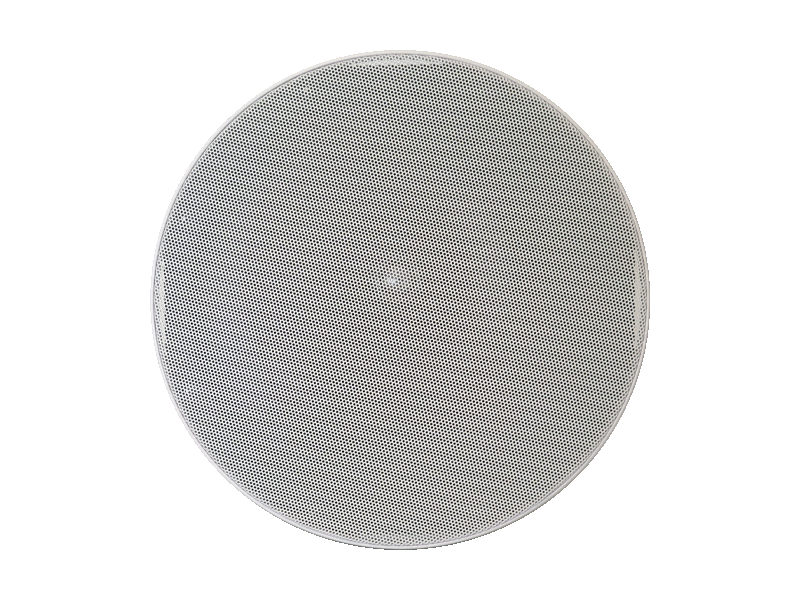

QF60CS Front
QF60CS Front Nogrill

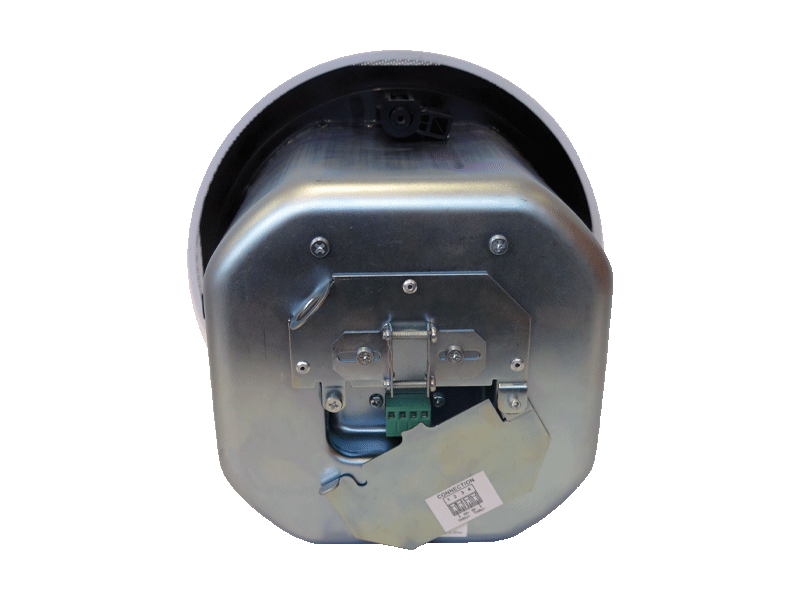

QF60CS Rear
QF60CS Rear Dooropen
QF60CS Frequency Response

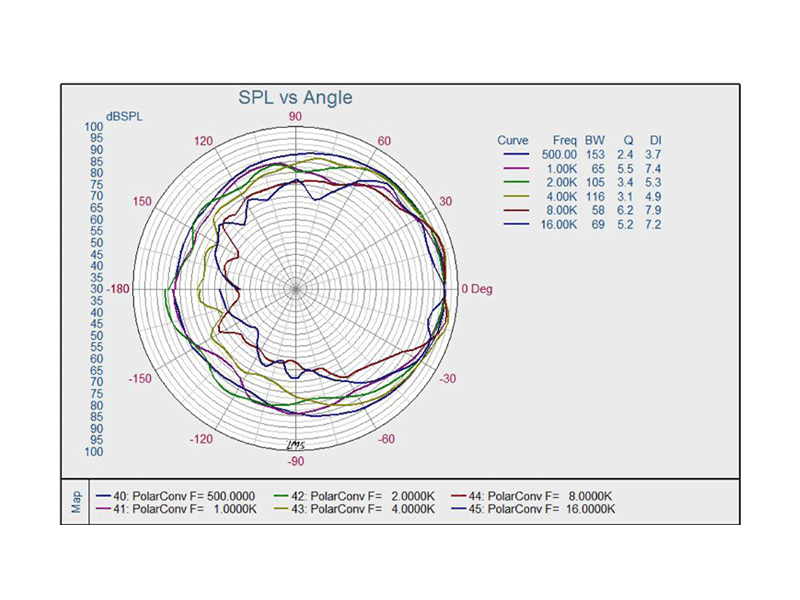

QF60CS Polar Plot

QF60CS

Ceiling Speaker
60W sealed back can

When you need more power and solid bass response the QuickFit premium coaxial series of ceiling speakers are sure to exceed expectations. This premium series features two way coaxial drivers producing high SPL and detailed audio reproduction. The frameless magnetic grills allows easy removal of the grill for tapping changes and quick installation. Porting through the front baffle improves bass response and ensures detailed bass definition. The sealed back-can provides isolation in the ceiling space ensuring spill in the ceiling cavity is kept to a minimum.

If you require a black ceiling speaker it’s as easy as changing the grill. A black grill for each model can be purchased separately as an accessory.

EASE® GLL files simulation files are available for QuickFit ceiling speakers. EASE® is a registered trademark of AFMG Technologies GmbH

Quantity must be 1 or more


  • • 6 inch & 20mm coaxial high powered driver
    • QuickFit white frameless powder coated steel grill
    • Sealed steel back can
    • 15, 30, 60 watt taps @ 100V
    • 60 Watts @ 16 Ohms
    • Tile bridge included
  • Form Factor Ceiling Max Continuous Power 60W
    Tappings 60W-30W-15W-7.5W Max Program Power 120W
    IP Rating No Max Peak Power 180W
    EASE Model Yes SPL 1W/1m 90dB
    Powered Passive Max SPL RMS 108dB
    Driver Diameter 6" & 20mm Max SPL Peak 114dB
    Colour White Frequency Response (-3dB) 85Hz - 20kHz
    Warranty 5 years Dispersion 130deg
    Product Dimensions
    (W x D x H)
    257mm x 195mm Shipping Dimensions
    (W x D x H)
    286mm x 282mm x 220mm
    Net Weight 3.7 Kg Shipping Weight 5.0 Kg
    GTIN EAN 9323383019492
  • QF60CSGRILLB
    Speaker Grill
    Suitable for QF60CS
  • QF60CS Brochure

    QF60CS Manual

    QuickFit Family Brochure

    QF60CS Cutout Template

    QF60CS EASE Model
