Ceiling Speaker
12W 6 inch Water Resistant

The Australian Monitor QF6WRC ceiling mount speaker is designed to provide a water resistant option to complement the QuickFit range of Australian Monitor ceiling speakers.

The perfect solution for change rooms, toilets, wash rooms,swimming pools and other wet areas.

EASE® GLL files simulation files are available for QuickFit ceiling speakers. EASE® is a registered trademark of AFMG Technologies GmbH

Quantity must be 1 or more

  • • IEC 529 IP55 rated

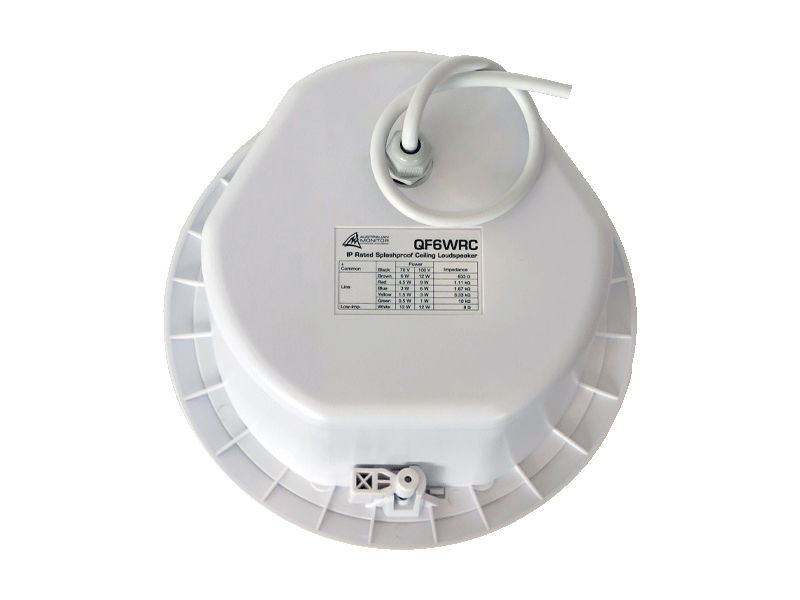

    • Sealed ABS enclosure with glanded cable and cable tail
    • 6 inch doped full range dual cone speaker driver

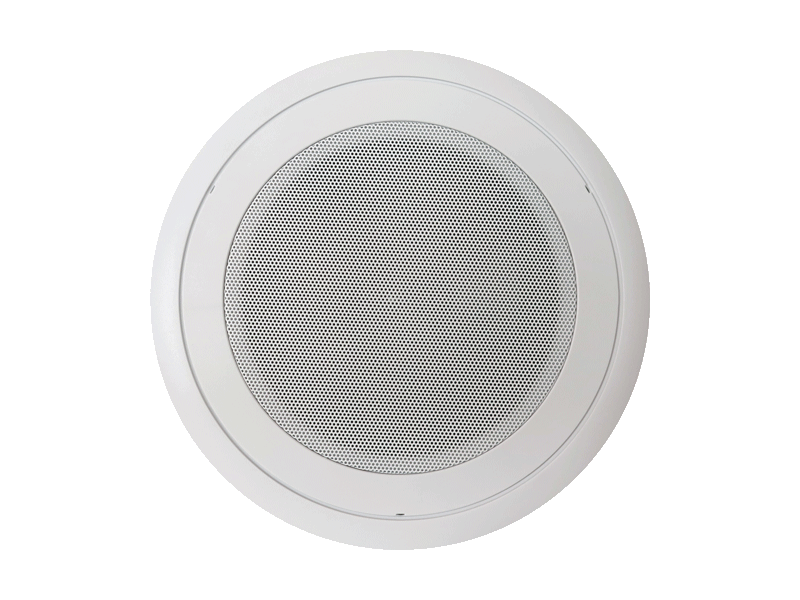

    • Powder coated aluminum grill
    • 100V power tappings at 12, 9, 6, 3, 1 watts
    • 70V tappings at 6, 4.5, 3, 1.5, 0.5 watts
    • Low impedance 12 watts @ 8 ohms
    • Evac supervisory capacitor installed

  • Form Factor Ceiling Max Continuous Power 12W
    Tappings 12W-9W-6W-3W-1W-8 Ohm Max Program Power 24W
    IP Rating IP55 Max Peak Power 36W
    EASE Model No SPL 1W/1m 92dB
    Powered Passive Max SPL RMS 103dB
    Driver Diameter 6" Max SPL Peak 109dB

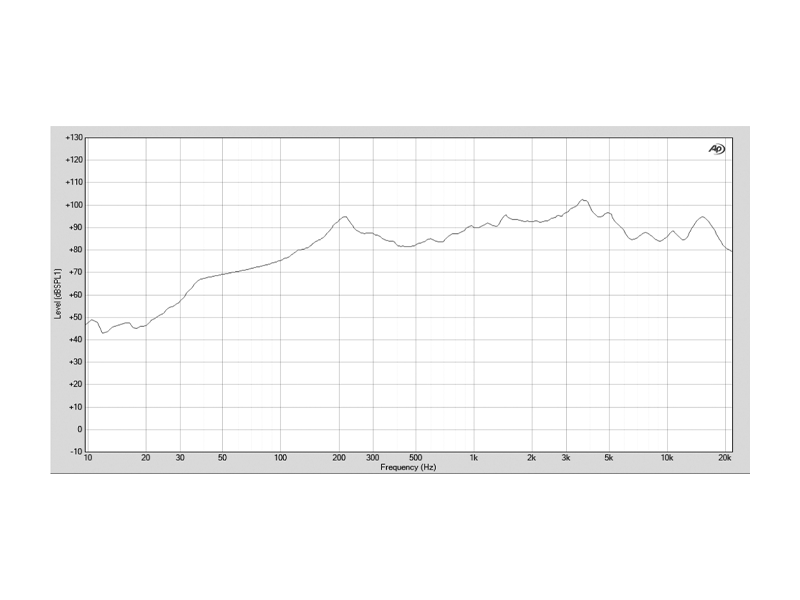

    Colour White Frequency Response (-3dB) 185Hz - 19kHz
    Warranty 5 years Dispersion 110deg
    Product Dimensions
    (W x D x H)
    238mm x 138mm Shipping Dimensions
    (W x D x H)
    Net Weight 1.7 Kg Shipping Weight
    GTIN EAN 9323383017504
