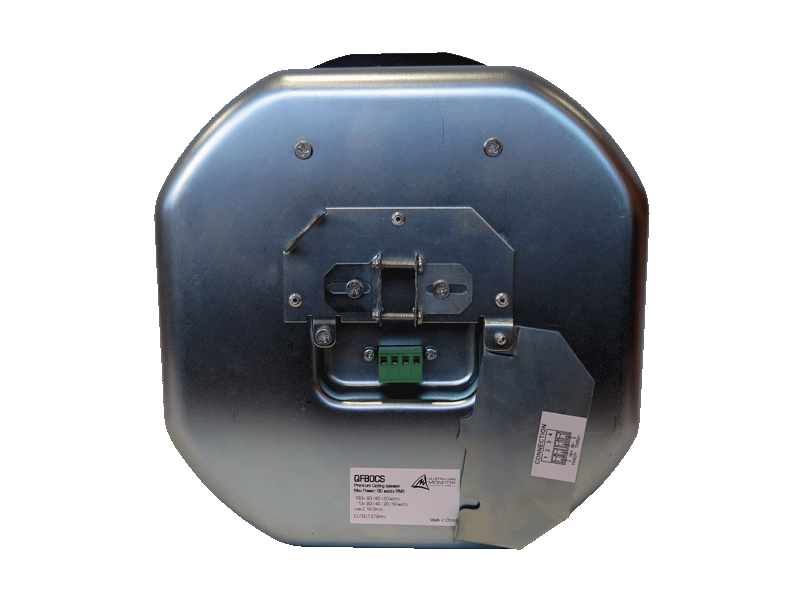

QF80CS Rear
QF80CS Frequency Response
QF80CS Polar Plot

QF80CS

Ceiling Speaker
80W sealed back can

When you need more power and solid bass response the QuickFit premium coaxial series of ceiling speakers are sure to exceed expectations. This premium series features two way coaxial drivers producing high SPL and detailed audio reproduction. The frameless magnetic grills allows easy removal of the grill for tapping changes and quick installation. Porting through the front baffle improves bass response and ensures detailed bass definition. The sealed back-can provides isolation in the ceiling space ensuring spill in the ceiling cavity is kept to a minimum.

If you require a black ceiling speaker it’s as easy as changing the grill. A black grill for each model can be purchased separately as an accessory.

EASE® GLL files simulation files are available for QuickFit ceiling speakers. EASE® is a registered trademark of AFMG Technologies GmbH

Quantity must be 1 or more


  • • 8 inch & 20mm coaxial high powered driver
    • QuickFit white frameless powder coated steel grill
    • Sealed steel back can
    • 20, 40, 80 watt taps @ 100V
    • 80 Watts @ 16 Ohms
    • Tile bridge included
  • Form Factor Ceiling Max Continuous Power 80W
    Tappings 80W-40W-20W-10W Max Program Power 160W
    IP Rating No Max Peak Power 240W
    EASE Model Yes SPL 1W/1m 90dB
    Powered Passive Max SPL RMS 109dB
    Driver Diameter 8" & 20mm Max SPL Peak 115dB
    Colour White Frequency Response (-3dB) 50Hz - 20kHz
    Warranty 5 years Dispersion 110deg
    Product Dimensions
    (W x D x H)
    308mm x 244mm Shipping Dimensions
    (W x D x H)
    348mm x 344mm x 270mm
    Net Weight 5.65 Kg Shipping Weight 6.2 Kg
    GTIN EAN 9323383019508
  • QF80CSGRILLB
    Speaker Grill
    Suitable for QF80CS
  • QF80CS Brochure

    QF80CS Manual

    QuickFit Family Brochure

    QF80CS Cutout Template

    QF80CS EASE Model
