QF8CSB Front

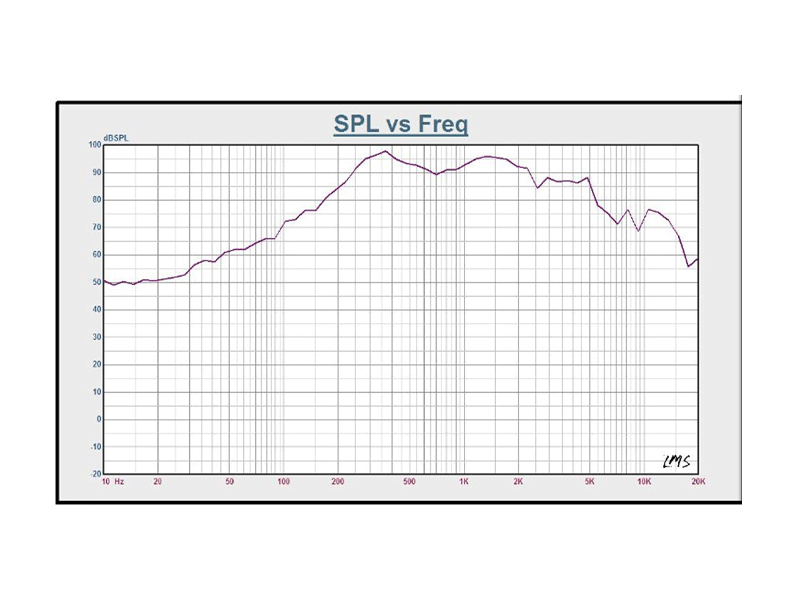

QF8CS Frequency Response

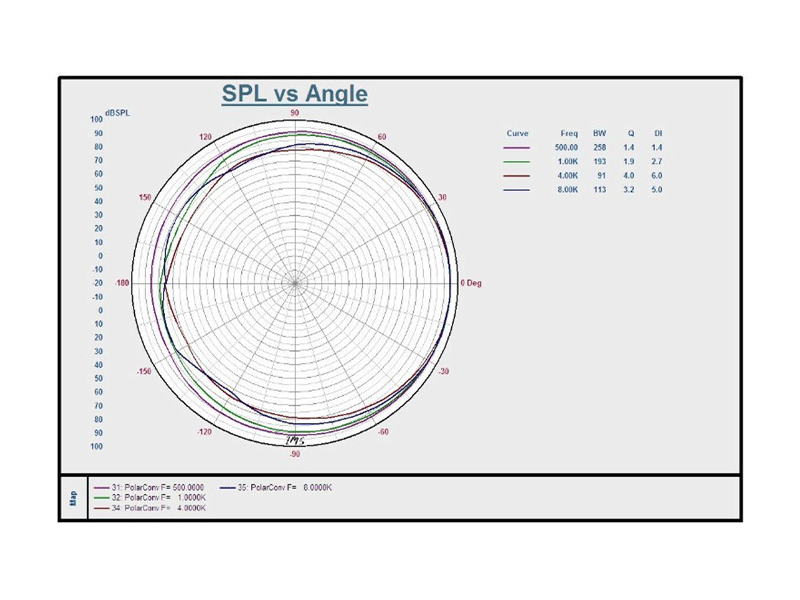

QF8CS Polar Plot

QF8CSB

Ceiling Speaker
15W 8 inch dual cone

The Australian Monitor QuickFit range of ceiling speakers has been an industry staple for over a decade. This refreshed series of QuickFit dual cone flush mount ceiling speakers are now better than ever. Offering improved voicing of these great products, refined toggle mounting system, and including all the information you need at your fingertips with a new cut out template providing wiring, wattage tapping and cut out information. Together these new and improved features provide an even better installation experience.

The QuickFit dual cone series QF5CS, QF6CS, QF6WRC, QF8CS and QF8CSB provide cost effective solutions for a myriad of commercial audio applications such as education, shopping centres, common areas, RSLs, clubs, restaurants, fire evacuation systems and many more applications that requires a reliable high quality affordable commercial ceiling speaker product. Each model also features a supervisory capacitor as standard to allow for evacuation system integration.

EASE® GLL files simulation files are available for QuickFit ceiling speakers. EASE® is a registered trademark of AFMG Technologies GmbH

Quantity must be 1 or more


  • • 8 inch dual cone driver
    • QuickFit black ABS plastic baffle and powder coated steel grill
    • 1.87, 3.75, 7.5, 15 watt taps @ 100V
    • Evac. capacitor as standard
  • Form Factor Ceiling Power Rating 15W
    IP Rating No Tappings 15W-7.5W-3.75W-1.87W-0.93W
    EASE Model Yes Frequency Response 80Hz - 20kHz
    Powered Passive Dispersion 100deg
    Driver Diameter 8" SPL 1W/1m 90dB
    Colour Black Warranty 5 years
    Product Dimensions 280mm x 80mm Shipping Dimensions 105mm x 280mm x 285mm
    Net Weight 1.4 Kg Shipping Weight 1.5 Kg
    GTIN EAN 9323383019478
  • QF8CSB Brochure

    QuickFit Family Brochure

    QF8CSB Cutout Template

    QF8CSB EASE Model
