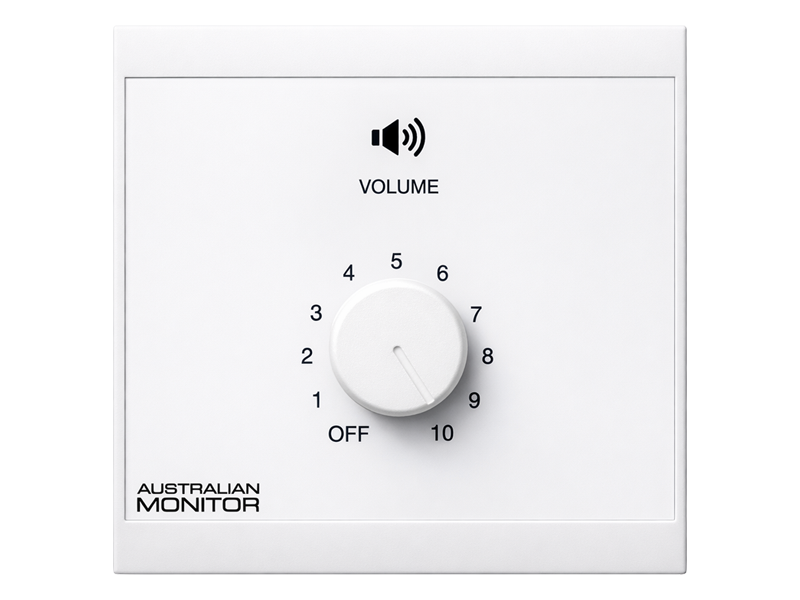

VC100-EU-W

100W Transformer Volume Control
with Evacuation Bypass Relay

70/100V, 100 watt transformer volume control in a EU/UK form factor.

It features 10 volume steps, an off position as well as a bypass relay.

WPBACKBOX-EU-W is available as an optional accessory for mounting on to solid wall surfaces.

Quantity must be 1 or more

  • • 100 watt capacity
    • Bypass relay fitted for evacuation systems
    • Screw terminal connections
    • 10 levels of volume control
    • Off position
    • WPBACKBOX-EU-W flush-mount back box available as an optional accessory


  • Function/s 10 step and off Output/s Screw Block Terminal
    Country Format AU/NZ Power Rating 100W
    Colour White THD+N N/A
    Warranty 5 years Signal to Noise Ratio N/A
    Input Voltage 70/100V
    Product Dimensions
    (W x D x H)    		 86mm x 86mm x 73.5mm Shipping Dimensions
    (W x D x H)    		 156mm x 132mm x 101mm
    Net Weight 280g Shipping Weight 0.4 Kg
    GTIN EAN 9323383022621

  • VC100-EU Brochure

    VC100-EU Manual

    VC100-EU Disassembly Guide
