VC50

50W Transformer Volume Control
with Evacuation Bypass Relay

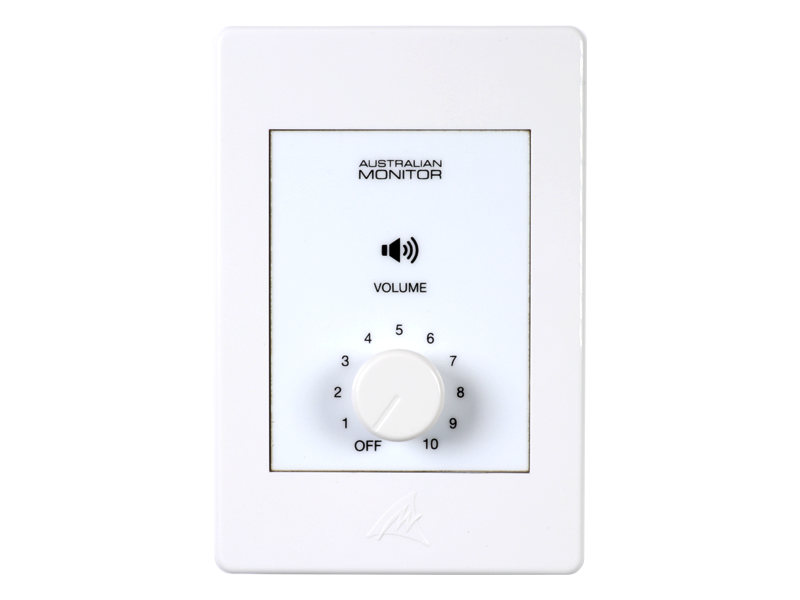

70/100V, 50 watt transformer volume control mounted on a HPM VIVO style wall plate.

It features 10 volume steps, an off position as well as a bypass relay.

Easy and quick to install.

Quantity must be 1 or more

  • • 50 watt capacity
    • Bypass relay fitted for evacuation systems
    • Screw terminal connection terminals
    • 10 levels of volume control
    • Off position

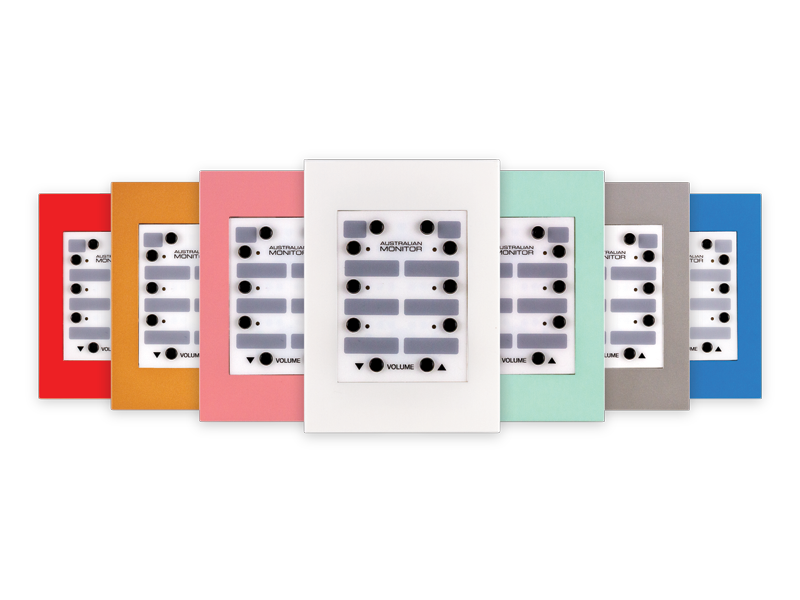

    CUSTOMISE THE LOOK WITH HPM® VIVO™ COVER PLATES

    The VC50 is compatible with HPM® VIVO™ cover plates allowing up to 13 additional colour options to be created.

    Simply replace the included cover plate with the alternative colour desired for a unique colour solution.


  • Function/s 10 step and off Output/s Screw Block Terminal
    Country Format AU/NZ Power Rating 50W
    Colour White THD+N N/A
    Warranty 5 years Signal to Noise Ratio N/A
    Input Voltage 70/100V
    Product Dimensions
    (W x D x H)    		 82mm x 121mm x 62mm Shipping Dimensions
    (W x D x H)    		 156mm x 132mm x 101mm
    Net Weight Shipping Weight 0.4 Kg
    GTIN EAN 9323383020573

  • VC10, VC25, VC50, VC100 Manual

    Wall Panel Mounting Hardware Guide
