The WPML is an active audio input wall panel with XLR, RCA and 3.5mm input connector options. The XLR input can be selected to operate as either a microphone or line level input, the RCA and 3.5mm input are fixed to line level.
The inputs are mixed and converted to a balanced line level stereo or mono output.
Rear selector switches allow,
• Selecting stereo or mono output mode
• Enable/Disable 24V phantom power in microphone mode
• Enable/Disable -6dB output attenuation
The WPML comes with two facia labels allowing installation in landscape or portrait view.
Additionally, the wall panel is compatible with HPM® VIVO™ cover plates allowing up to 13 additional colour options to be created. Simply replace the included cover plate with the alternative colour desired for a unique colour solution.
• XLR, RCA and 3.5mm input options
• XLR Microphone or Line level input selector
• 24V phantom power in microphone mode (defeatable)
• Balanced euroblock audio output
• Stereo or mono output mode
• -6dB attenuator setting
• Can be used with the WP-BREAKOUT for easy powering and audio conversion
• Also available in black. WPML-B

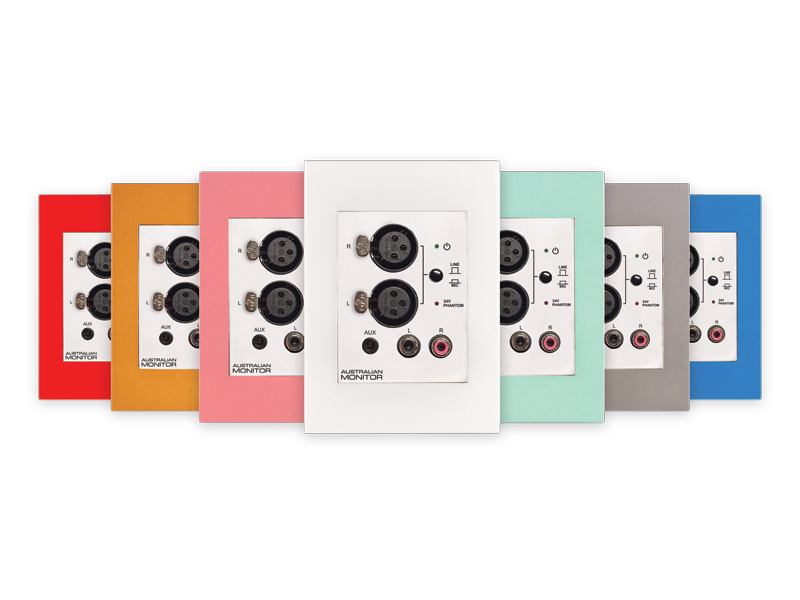

CUSTOMISE THE LOOK WITH HPM® VIVO™ COVER PLATESThe WPML is compatible with HPM® VIVO™ cover plates allowing up to 13 additional colour options to be created.
Simply replace the included cover plate with the alternative colour desired for a unique colour solution.
Output Channels Stereo or Mono Frequency Response Audio Formats Balanced Audio THD+N Input Voltage 15-24Vdc Signal to Noise Ratio Mounting Wall FM Frequencies Warranty 5 years DAB+ Frequencies Product Dimensions
(W x D x H)
(W x D x H)
156mm x 132mm x 101mm Net Weight Shipping Weight GTIN EAN
