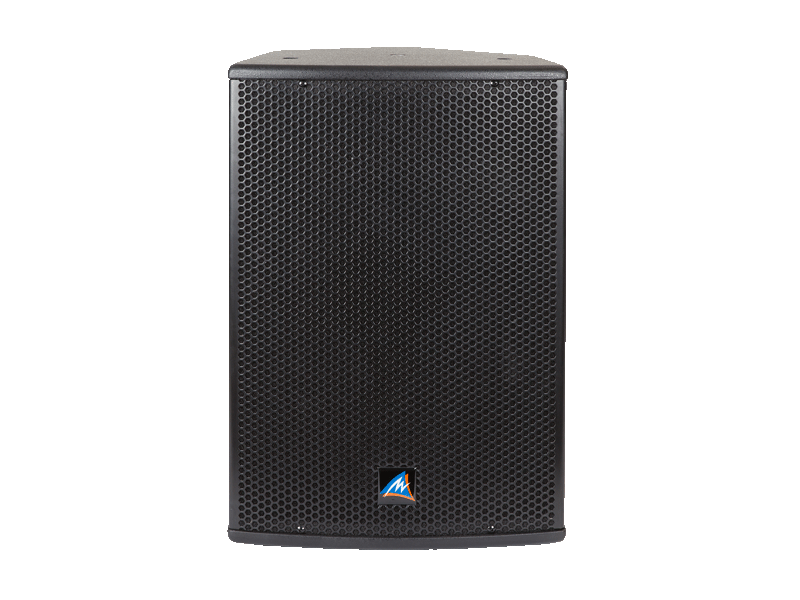

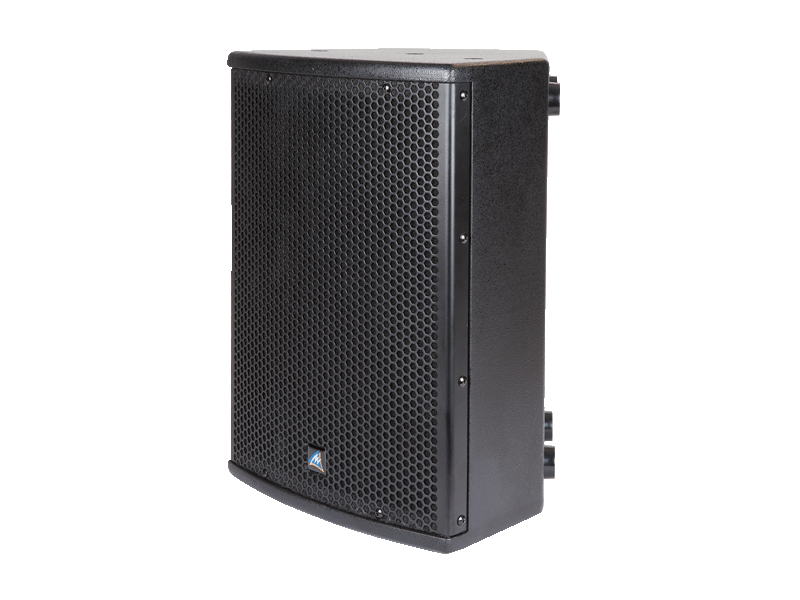

XDS8

XDS8

8 inch Passive Speaker
100W, Black

The XDS Range of speaker enclosures represent our top of the line offering from Australian Monoitor. They can be used in either front of house applications or as foldback monitors and have been acclaimed for their musical fidelity for use in bands or as general sound reinforcement enclosures.

The XDS8 is a powerful speaker that could be used as a balcony fill speaker right throght to a small solo or duo musical application. XDS, sound that will amaze you!

Quantity must be 1 or more


  • • 8” woofer and 1.35” compression driver
    • RMS power is 100 Watts / Program power 200 Watts
    • M10 fly points
    • M10 rear bracket wall mount point
    • 35mm stand boot

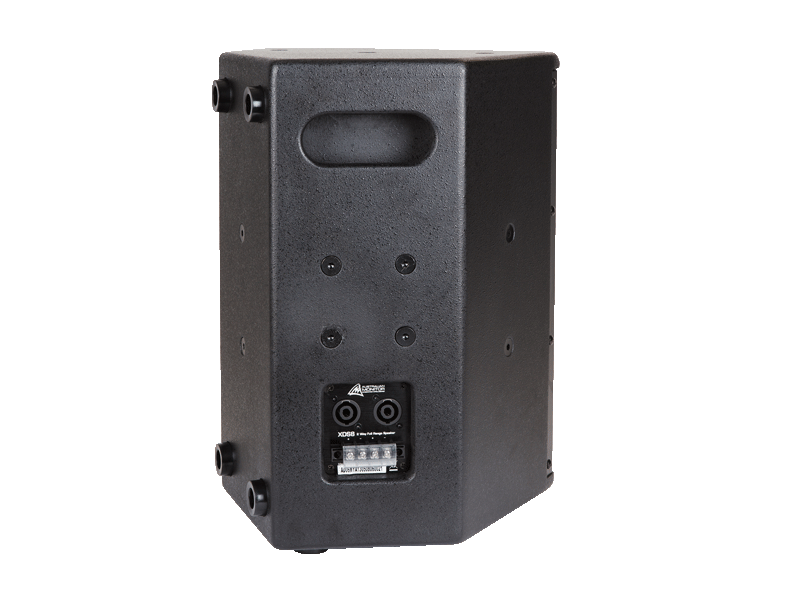

    • Connection via a pair of 4 pole Speakon or screw terminal block
    • Recessed carry handle
    • U Bracket available
    • Rubber feet fitted
    • Can be used as foldback wedge
  • Form Factor Box Max Continuous Power 100W
    Tappings 8 Ohm Max Program Power 200W
    IP Rating No Max Peak Power 400W
    EASE Model No SPL 1W/1m 92dB
    Powered Passive Max SPL RMS 112dB
    Driver Diameter 8" & 1.5" Max SPL Peak 118dB
    Colour Black Frequency Response (-3dB) 80Hz - 20kHz
    Warranty 5 years Dispersion 100 x 100deg
    Product Dimensions
    (W x D x H)
    293mm x 284mm x 408mm Shipping Dimensions
    (W x D x H)
    350mm x 350mm x 470mm
    Net Weight 10 Kg Shipping Weight 11.5 Kg
    GTIN EAN 9323383012639

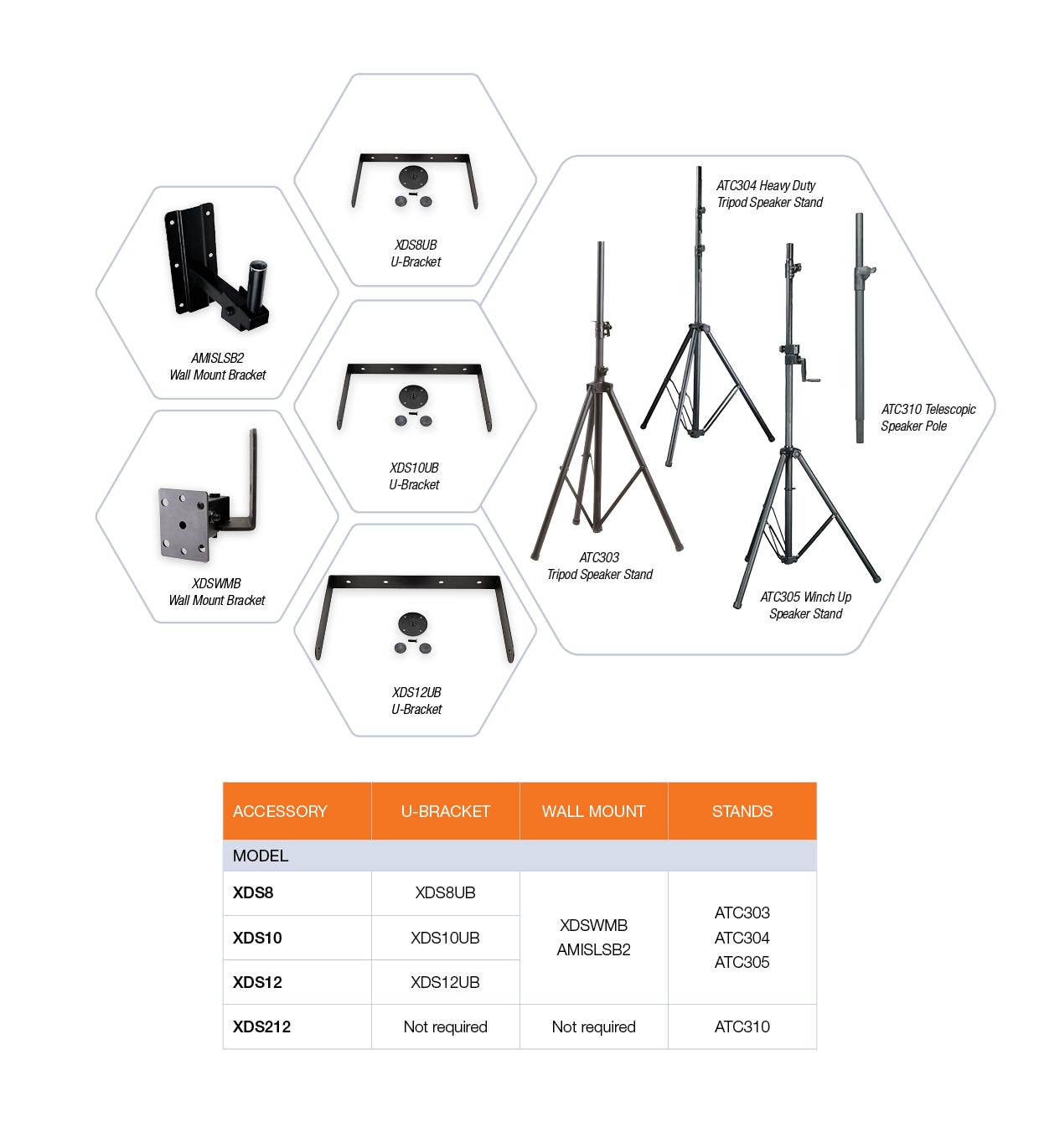

  • XDS8UB
    U Bracket for XDS8
    XDSWMB
    Wall Bracket Kit
    for use with XRS8, XRS10 and XRS12
    AMISLSB2
    Speaker wall bracket
    35mm Pole mount
  • XDS8 Brochure

    XDS8 Manual
