ZONED OUT
6 Zone Speaker Selector
The ZONED OUT takes a single 100V line output and sends it to 6 switchable speaker zones.

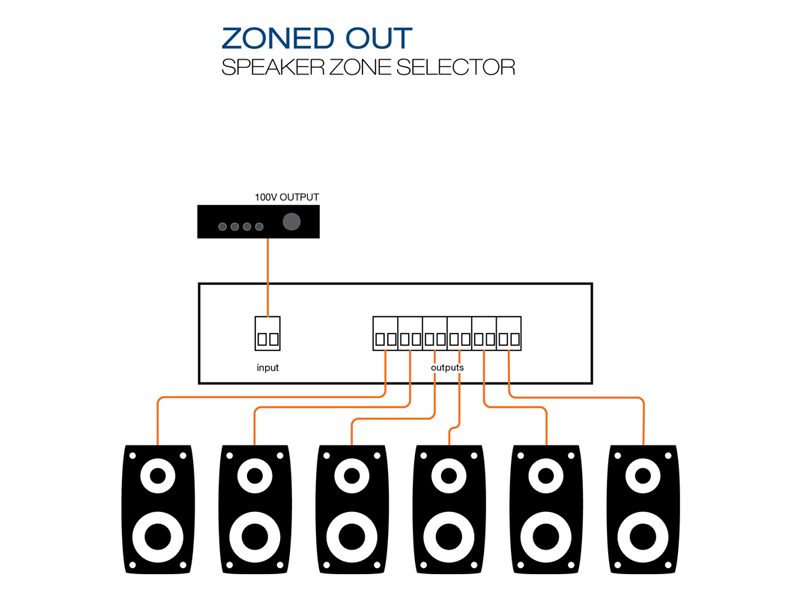

Simply connect the 100V output from your amplifier to the input of the ZONED OUT and connect your additional zone speakers to the ZONED OUT outputs.
-
• 100 volt output switcher
• 6 Zone outs
• Rating: 150W(100V), 105W(70V). (Condition: Amplifier delivering maximum 1/3rd continuous rms power)
-
Function 6 Zone Speaker Selector Features Channel selector Input Terminal Block Output Terminal Block PSU Input Voltage N/A Product Input Voltage N/A Colour Blue Warranty 5 years Product Dimensions
(W x D x H)144mm x 124mm x 47mm Shipping Dimensions
(W x D x H)246mm x 126mm x 62mm Net Weight 0.5 Kg (Max) Shipping Weight 0.6 Kg GTIN EAN 9323383014060
