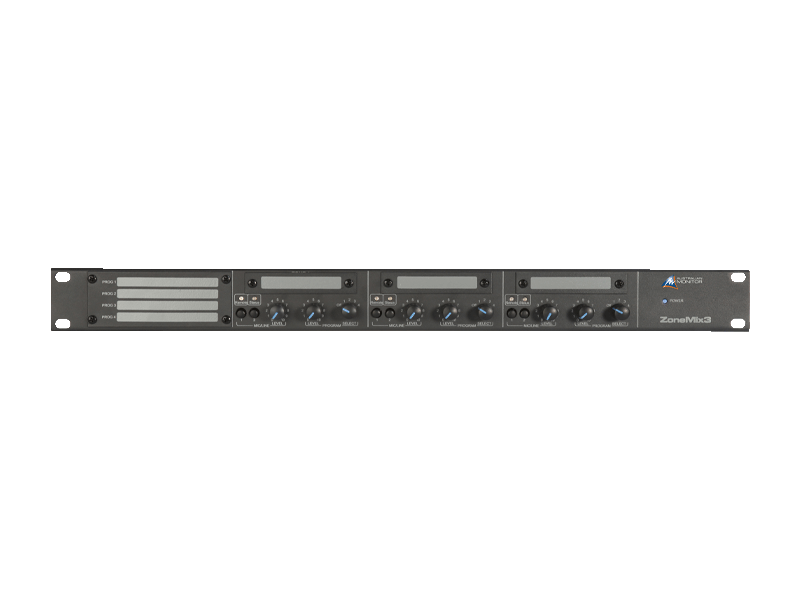

ZONEMIX3 Front
ZONEMIX3 Front Nocover

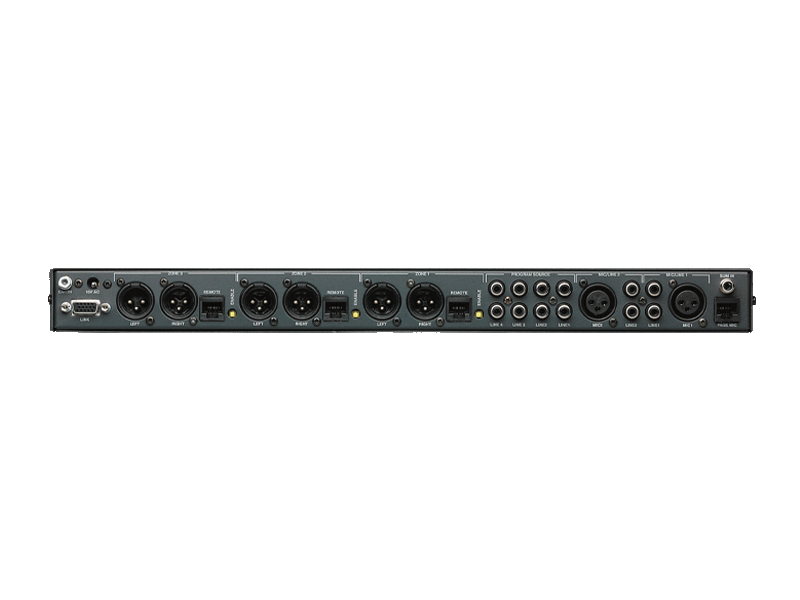

ZONEMIX3 Rear

ZONEMIX3

Zone Mixer
3 stereo zone outputs

The ZONEMIX3 is an extremely versatile & innovative mixer & signal router. Featuring broadcast quality audio specs, the Zone Mix 3 allows remote selection of 4 stereo sources to 3 stereo zones, one stereo source can have selectable priority per zone & each stereo zone boasts 5 stage equalization.

The ZONEMIX3 also has the ability to route two independent mic or line signals to any single zone or combination of zones.

Add to this remote volume control & source selection in each zone via the ZM3R remote & the ZM3M 3 zone paging microphone (both running via inexpensive CAT5 cabling) & you have an extremely high quality Zone selecting mixer.

Quantity must be 1 or more


  • • High spec stereo zone mixer – foreground or background music
    • 4 stereo and 2 mic/line inputs assignable to all/any outputs
    • 3 stereo zone outputs
    • Five stage EQ per zone
    • Link output for a second unit (6 stereo zones)
    • Optional remote source and volume selection per zone via CAT-5 cable
    • Optional remote paging microphone via CAT-5 cable
    • Integral security covers for EQ and gain sections of the Zone Mix 3
  • Zones 3 Stereo or Mono Paging Stations Connected 1
    Program Inputs 2 MIC or Line. 4 Stereo Paging Station P/N ZM3M
    Local Inputs No Remote Source Control ZM3R
    Tones Yes Mounting 1RU
    Input Voltage 230Vac 50-60Hz Warranty 5 years
    Product Dimensions
    (W x D x H)
    482mm x 286.5mm x 44mm Shipping Dimensions
    (W x D x H)
    525mm x 415mm x 111mm
    Net Weight 2.5 Kg Shipping Weight 6.4 Kg
    GTIN EAN 9323383014091
  • ZM3M
    Remote Microphone Paging Station
    ZM3R
    Remote Source and Volume Control
  • ZONEMIX3 Brochure

    ZONEMIX3 Manual
