PICOBLU60
60W Mixer Amplifier
Small Form Factor, Bluetooth, USB

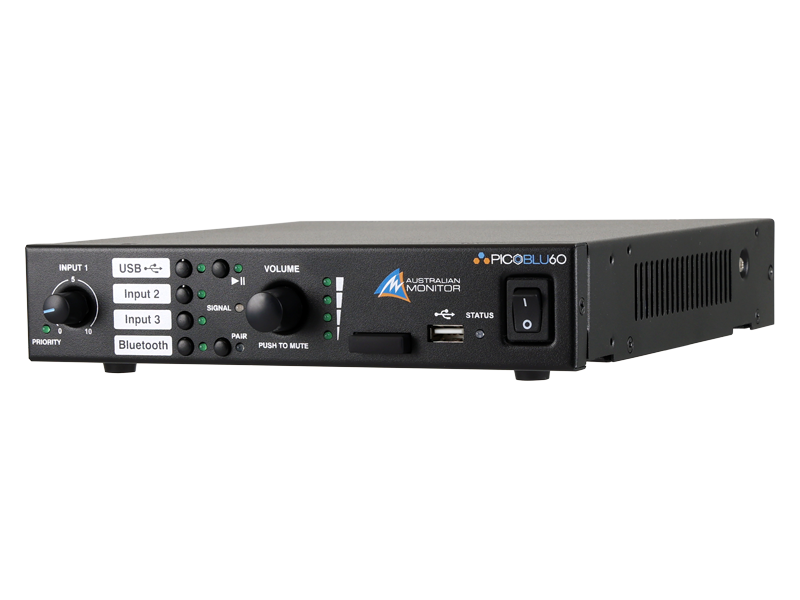

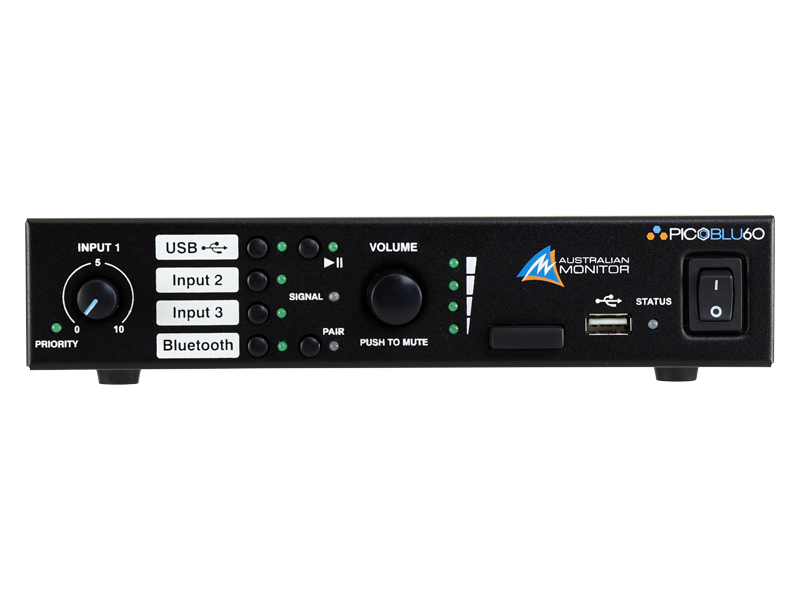

The Australian Monitor PICOBLU60 is an all-in-one, compact half-rack 60 W mixer amplifier, designed specifically for small-space applications such as cafés, restaurants, retail environments, and classrooms.
The PICOBLU60 features five audio inputs, including a microphone input, multiple line inputs, a programmable Bluetooth® v5.1 audio receiver, and a USB media player. These inputs feed a two-channel mixer that allows Input 1 to be mixed with any one of Inputs 2 through 5, providing flexible source selection.
The integrated 60W power amplifier supports both 4Ω low-impedance and 100V line output modes, making it suitable for a wide range of installation scenarios.

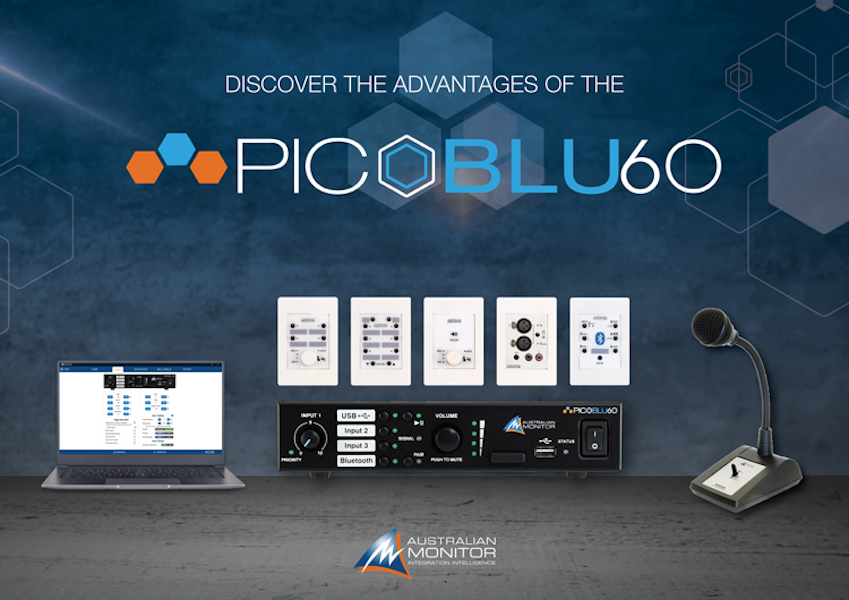

For enhanced system control, up to four remote programmable wall panel controllers (WPVOL,WP4R, WP10,WP4S) can be connected, along with a remote audio input (such as the WPML) via the accessory port.
With options for standalone, rack, or under-desk mounting using optional kits, the PICOBLU60 offers versatile installation to suit virtually any application environment.
-
• 60W mixer amplifier
• 100V or 4Ω output
• 2 Channel Mixer with 5 Inputs. Input 1 - MIC/Line, Input 2 -Line, Input 3 - Line/Acc Port, Input 4 - Bluetooth, Input 5 - USB
• Programmable Bluetooth name, PIN and security features
• USB Media/Message Player
• Supports up to four wall panel controllers, WPVOL-W, WP4R-W, WP10-W, WP4S-EU-W, WPML-W
• Paging station support using an AMX526
• Software configurable contact closure for Paging Chime, System Muting, Bluetooth Pairing or File Playback
• ASTRA control software for system configuration and customisation
• Rack or desk mounting kits options. PICO-RMK and PICO-DMK.

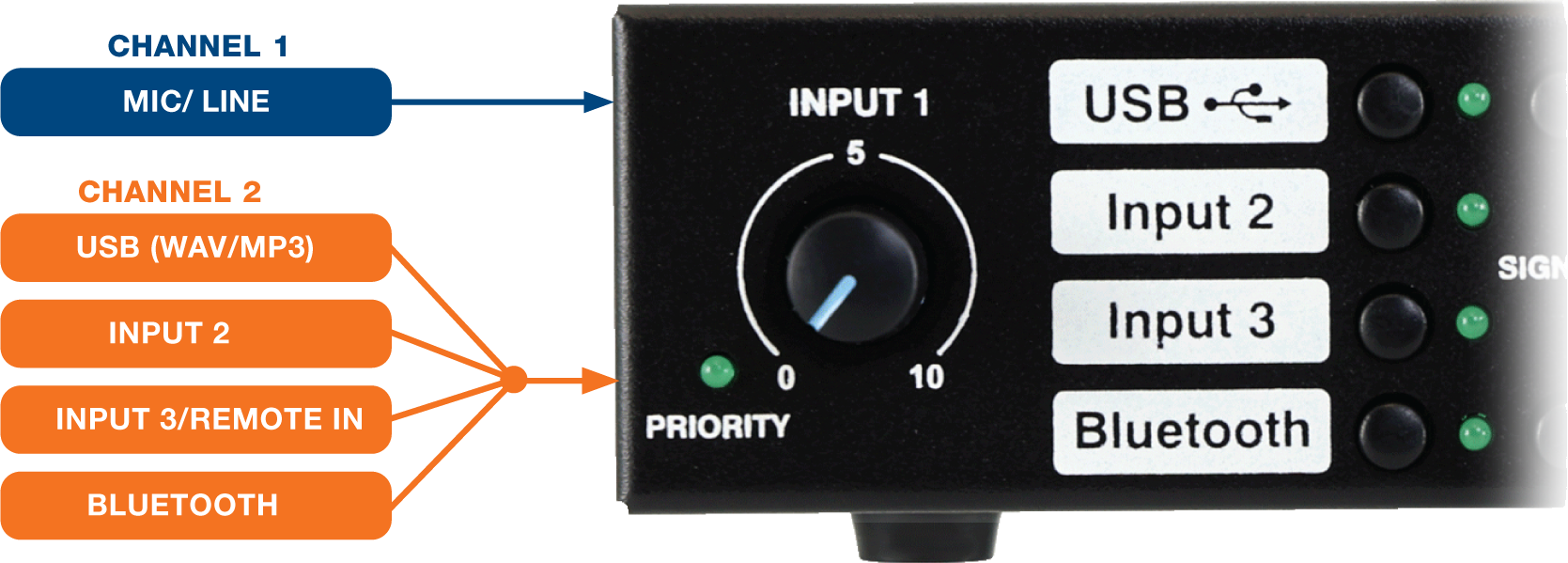

2 Channel Mixer - 5 Input Sources
The PICOBLU60 is a 2 channel mixer.
Channel 1 uses Input 1’s microphone or line input.
Channel 2 uses any one of the following inputs -
• Input 2 rear RCA line level input.
• Input 3 rear RCA input or the accessory port input
• Input 4 Bluetooth® audio input.
• Input 5 USB inputASTRA CONTROL SOFTWARE

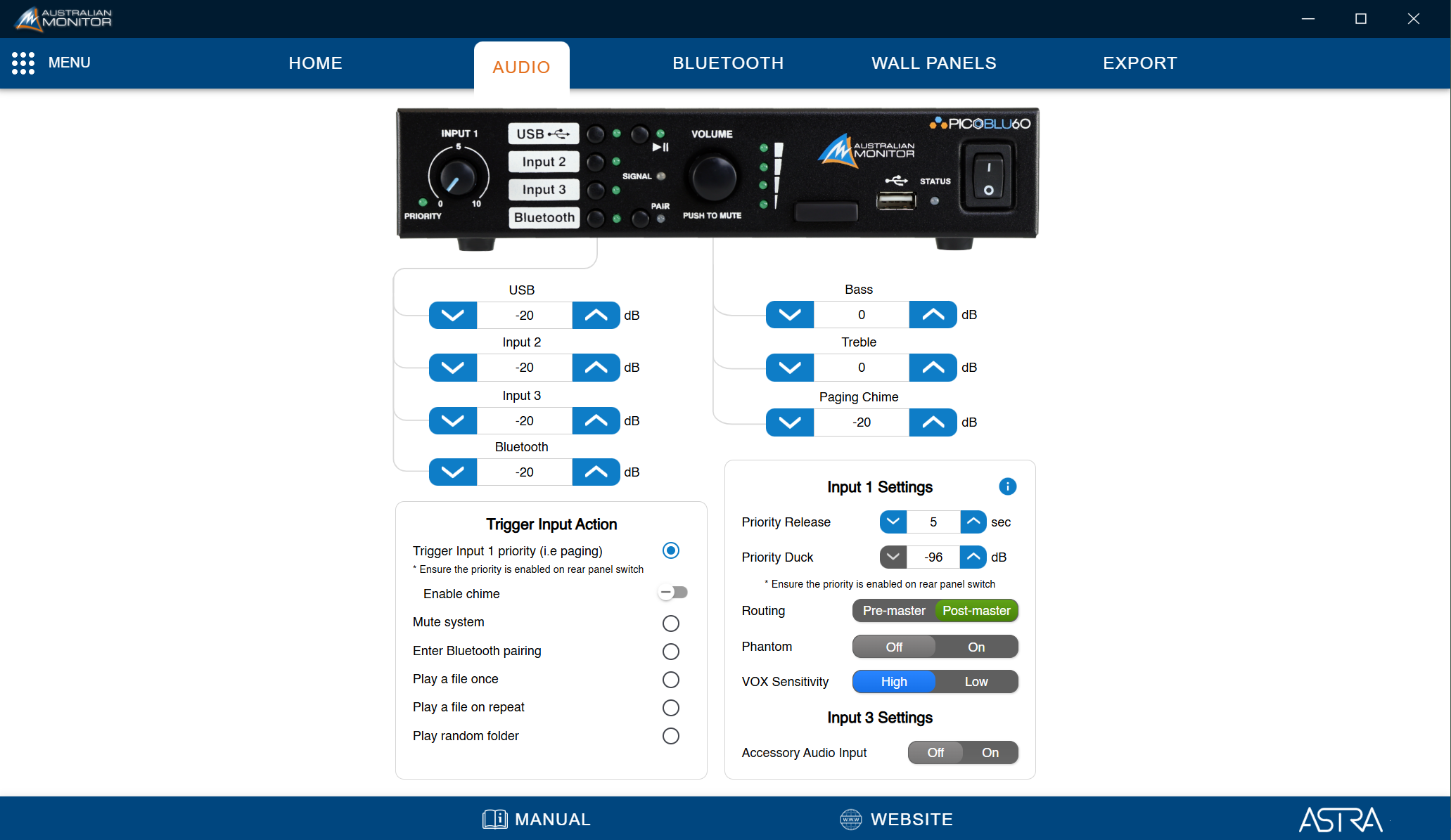

The free ASTRA software allows the PICOBLU60 to be customised with the following features,
• Audio levels
• Priority input control
• Bluetooth settings. Name, PIN etc
• Wall panel customisation
• Trigger input action
• Import/Export settings

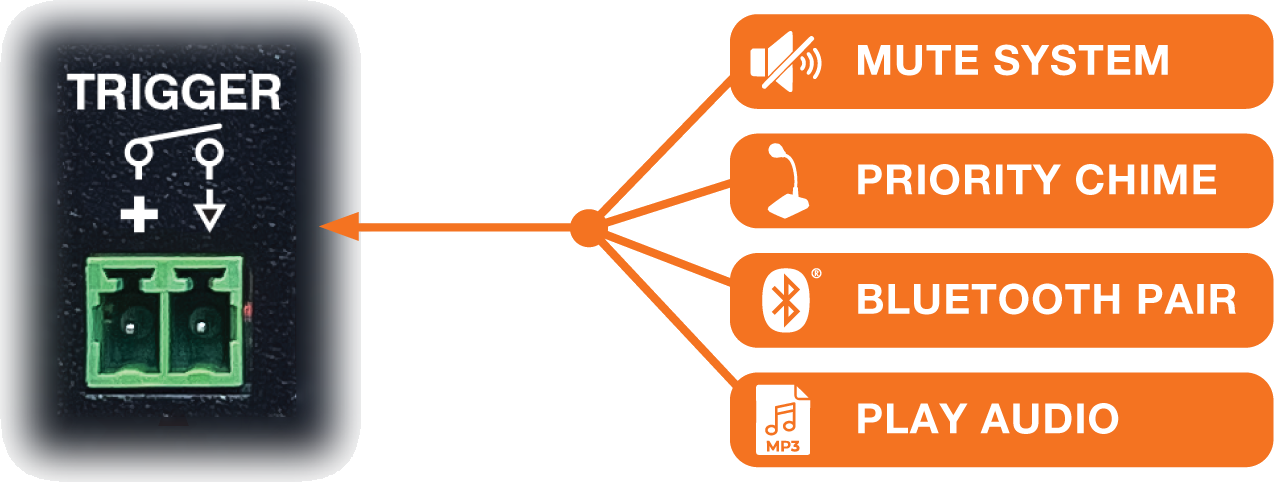

TRIGGER INPUT
The PICOBLU60 has a programmable trigger input to cater for various installation requirements,
• Mute system for fire alarm panels
• Trigger priority and play a chime for paging
• Trigger remote Bluetooth pairing
• Play audio file/s or folders

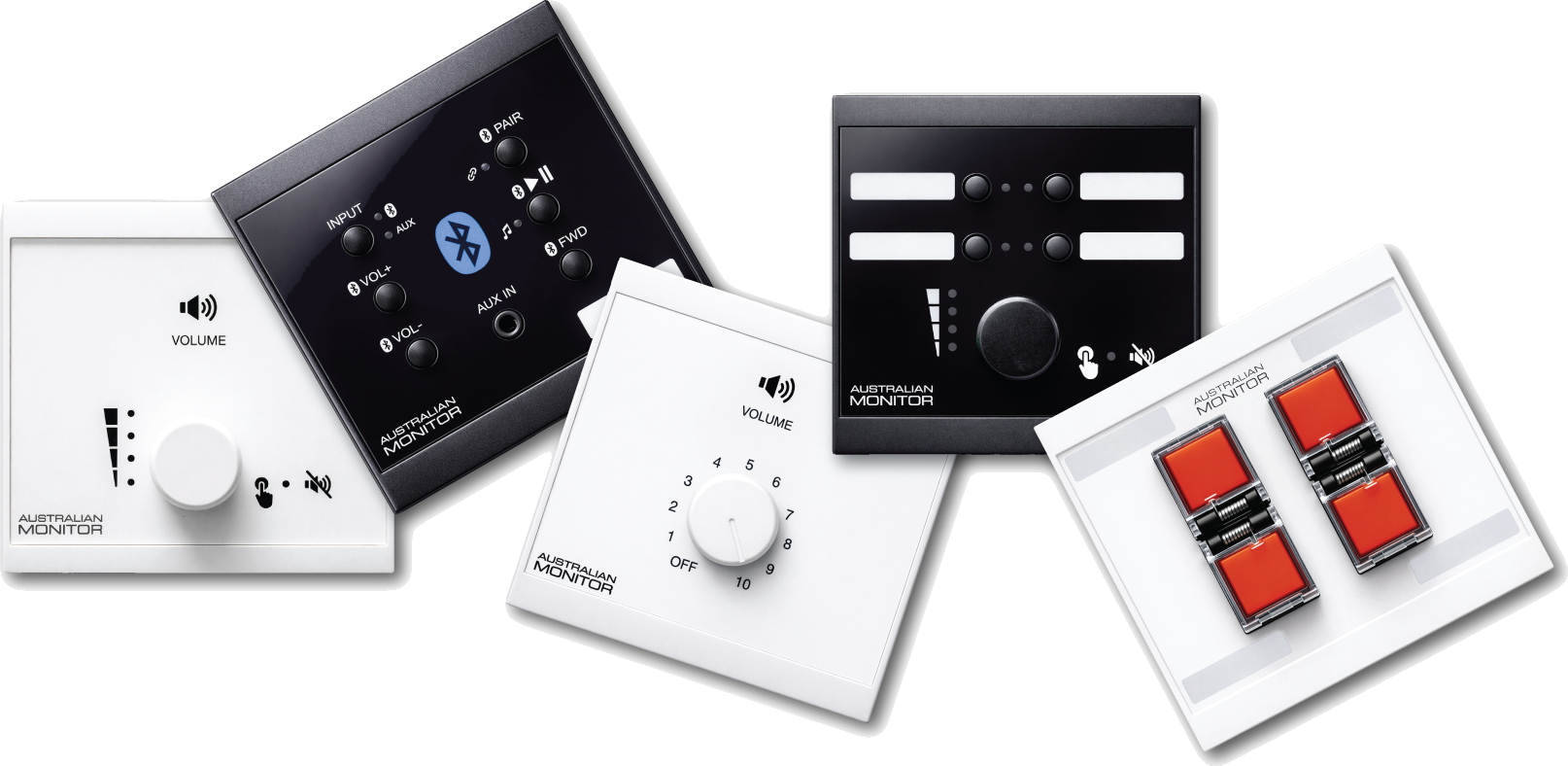

WALL PANELS
Expand the control and features of the system by adding wall panels to the accessory port. Functions available include,
• Enabling/Disabling audio sources
• Bluetooth pairing and audio playback
• USB media controls
• Play a Message from the USB stick

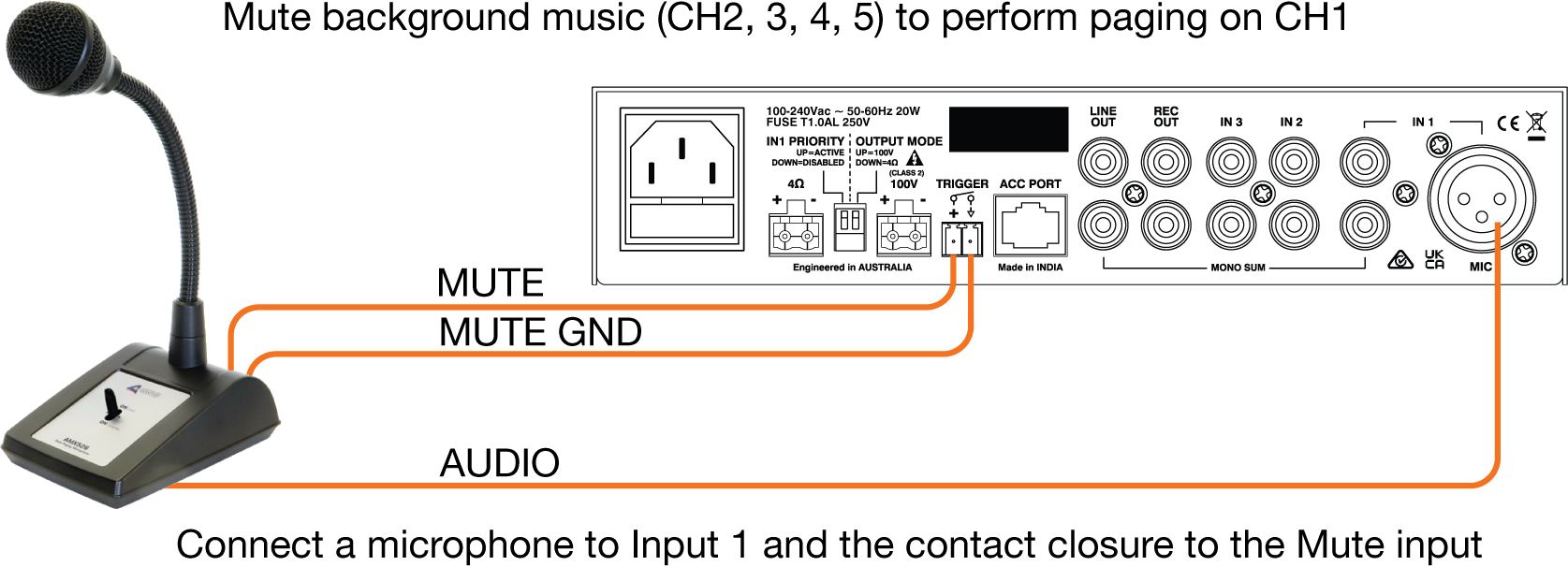

PAGING SOLUTION
Partner the AMX526 paging station with the system to create a complete paging solution.
A pre announce chime can be optionally played before the page, and this chime can also be customised by placing a file on a user supplied USB stick.
-
Output Power per Channel 60W Frequency Response 60Hz - 20kHz Output Mode 4 Ohm-100V THD+N < 0.05% Input Channels 1 MIC/Line / 2 Line / BT / USB Signal to Noise Ratio > 90dB Input Voltage 100-240Vac 50-60Hz Input Sensitivity MIC: 7.5mV - Line: 200mV Mounting 1RU Cooling Convection Warranty 5 years Product Dimensions
(W x D x H)217mm x 265mm x 44mm Shipping Dimensions
(W x D x H)370mm x 320mm x 122mm Net Weight 2.2 Kg Shipping Weight 3.1 Kg GTIN EAN 9323383020283 -
The default PIN number is 2626 but can be changed using the Bluetooth Control SoftwareYes.
Use the Bluetooth Control Software to program the Bluetooth module with the required name.The Bluetooth 5.1 range is up to 200m.(Direct line of site) Walls and obstacles will reduce this distance.Check that the priority is not active or that the trigger has not been activated to mute the system.
