DM4x4

Dante® Expansion Card
4 Input, 4 Output

Dante® expansion card for use with the IS series of power amplifiers.

Provides 4 inputs channels from a Dante network which can be routed to any amplifier output channel.

In addition, 4 Dante® outputs channels are available to route any analogue inputs back on to the network.

Quantity must be 1 or more


  • • 4 Input Channels
    • 4 Output Channels
    • Simple expansion slot install using a ribbon cable
    • Dante® network setup is performed using the Dante® Controller software from Audinate.

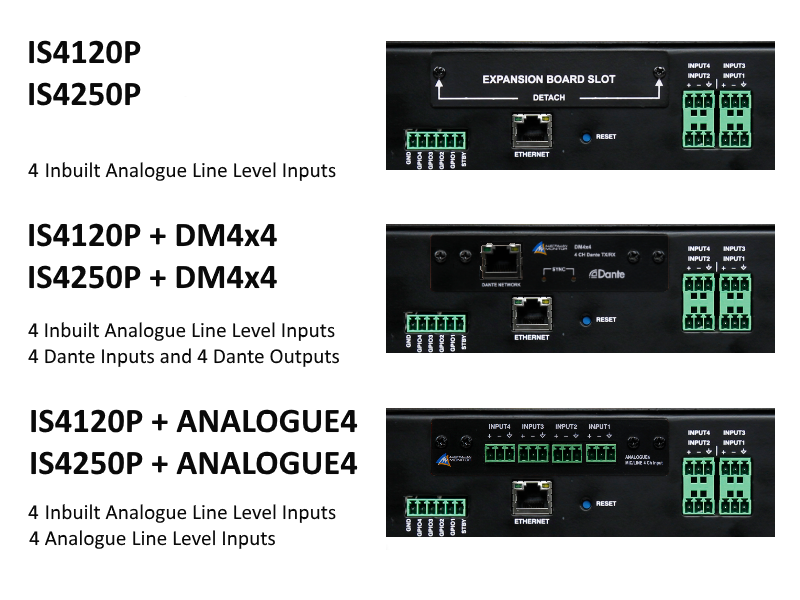

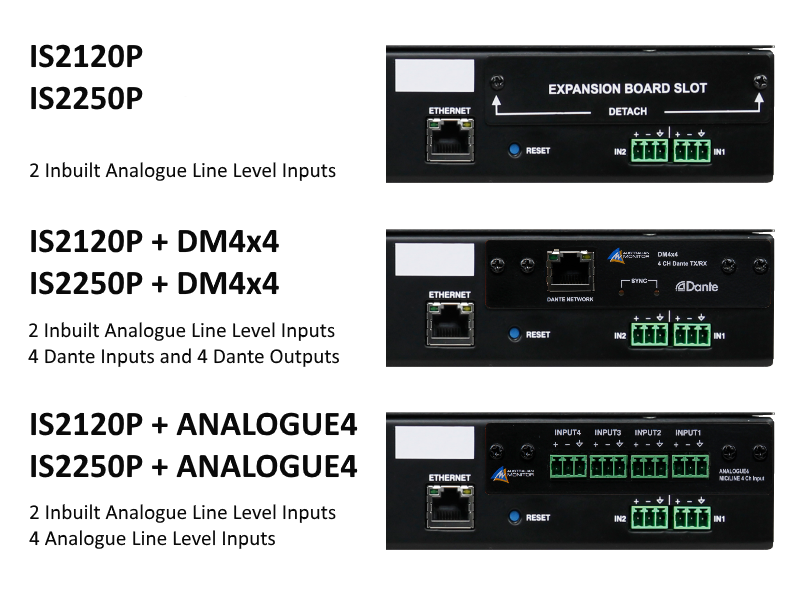

    • Compatible with IS2120P, IS2250P, IS4120P, IS4250P

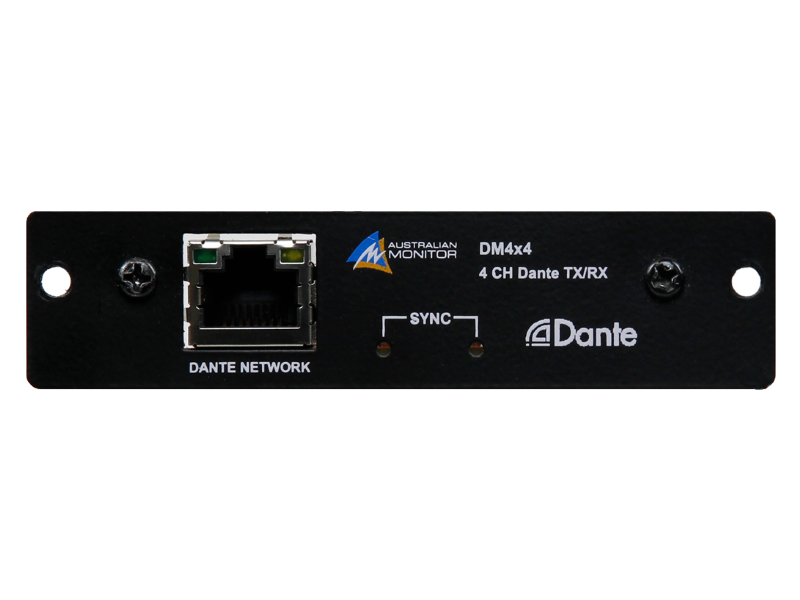

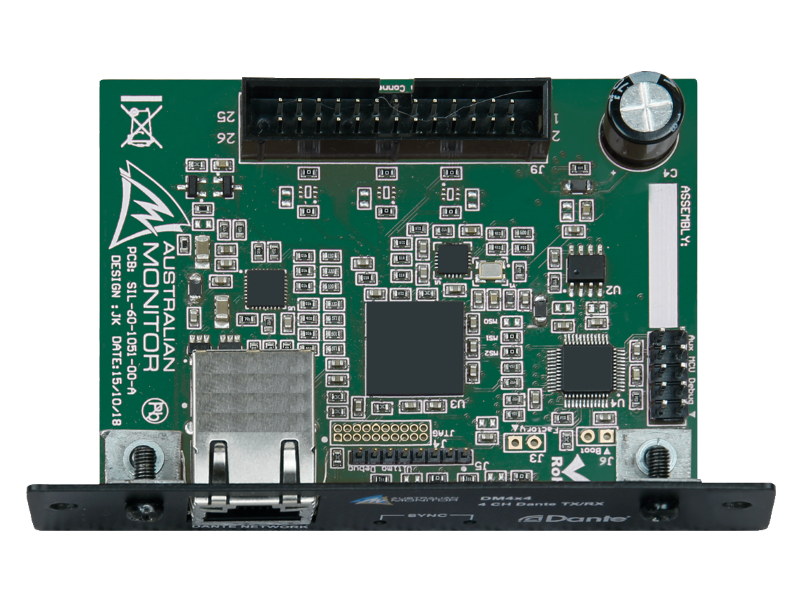

    DM4x4 Module


    Expand the capabilities of ISP amplifiers with the optional DM4x4 Module.
    The DM4x4 provides 4 Dante™ Input channels and 4 output channels.

    Easy Installation

    The DM4x4 module is very simply installed into a compatible product.

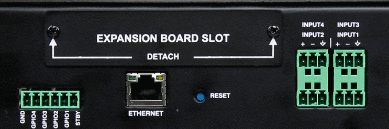

    Simply remove the rear expansion slot blanking plate, connect the internal ribbon cable to the module and attach the two mounting screws.

    Dante Output Channels

    4 Dante® output channels provide a powerful capability to transmit audio mixer channels to other Dante® enabled products on the network.

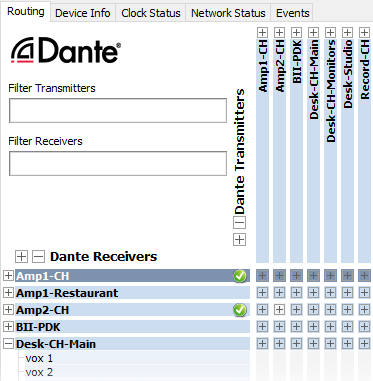

    Dante® Controller

    Configure the Dante® network using the Dante® Controller software from Audinate.
    Simply connect the DM4x4 module to the network and it will appear on the Dante® controller under available devices.
    Using the controller software connect the ISP amplifier inputs and outputs to other available devices on the Dante® network.

  • Output Power per Channel N/A Frequency Response N/A
    Output Channels N/A THD+N N/A
    Output Mode N/A Signal to Noise Ratio N/A
    Input Voltage N/A Input Sensitivity N/A
    Mounting N/A Cooling N/A
    Warranty 5 years
    Product Dimensions
    (W x D x H)
    Shipping Dimensions
    (W x D x H)
    Net Weight Shipping Weight
    GTIN EAN 9323383020016
