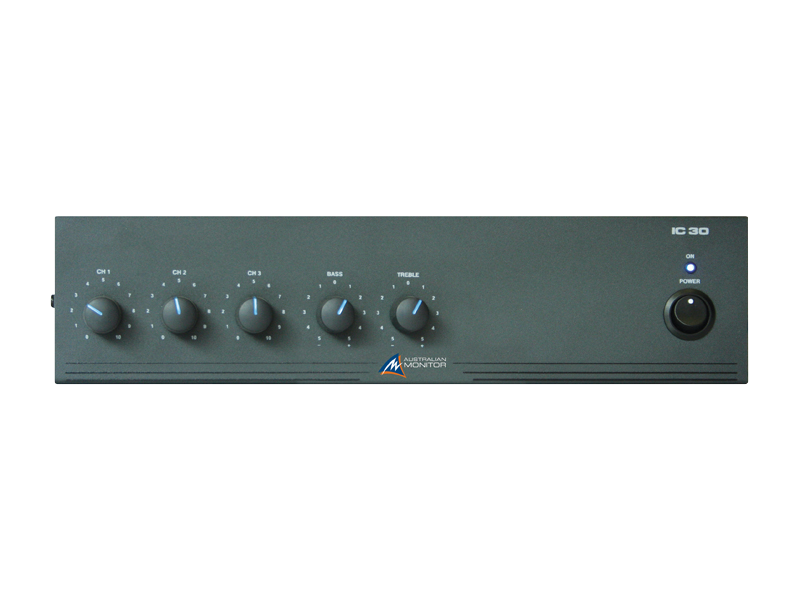

IC30 Front

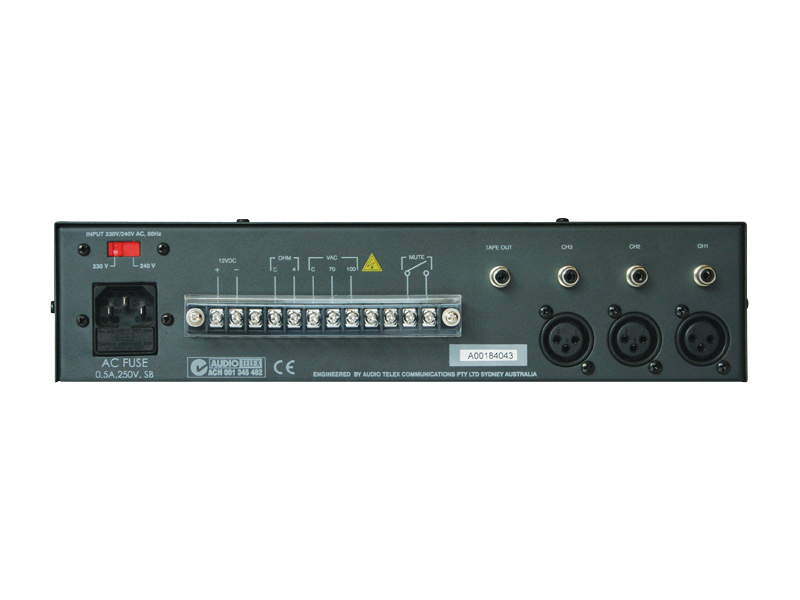

IC30 Rear

IC30

30W Mixer Amplifier
Compact Form Factor

The IC30 is the compact workhorse of the mixer amp range, delivering 30 watts with a simple 3 input mixer and single stage priority the IC30 is a compact and reliable mixer amplifier.

Shelf mountable or rack mountable with the addition of the IC30RMK.

VOX muting available with the optional TX3010 module.

Quantity must be 1 or more


  • • 3 Dual balanced microphone/line inputs
    • Auto Limiting
    • 240VAC/12VDC operation
    • Shorting/Vox mute (Vox mute via optional TX3010 Module)
  • Output Power per Channel 30W Frequency Response 70Hz - 15kHz
    Output Mode 4 Ohm-100V THD+N < 0.3%
    Input Channels 3 MIC or Line Signal to Noise Ratio > 68dB
    Input Voltage 230/240Vac 50Hz Input Sensitivity MIC: 1mV - Line: 150mV
    Mounting 1RU Cooling Convection
    Warranty 5 years
    Product Dimensions
    (W x D x H)
    303mm x 180mm x 76mm Shipping Dimensions
    (W x D x H)
    365mm x 284mm x 170mm
    Net Weight Shipping Weight 6.0 Kg
    GTIN EAN 9323383019904
  • TX3010 - Discontinued
  • IC30 Manual
