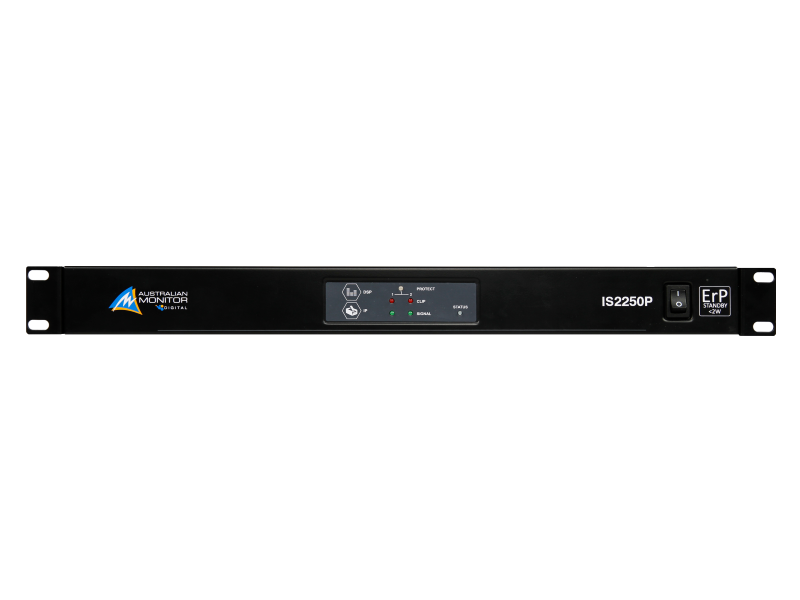

IS2250P
Ethernet, DSP, Dante® Support
The ISP series is Australian Monitor's premium offering of multichannel Class D power amplifiers, delivering high quality audio reinforcement in the following options - Dual channel 120W or 250W and Quad channel 120W or 250W.
Featuring Ethernet control, Full Featured DSP, ErP Low Power Standby, Dante® support and efficient Class D amplifiers.
The ISP also features ALMA Control Software which allows you to connect, configure and control the product from any device supporting an HTML5 compliant web browser.
Configuration Options:
• IS2250P - 2 inbuilt line level inputs
• IS2250P + DM4x4 - 2 inbuilt line level inputs plus expansion slot of 4 Dante Inputs and 4 Dante Outputs
• IS2250P + ANALOGUE4 - 2 inbuilt line level inputs plus expansion slot of 4 line level inputs
-
• 2 x 250W power amplifier
• 4 ohm, 70V and 100V output options

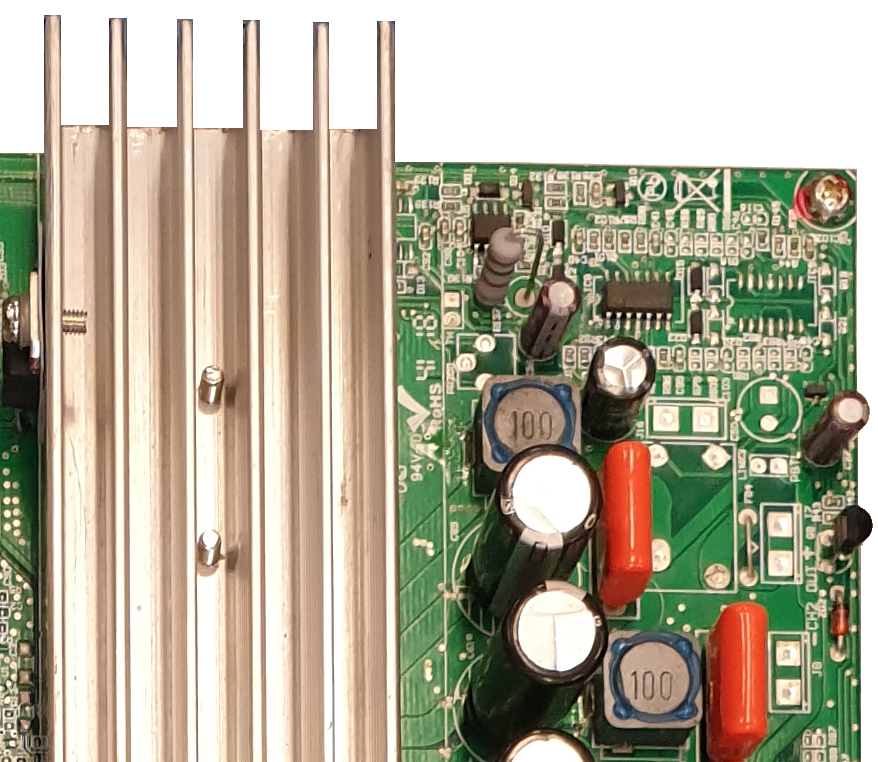

• Class D topology

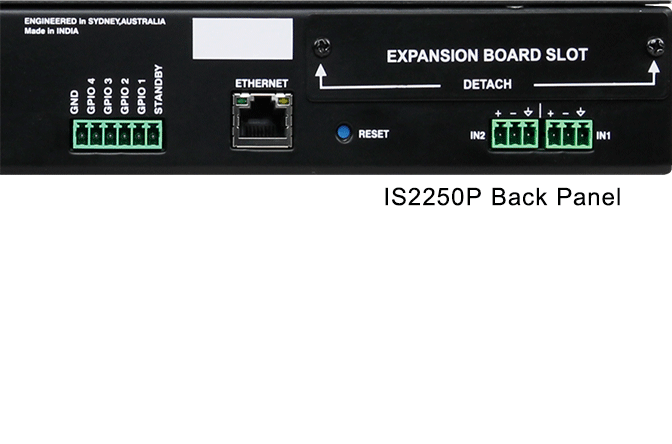

• Ethernet Control

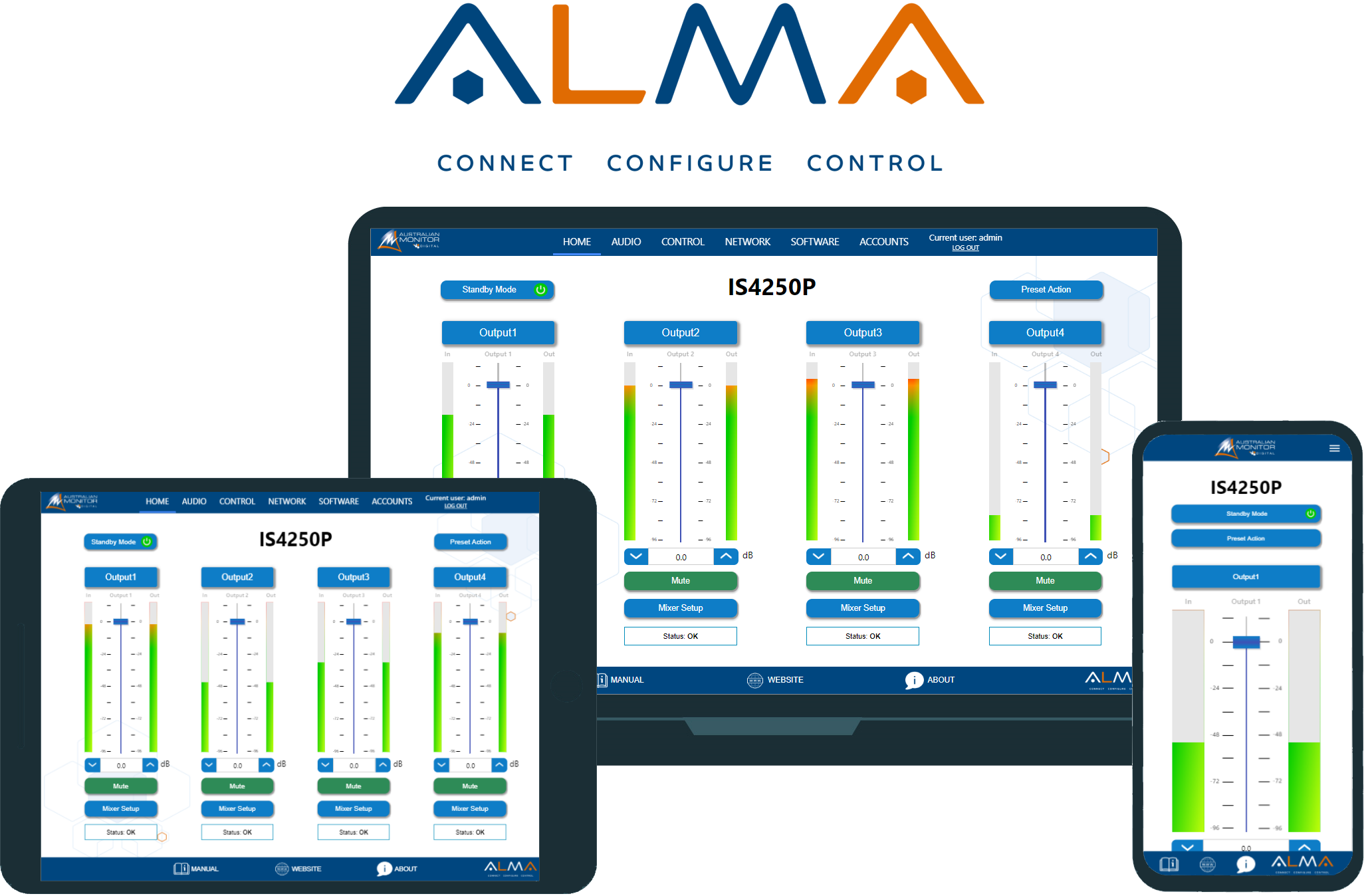

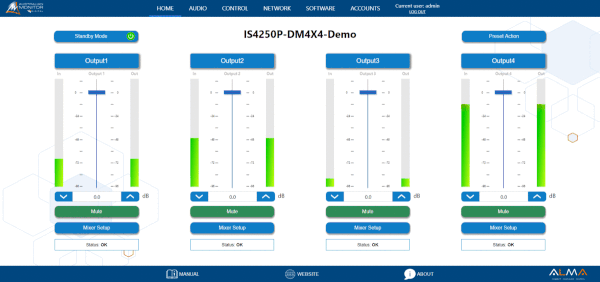

• Embedded ALMA Control Software accessible using any HTML5 web browser
• Full DSP - Input Matrix, Filters, Parametric Eq, Compressor / limiter, Delay, Mute, Inversion
• 4 software configurable general purposes input/outputs
• ErP(1275/2008/EC) Low Power Standby (<2W)

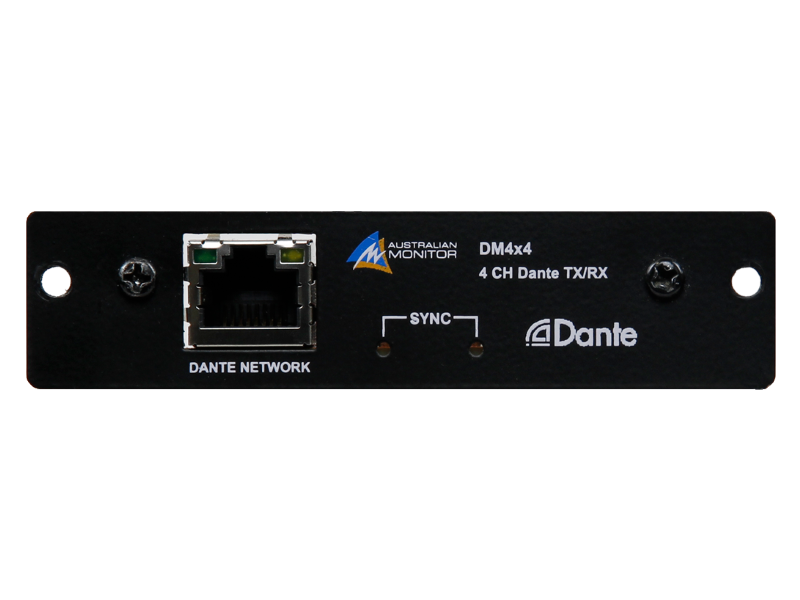

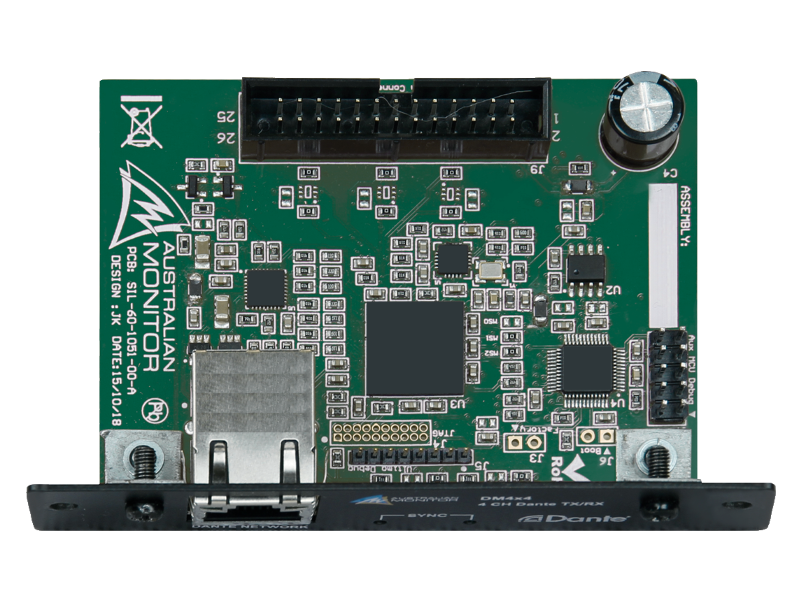

• 4 Input, 4 Output Dante® support using expansion card DM4x4

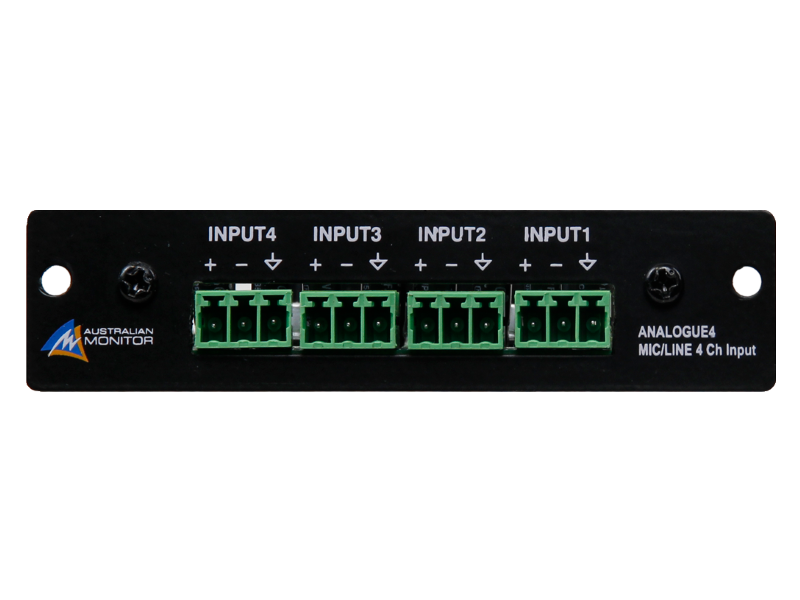

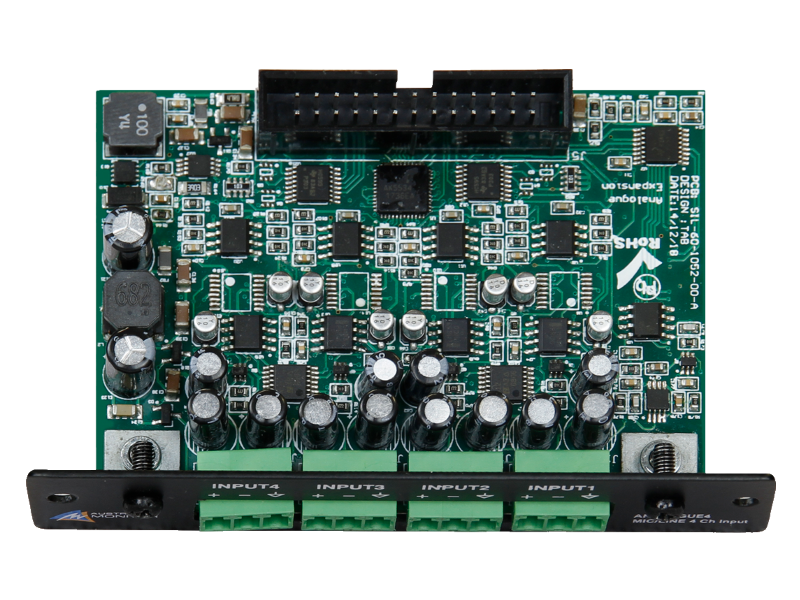

• Additional 4 Analogue line inputs using expansion card ANALOGUE4
-
Output Power per Channel 250W Frequency Response 75Hz - 16kHz Output Channels 2 THD+N < 0.02% (-3dB) Output Mode 4 Ohm-70V-100V Signal to Noise Ratio > 100dB Input Voltage 100-240Vac 50-60Hz Input Sensitivity 1Vrms Mounting 1RU Cooling Fan-assisted Warranty 5 years Product Dimensions
(W x D x H)483mm x 325mm x 44.5mm Shipping Dimensions
(W x D x H)525mm x 425mm x 120mm Net Weight 9.0 Kg Shipping Weight 11.2 Kg GTIN EAN 9323383019980
