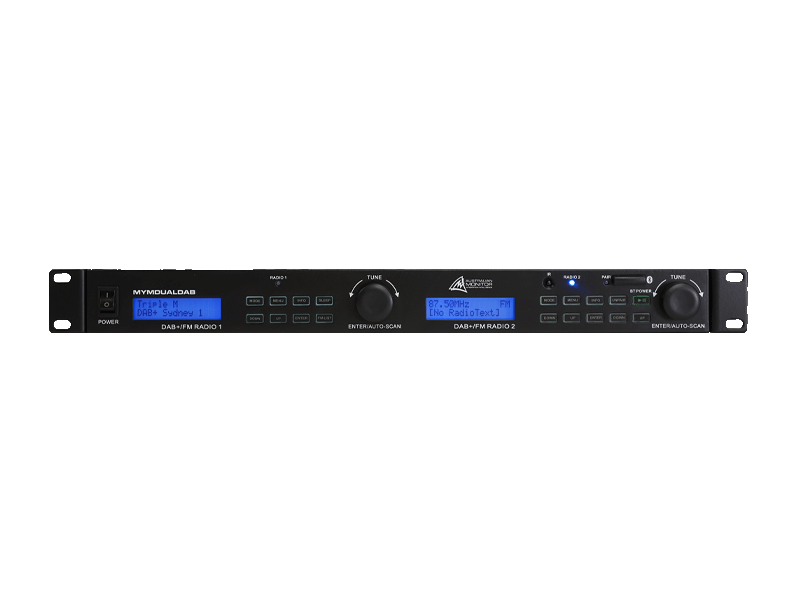

MYMDUALDAB Front

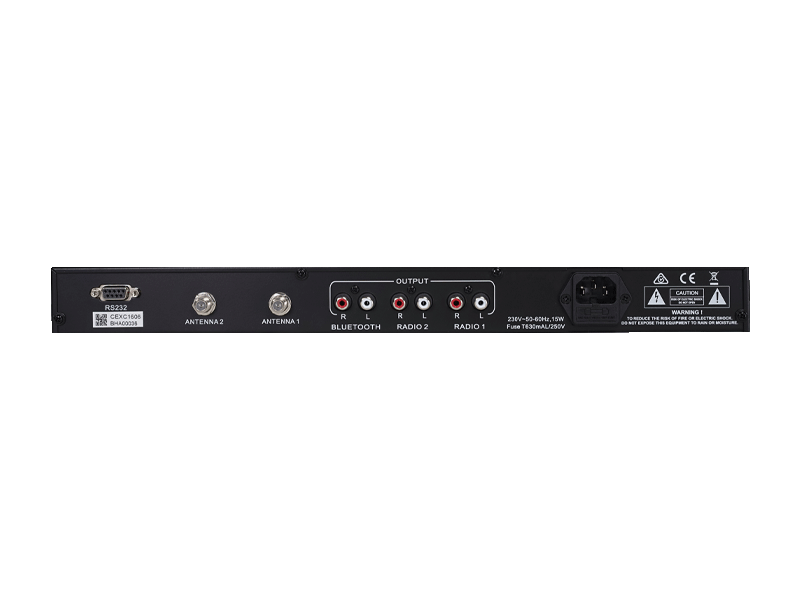

MYMDUALDAB Rear

MYMDUALDAB

Dual DAB+/FM Tuner Source
Bluetooth support

The MYMDUALDAB is a 1RU program source combining two programmable DAB+ / FM tuners and Bluetooth Module.

The product contains a discrete stereo output for both Radio outputs and the Bluetooth.

The MYMDUALDAB can be controlled via IR or the RS-232 serial port for comprehensive third party control.

Quantity must be 1 or more

  • • 1RU dual program source
    • Dual DAB+ / FM tuners
    • Bluetooth audio receiver
    • Discrete stereo outputs for each module
    • IR control
    • RS-232 control
  • Output Channels 2 DAB+ / 1 Bluetooth Frequency Response 20Hz - 20kHz
    Audio Formats MP2/MP3/WAV/WMA THD+N < 0.2%
    Input Voltage 230Vac 50-60Hz Signal to Noise Ratio DAB > 50dB - Bluetooth > 60dB
    Mounting 1RU FM Frequencies 87.5 - 108 MHz
    Warranty 5 years DAB+ Frequencies 174.928 - 239.2 MHz
    Product Dimensions
    (W x D x H)    		 482mm x 185mm x 44mm Shipping Dimensions
    (W x D x H)    		 550mm x 310mm x 110mm
    Net Weight 3.35 Kg Shipping Weight 3.2 Kg
    GTIN EAN 9323383019294
  • ​ ATC7070
     Signal Lead - Dual RCA Jacks to Dual RCA Jacks (10ft - 3m)

  • MYMDUALDAB Brochure

    MYMDUALDAB Manual

    MYM Serial Trigger Application
